5.4.2 Drawbar Hitch “Towing yoke”

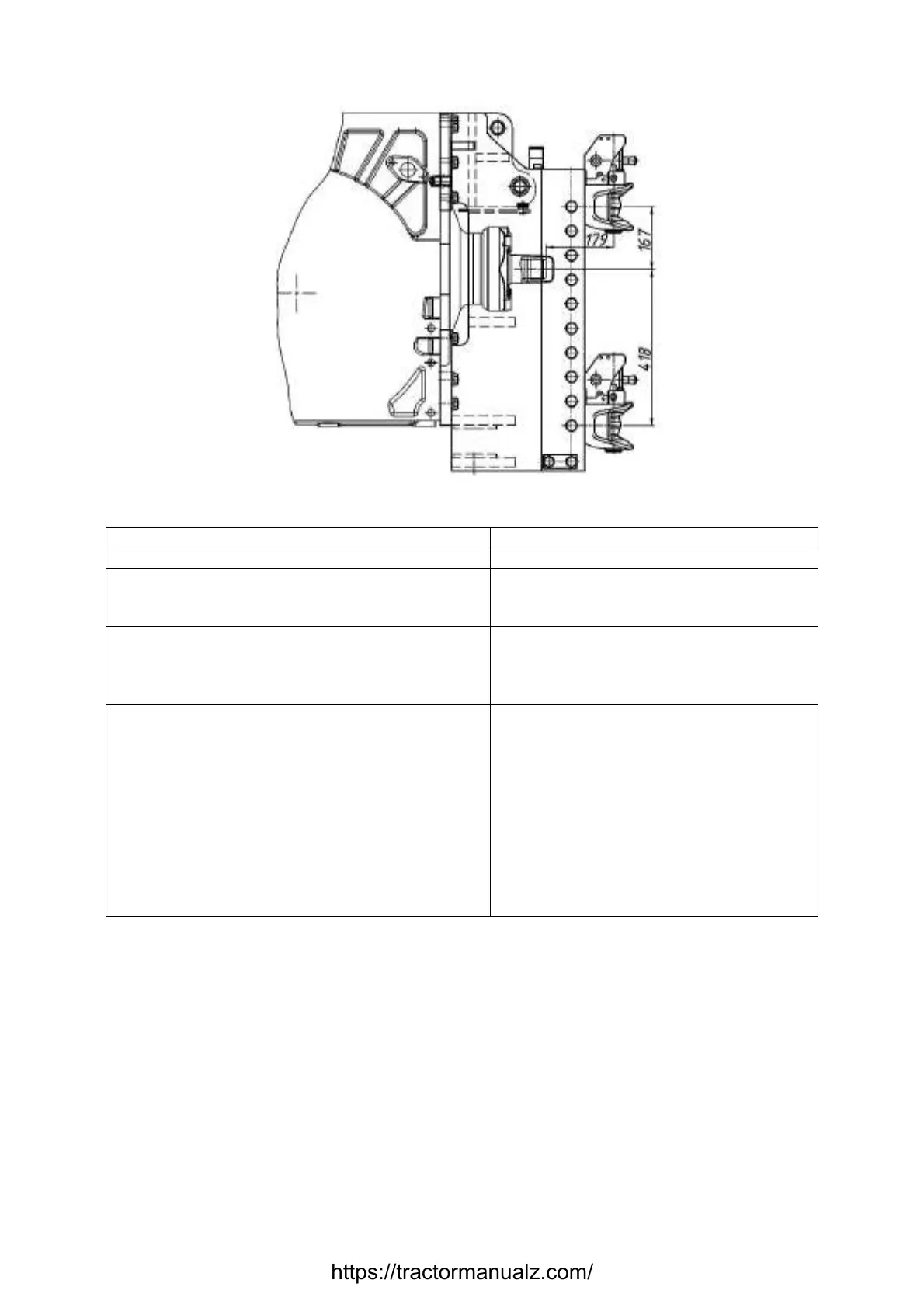

Figure 5.4.1 – Installation variants scheme of “Towing yoke”
Table 5.3 – Basic parameters и coupling dimensions of “Towing yoke”
Standard size (configuration) of the device
“Towing yoke”
1 Mounting location Rear lifting device
2 Design features Towing yoke is rotational, located on lift-
ing device, up/down modifiabl
e, with
coupling automation
3 Purpose For connection and coupling of trailed
,
semitrailed implements with traveling
wheels including of tractor semitrailer
type
4 Trailing appliance for connection to DH:
а) type Rigid, with tractor drawbar clevis
b) vertical load in hitch point, kN,
not more
than
20
c) trailing appliance steering angle in hori-
zontal plane, degrees, not less than
±65
d) protective mean type Safety chain (rope)
1)
e) connection point of protective mean
of
tractor
Lifting device bore
_________________________________________________________________________________________________
1)
Implement accessories.
