Belarus 3522.5 User Manual

3522.5-0000010 РЭ
203

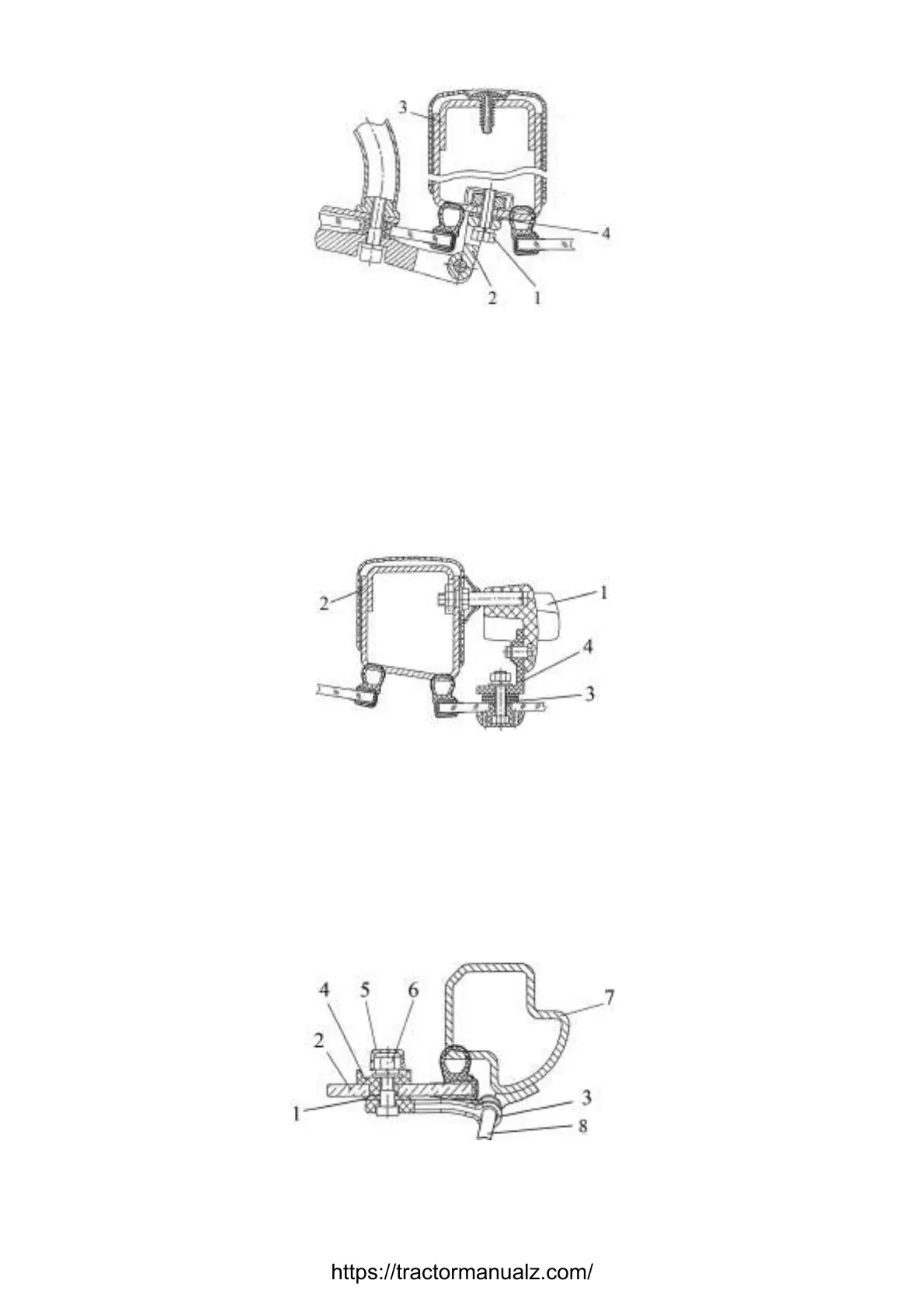

1 - bolt; 2 – hinge; 3 – center support of cab frame; 4 – plane.
Figure 3.25.5 – Door fastening to cab frame
If necessary, the equal adjointing of the door to the door aperture can be achieved
by installation of additional plates 4 (figure 3.25.5) between center support 3 of the cab
and hinges 2.
3.25.4 Side windows
The side windows are opening, frameless windows, the windows are hinged to cab frame.
The window in open and closed condition is fixed by handle 1 (figure 3.25.6).
If necessary the equal adjointing of side window to the window apperture is ensured
by installation of additional washers 3 between window and bracket 4 of window clamper.
1 – handle; 2 – center support of cab frame; 3 – washers; 4 – bracket.
Figure 3.25.6 – Fixation of side window
For side window position adjustment the following shall be done:
- take off cap 5 (figure 3.25.7);
- loosen the nut 6;
- turning eccentric bushing 4 find necessary window position (between side glass
contour and window apperture contour should be minimum positive allowance of
2mm), tighten nut 6, put cap 5.
- for equal adjointing of side window to window apperture change quantity of wash-
ers 1, installed between glass 2 and hinge 3.
1 – washer; 2 – glass; 3 – hinge; 4 – eccentric bushing; 5 – cap; 6 – nut, 7 – rear
support of cab frame; 8 – fixation pin.
Figure 3.25.7 – Side window adjustment
