Pressing the cut-out button 5 activates the rear screen wiper or the wiper and the
washer of the rear screen simultaneously.
The cut-out button 5 has three positions:
- position “I” – “off”;
- position “II” – “rear screen wiper is on” – fixed position;
- position “III” – “rear screen wiper and rear screen wiper are on simultaneously –
non-fixed.
During tractor operation on forward motion the cut-out switch 8 (fig. 2.1.1) shall be
in “on” position (i.e. in upper position). Rules for rear screen wiper control when working on
a reverse motion are given in subsection 2.23 “Reverse post controls” of this manual.
Pressing the cut-out button 6 (fig. 2.3.1) activates “Road-train” signal lights and an
indicating lamp, built in the button (the “Road-train” lights are installed against order).

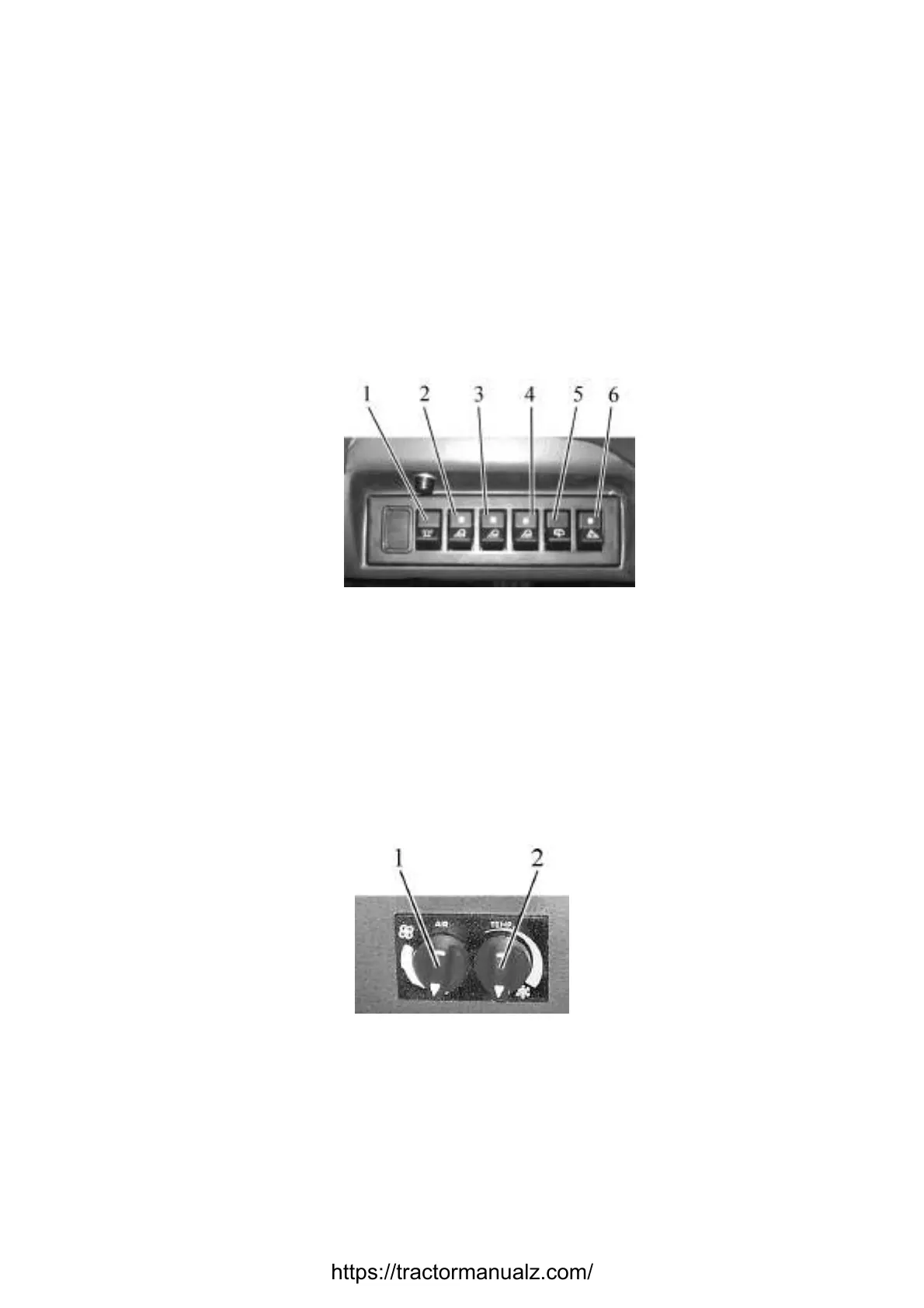

1 – flash beacon cut-out button; 2 – cut-out button of front working lights, mounted on
the cab roof; 3 – cut-out button of rear inner working lights; 4 – cut-out button of rear outer
working lights; 5 – cut-out button for rear screen wiper and washer; 6 – cut-out button of
“Road-train” signal lights.
Figure 2.3.1 – Upper shield unit of button switches
2.4 Conditioner control
2.4.1 Conditioner control in conditioning mode
The conditioner control unit 4 (figure 2.1.1) has switches 1 and 2 (figure 2.4.1).
1 – Switch for air flow adjustment;
2 – Conditioner cut-out switch and cooling capacity adjustment;
Figure 2.4.1 – Conditioner control unit
With the help of the switch 1 you can change air flow by changing fan speed. The
switch 2 allows to change temperature of cold and dry air coming out from deflectors 6 (fig.
2.1.1) in the conditioning mode.
