Belarus 3522.5 User Manual

3522.5-0000010 РЭ
164
3.15 Hydrostatic Steering Control
3.15.1 General information
The hydrostatic steering control (HSC) is intended for control of guide wheels turn,
for steering effort decrease at tractor turning. HSC consists of two dosing pumps 2 and 3
(figure 3.15.1), of reverse valve switch 4, of two differential hydraulic cylinders 1, making
turning, of feed pump 5 with motor drive and of hydraulic fittings.

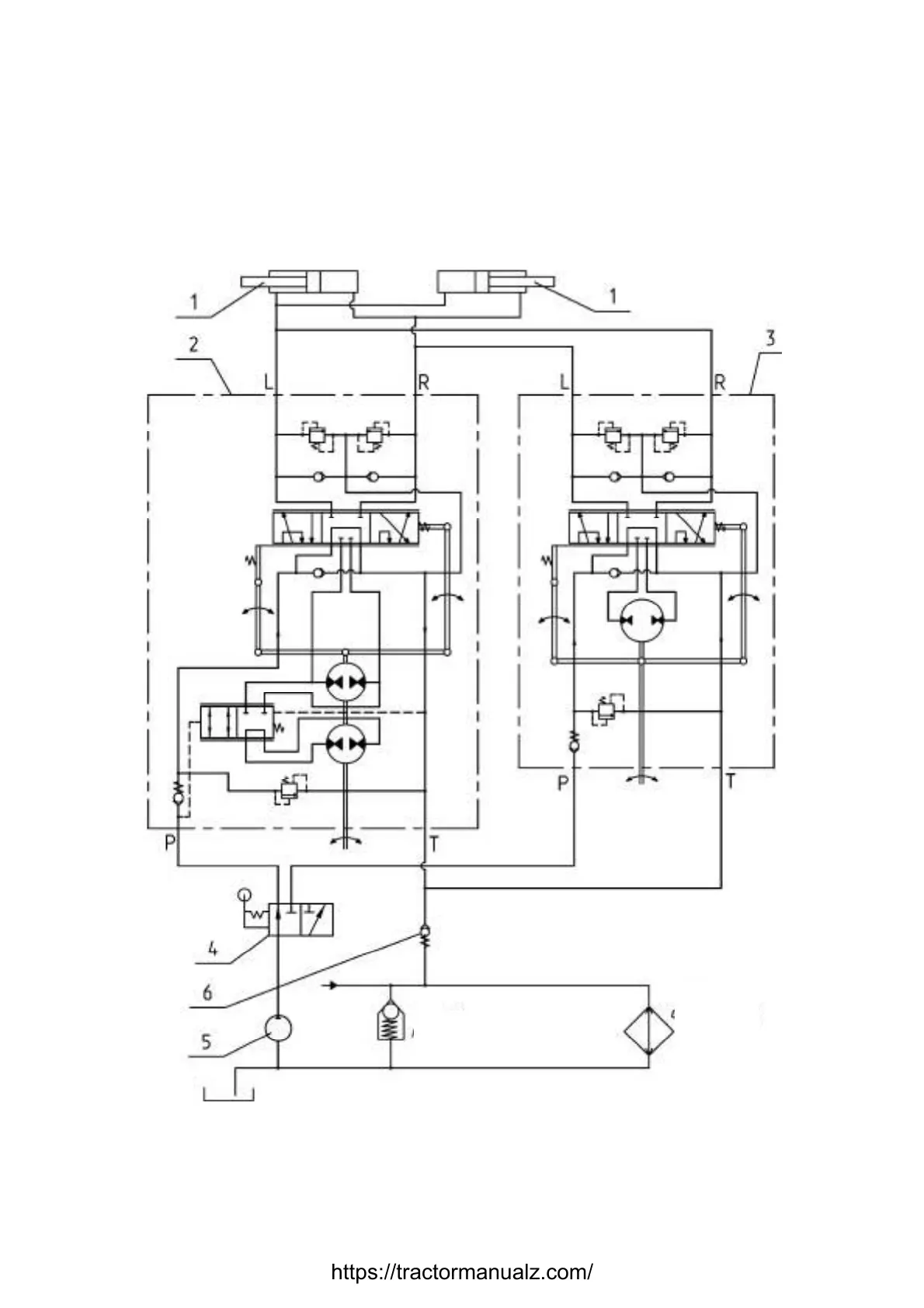

Hydraulic circuit diagram of HSC is shown in figure 3.15.1.
1 – hydraulic cylinder; 2 – dosing pump of forward motion;; 3 – dosing pump of re-
verse motion; 4 – reverse valve switch; 5 – feed pump; 6 – valve; Р – feeding; Т – drain; L
–left-hand turn; R – right-hand turn.
Figure 3.15.1 – HSC hydraulic circuit diagram
Protective valve
Integrated oil tank of HLL and HSC
Drain from
HLL
Oil coo
l
ing
radiator
