3.23.4.2 Installation of rear PTO RPM sensor
For installation of rear PTO RPM sensor the following shall be done:
- put follower gear of PTO1 reduction unit (figure 3.23.5) with a tooth against the
hole in rear axle housing 7;
- it is necessary to measure length H1 and to put necessary quantity of shim wash-
ers 2 according to the table 3.7 to ensure free play S1;
- put “mass” wire 3 of the sensor 4 under any of screws 6;
- seal the screws 6 with sealing paste and tighten with moment 10…15 Nm.

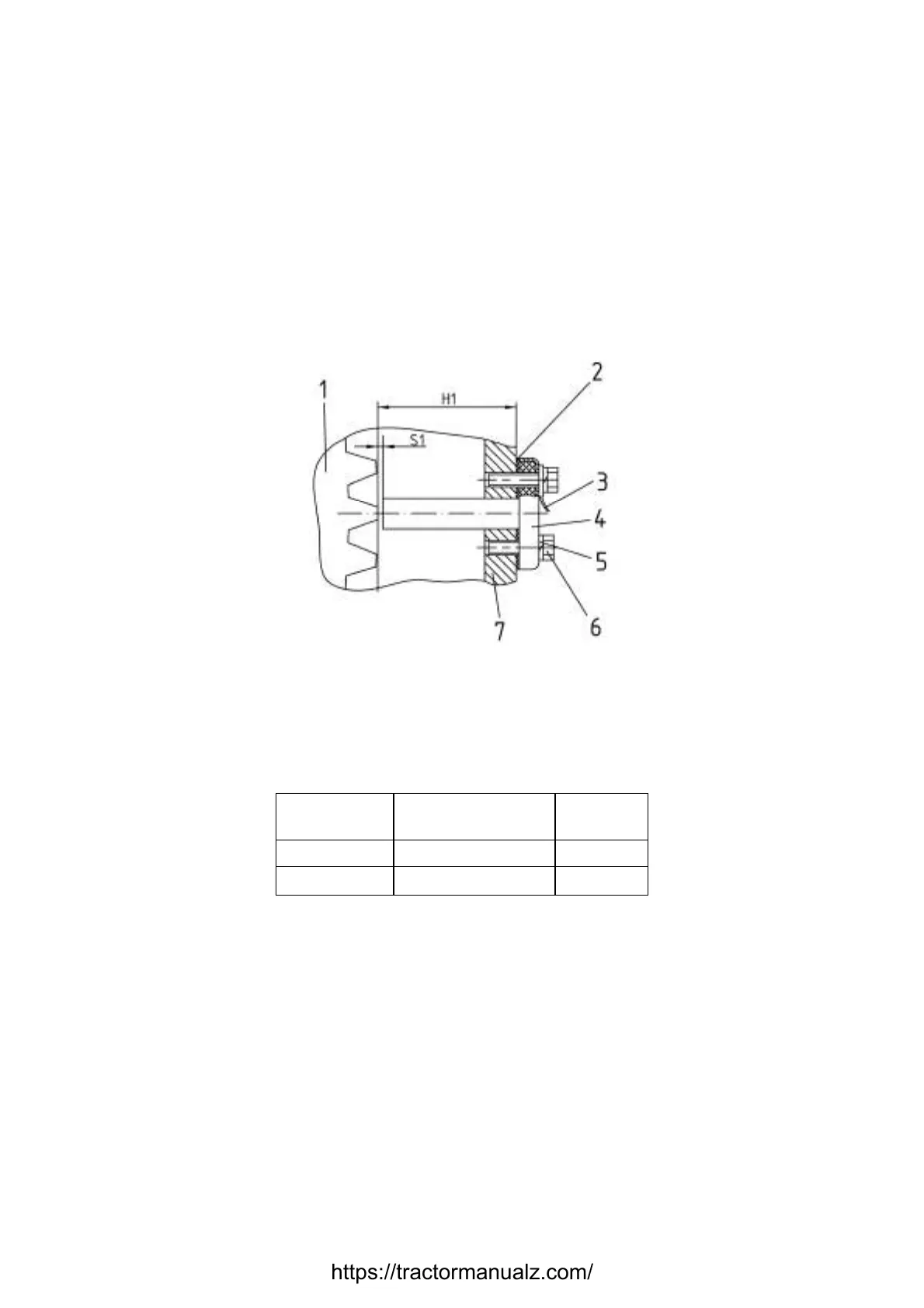

1 – follower gear of PTO reduction unit; 2 – shim washer in thickness of 1mm; 3 –
¨mass¨ wire; 4 – PTO RPM sensor; 5 – washer; 6 – screw М8; 7 – rear axle housing.
Figure 3.23.5 – Installation of rear PTO RPM sensor
Table 3.7 – Installation of rear PTO RPM sensor
Н1, mm
Q-ty of washers 2
(figure 3.23.5)
S1, мм
67,0 – 67,8 2 2 – 2,8
67,9 – 68,36 1 1,9 – 2,36
