Belarus 3522.5 User Manual

3522.5-0000010 РЭ
187

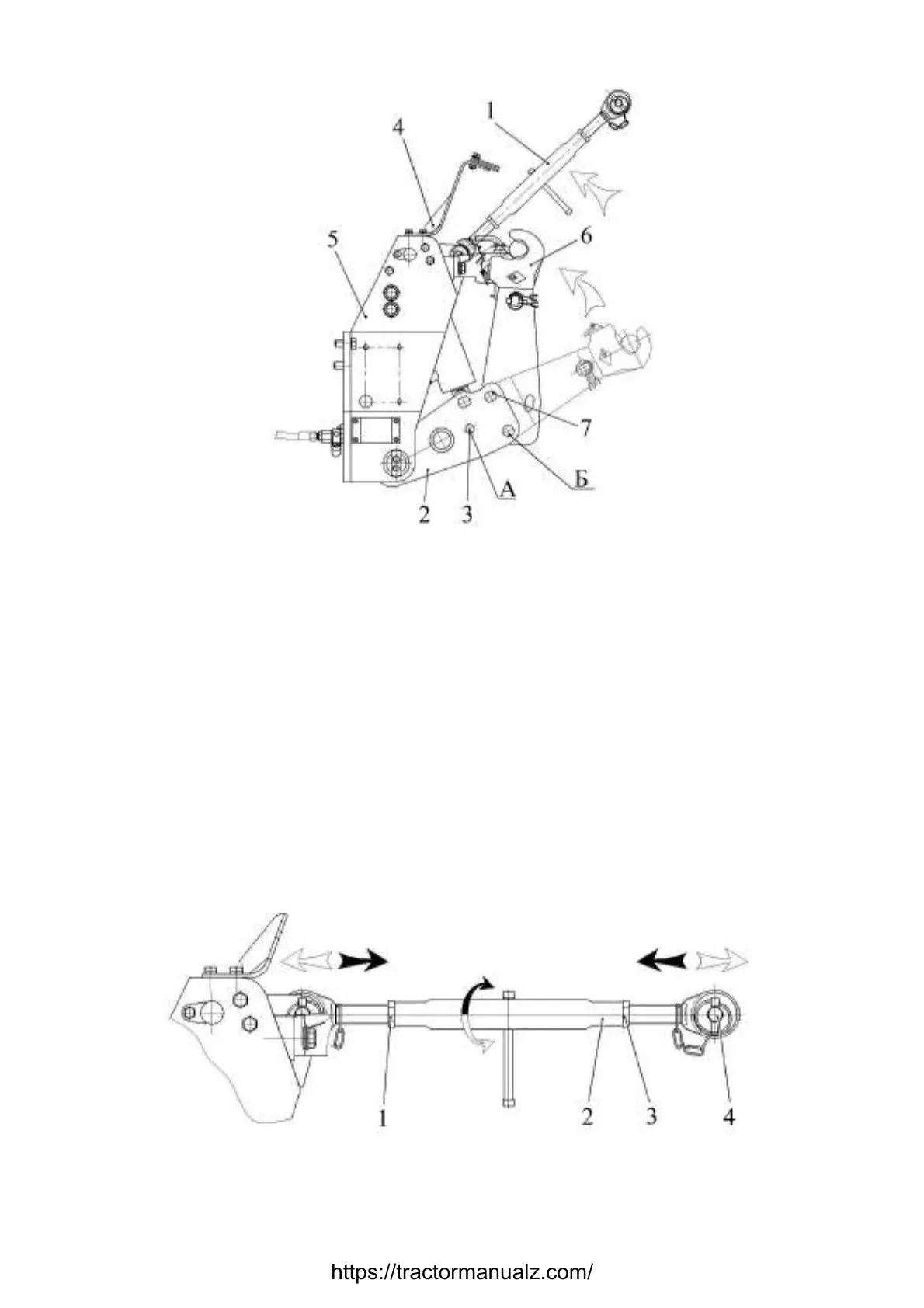

1 – top link; 2 – draft links unit; 3 – pin; 4 – bracket; 5 – bracket; 6 – rod; 7 – pin; 8 –
plate.
Figure 3.20.2 – FLL transport position
3.20.3 The rules to couple the agricultural machines with FLL
The coupling of agricultural machines with FLL is the same as for RLL.
The pivot joints of lift linkage draft links should be placed on lower axle of agricul-
tural machine then drive slowly to the machine with max. lowered draft links clips till the
jaw of the clip is situated under the pivot joints on axle of the machine. For coupling it is
necessary to lift up front ends of rods until pivot joints are fixed in draft links clips. Install
cotter key 9 (figure 3.20.1).
Attach top link 6 (figure 3.20.1) by pin 4 (figure 3.20.3) to the agricultural machine,
lengthening or shortening at the same time screw parts with pivot joints, loose previously
locking nuts 1 and 3. Further adjustment of machine operating position make with coupled
machine at the expense of length change of top link 6 turning tube 2 (figure 3.20.3) with a
help of handle. Tighten the locking nuts 1 and 3.
1 – tube; 2 – pin; 3, 4 – locking nut.
Figure 3.20.3 – FLL top link
