3.19 Electronic control system of rear lift linkage

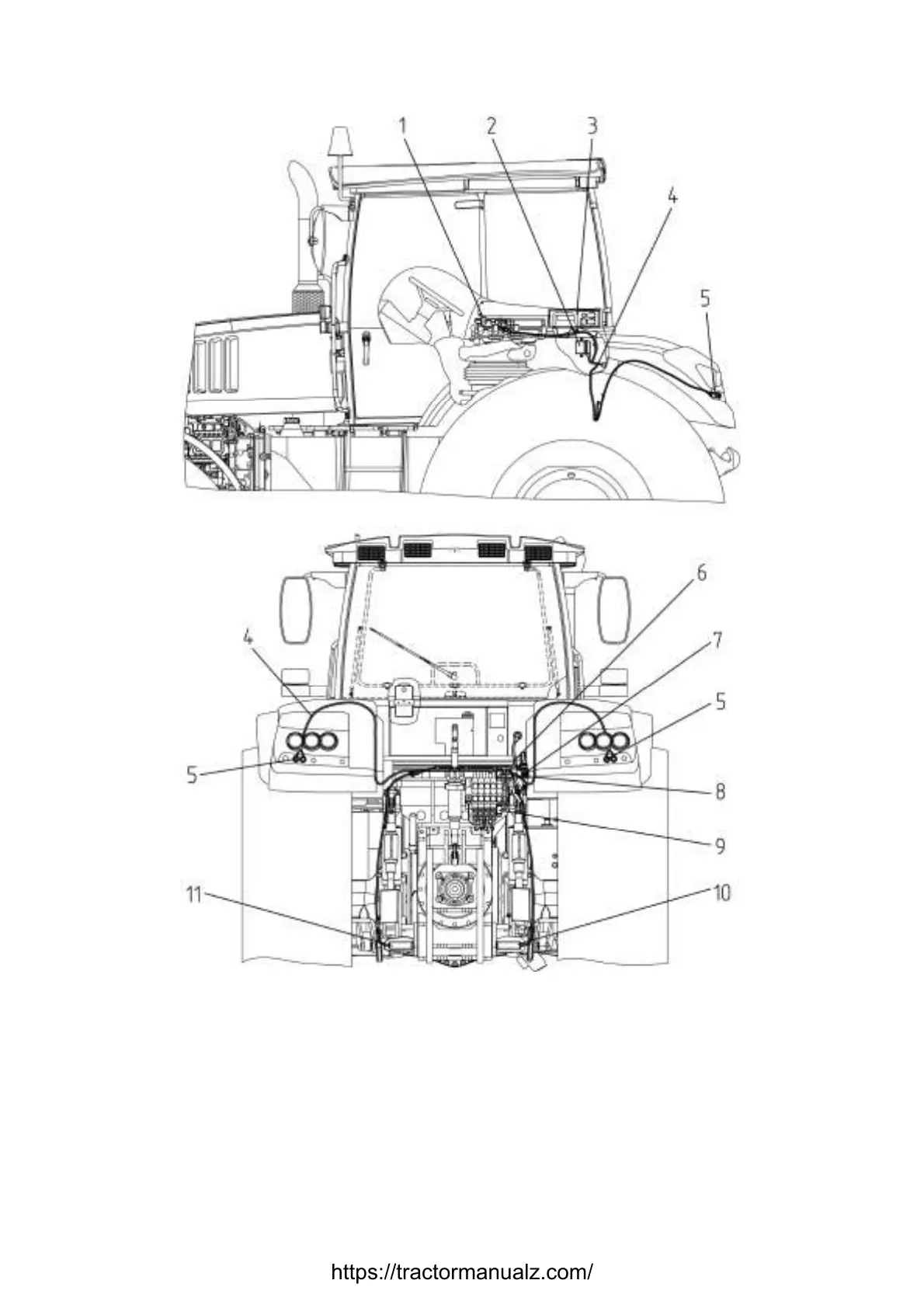

1 – RLL control unit; 2 – electronic control unit; 3 – safety device of RLL ECS in pro-
tection and switching unit (PASU); 4 –cabin harness; 5 – remote buttons; 6 – transmission
harness; 7 – position sensor; 8 – electromagnet of lowering; 9 – electromagnet of uplift; 10
– right force sensor; 11 – left force sensor.
Figure 3.19.1 – Arrangement diagram of RLL electronic control system components
