2.21.3 Seat installation for operation on reverse

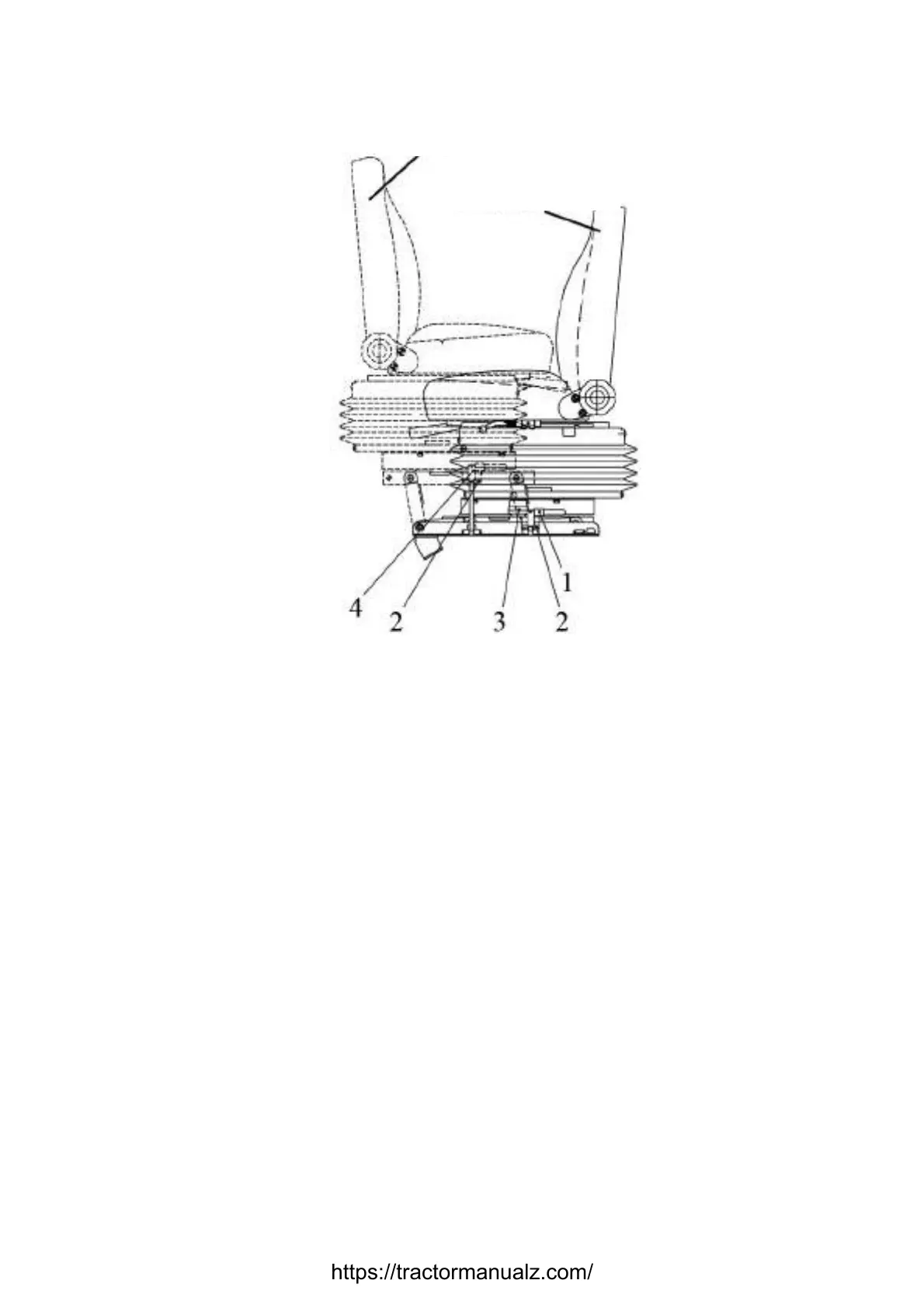

1 – clamp; 2 – jaw; 3 – handle; 4 – clamp.
Figure 2.21.2 – Seat installation for operation on reverse
Seat installation for operation on reverse is carried out in the following order:
- release clamps 1 (figure 2.21.2) and take them aside, exempting jaws 2 of the up-
per base of the uplift mechanism;
- pulling a handle 3 up, unlatch the rotation mechanism and rotate the seat by 180°;
- applying force up and forward, move the seat to the extreme position against the
stop;
- carry clamps 4 into the jaws 2 and screw them in against the stop;
The seat installation for operation on forward motion is carried out in a reverse or-
der.
Seat adjustments on reverse are carried out in the same way as on forward motion.
on reverse
on forward motion
