Belarus 3522.5 User Manual

3522.5-0000010 РЭ
205
3.25.6 Outside mirror

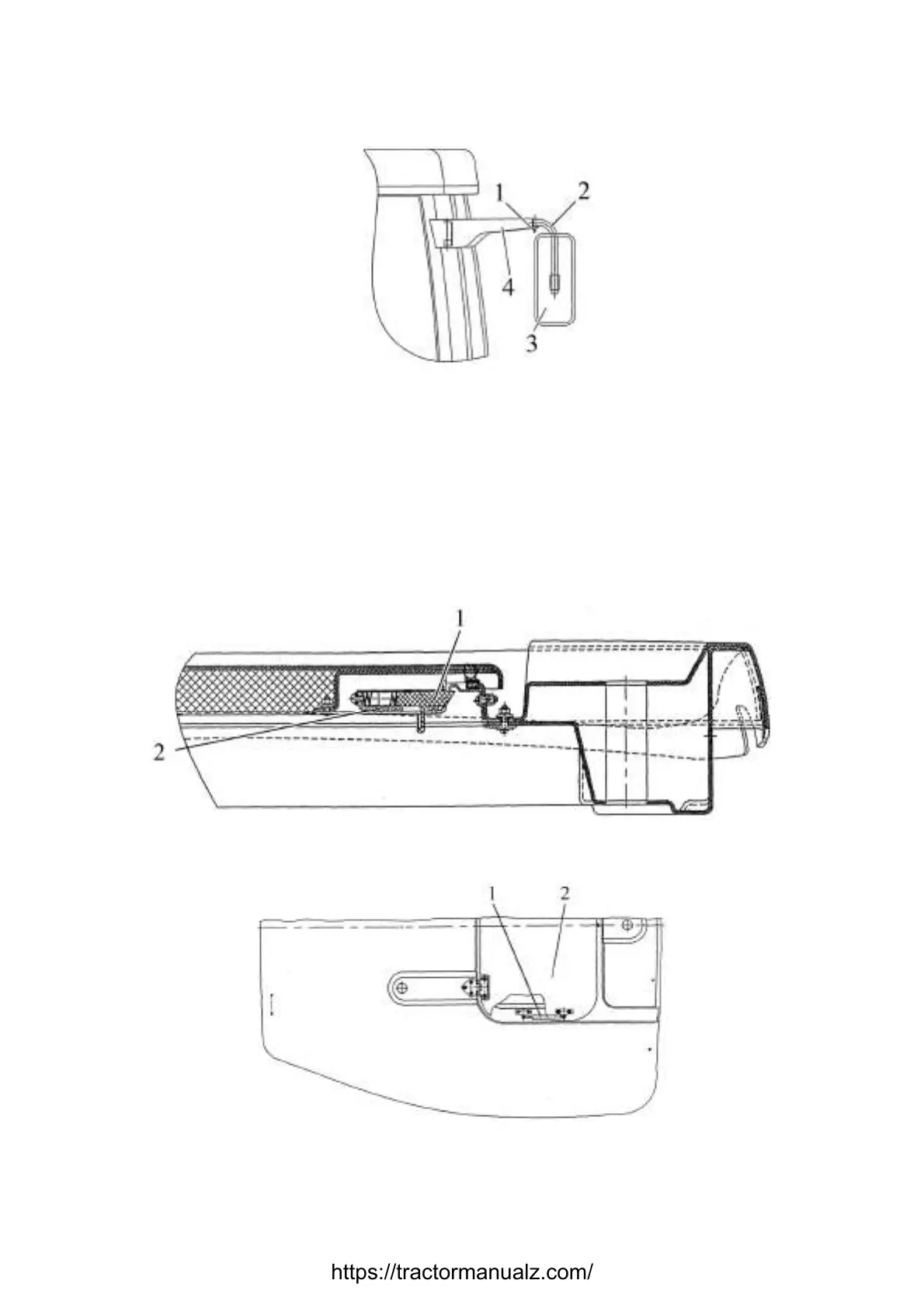

For position adjustment of mirror 3 (figure 3.25.10) in horizontal plane it is neces-
sary to loosen bolt 1, to put forward the tube 2 for necessary length and tighten bolt 1.
1 – bolt; 2 – tube; 3 – mirror; 4 – bracket.
Figure 3.25.10 – Mirror position adjustment in horizontal plane
By turning bracket 4 (figure 3.25.10) is adjusted mirror 3 rotation angle in horizontal
plane. Turning mirror body the other mirror positions can be achieved (left –right, down-
up)
3.25.7 Roof with opening hatch
Tere are two modifications of the roof:
In first modification:
- the hatch in closed position is fixed with detent 1 (figure 3.25.11) of panel 2;
- the hatch in open position is fixed by pneumatic lifts 1 (figure 3.25.12).
1 – detent; 2 – panel.
Figure 3.25.11 – Roof hatch fixation (first modification) in closed position
1 – pneumatic lift; 2 – hatch.
Figure 3.25.12 – Roof hatch fixation (first modification) in open position
