Belarus 3522.5 User Manual

3522.5-0000010 РЭ
204
3.25.5 Rear window
The rear window is opening window, which is hinged to cabin frame. The rear win-
dow in closed position is fixed by lock 1 (figure 3.25.9), in open position is fixed by two
pneumatic lifts.
For rear window position adjustment the following shall be done:
- take off cap 3 (figure 3.25.8);
- loosen the nut 4;
- turning eccentric bushing 1 find necessary position of the window (between rear
window contour and window apperture contour should be minimum positive allowance of 2
mm) thighten the nut 4, put the cap 3.
- adjust the position of lock 1 (figure 3.25.9) tacking off the cover 2, loosen the bolts
3, then moving lock in horizontal plane (in axial and cross directions) acieve optimal posi-
tion relative to the pin 4, tighten the bolts 3, put cover 2.

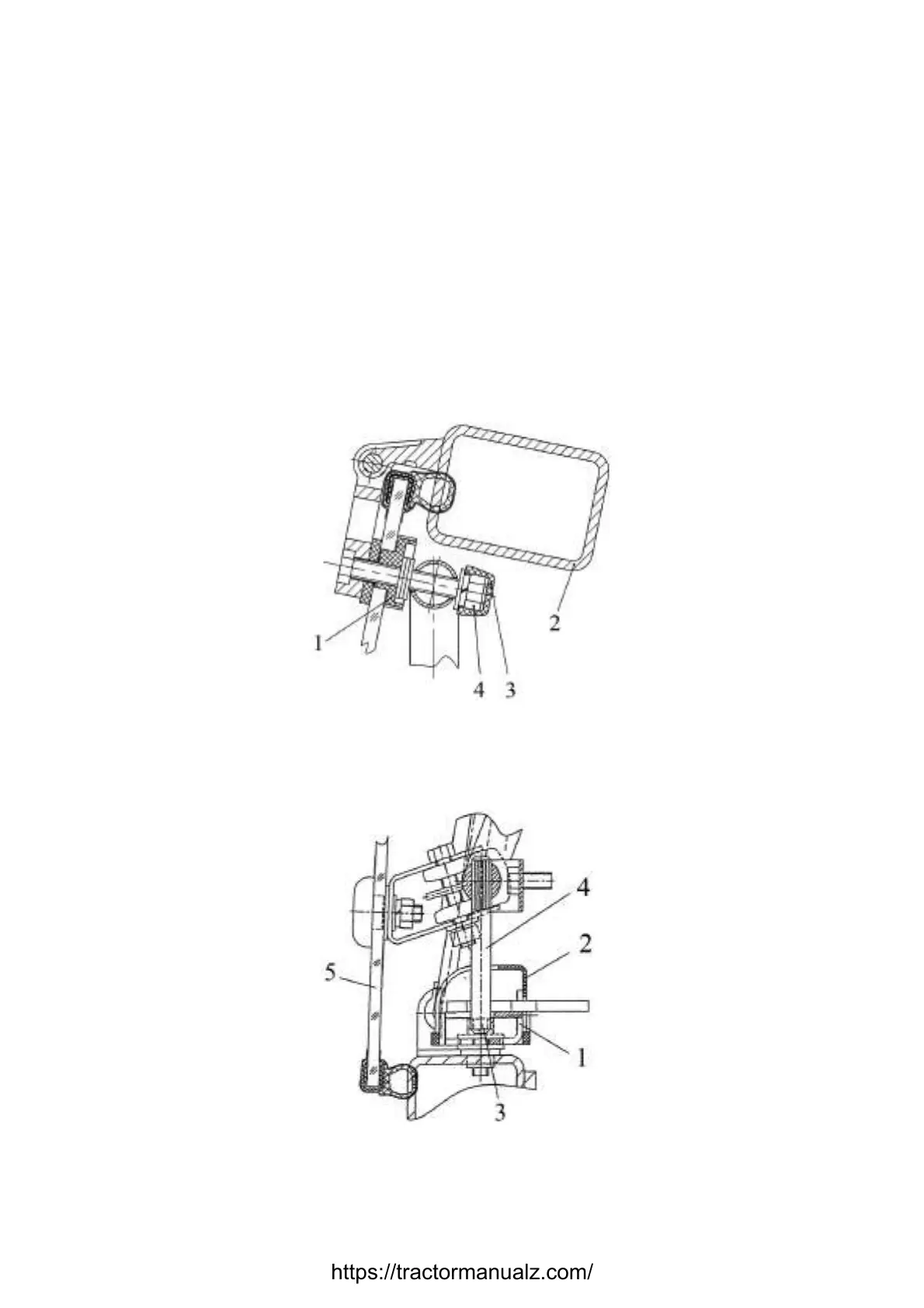

1 – eccentric bushing; 2 – rear upper intermediate member; 3 – cap; 4 –nut.
Figure 3.25.8 – Rear window adjustment
1 – lock; 2 – cover; 3 – bolt; 4 – pin; 5 – rear window.
Figure 3.25.9 – Rear window fixation
