Canon EOS 80D User Manual

40

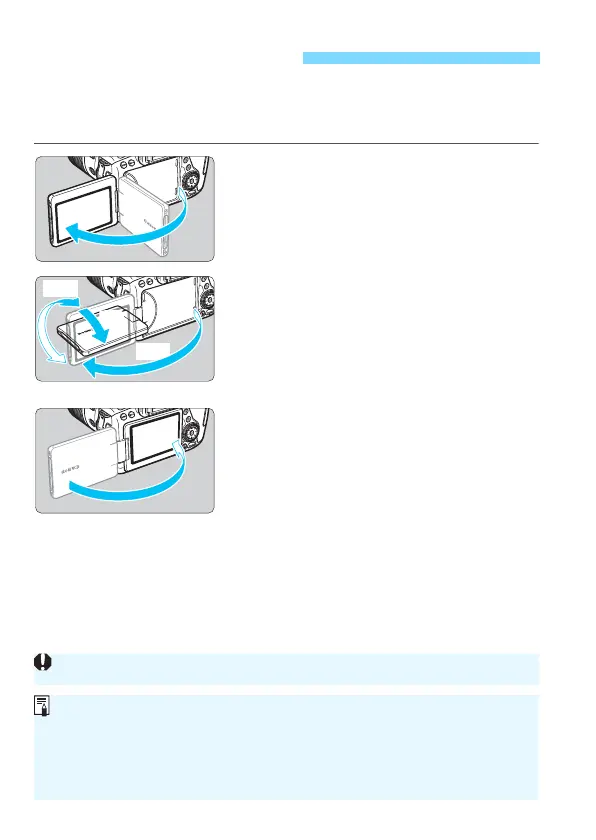

After you flip out the LCD monitor, you can set menu functions, use Live
View shooting, shoot movies, or play back images and movies. You can
change the direction and angle of the LCD monitor.
1
Flip out the LCD monitor.
2
Rotate the LCD monitor.
 When the LCD monitor is swung out,
you can rotate it up, down, or over
180° to face the subject.
 The indicated angle is only
approximate.
3
Face it toward you.
 Normally, use the camera with the
LCD monitor facing you.
Using the LCD Monitor
180°
175°
90°
Be careful not to force and break the hinge when rotating the LCD monitor.
 When not using the camera, close the LCD monitor with the screen
facing inward. This will protect the screen.
 During Live View shooting or movie shooting, facing the LCD monitor
toward the subject will display a mirror image on the screen (right/left
reversed).

Canon EOS 80D Specifications

General

Sensor	APS-C CMOS
Megapixels	24.2 MP
ISO Range	100-16000 (expandable to 25600)
Continuous Shooting Speed	7 fps
Video Resolution	1080p at 60 fps
Screen	3.0-inch Vari-angle touchscreen LCD
Connectivity	Wi-Fi, NFC
Battery Life	Approx. 960 shots (CIPA)
Camera Type	DSLR
Lens Mount	Canon EF/EF-S
Battery	LP-E6N
Weight	730 g (body only)
Dimensions	139 x 105.2 x 78.5 mm
Storage Media	SD/SDHC/SDXC card
Autofocus Points	45 points
Viewfinder	Optical pentaprism, 100% coverage
Shutter Speed	1/8000 to 30 sec
