Connecting to an External Monitor
Connecting to an External Monitor
When you connect the camcorder to an external monitor for recording or playback, use the terminal on
camcorder that matches the one you wish to use on the monitor. Then, select the video signal output
configuration (0 121). The camcorder can output video from all of the video output terminals simultaneously.

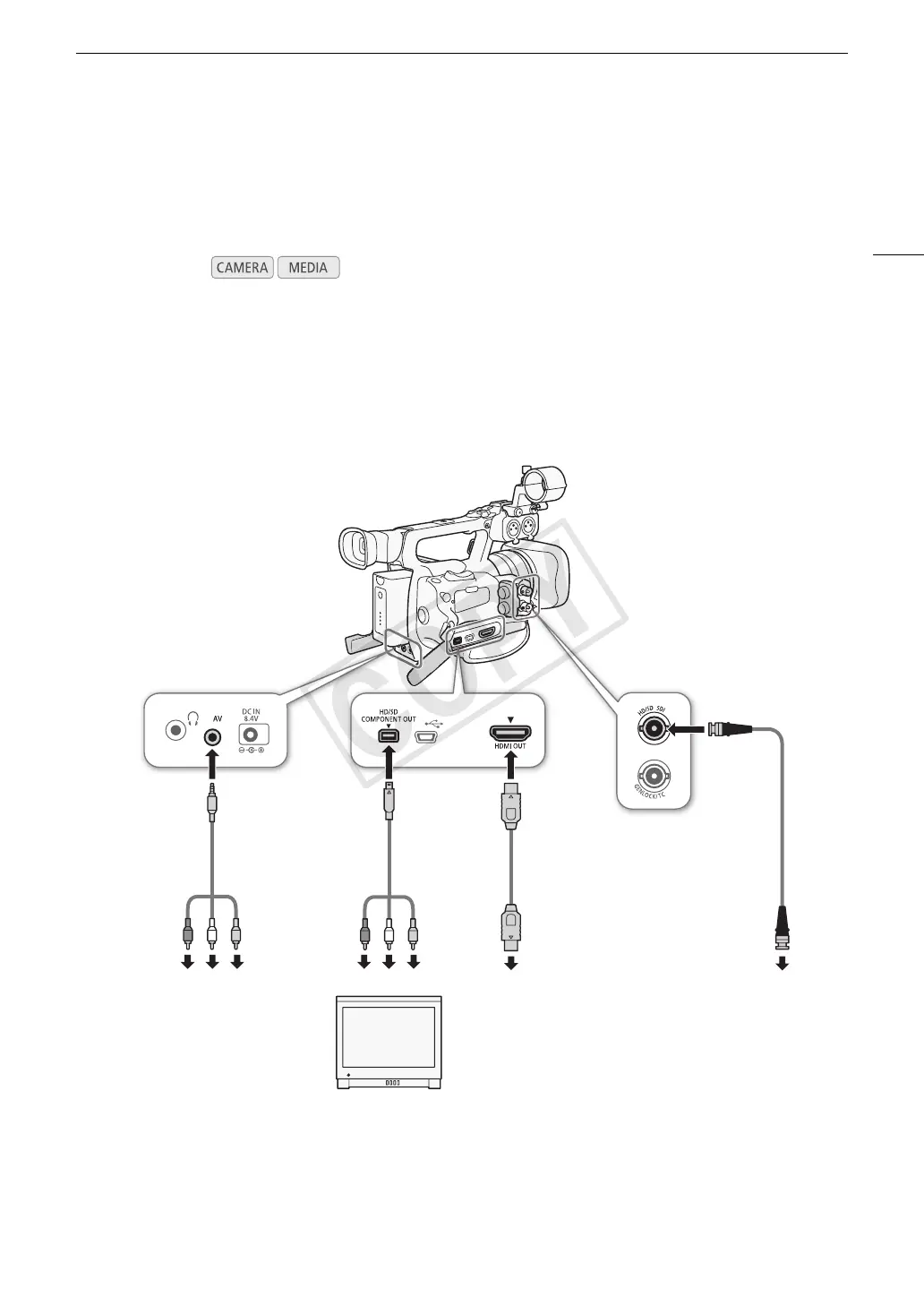

Connection Diagram
When you connect the camcorder to an external monitor using the HD/SD COMPONENT OUT terminal, audio is
output by connecting the optional STV-250N Stereo Video Cable to the monitor using the AV terminal.
We recommend that you power the camcorder from a household power outlet using the compact power adapter.
Operating modes:
STV-250N
Stereo Video
Cable (optional)
VIDEO IN/
AUDIO IN
HDMI IN
COMPONENT IN
SDI IN
CTC-100/S
Component Cable
(supplied)
HD/SD
COMPONENT
OUT terminal
BNC cable
(commercially
available)
HDMI cable
(commercially
available)
HDMI OUT
terminal
AV terminal
HD/SD SDI
terminal*
* b only
COPY

Canon XF105 Specifications

General

Sensor type	CMOS
Total megapixels	2.37 MP
Optical sensor size	1/1.3 \
Effective megapixels (image)	2.07 MP
Filter size	58 mm
Digital zoom	- x
Optical zoom	10 x
Image stabilizer	Yes
Focal length range	4.25 - 42.5 mm
Interchangeable lens	-
Image stabilizer type	Optical Image Stabilization (OIS)
Minimum aperture number	1.8
Focal length (35mm film equivalent)	30.4 - 304 mm
Memory slots	2
Camcorder media type	Memory card
Disc types supported	No
Compatible memory cards	CF, SD
Maximum memory card size	128 GB
Internal storage capacity	- GB
Focus adjustment	Auto/Manual
Closest focusing distance	0.02 m
Camera shutter speed	0.0005 s
Display diagonal	3.5 \
Display resolution (numeric)	920000 pixels
Viewfinder type	Electronic
Viewfinder screen size	0.24 \
Camcorder type	Handheld camcorder
Image processor	DIGIC DV III
Minimum illumination	4.5 lx
Product color	Black
Video resolutions	1280 x 720, 1440 x 1080, 1920 x 1080 pixels
Maximum frame rate	60 fps
Video formats supported	MXF
Maximum video resolution	1920 x 1080 pixels
Maximum image resolution	- pixels
PCM digital audio	16-bit/48 kHz
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Component video (YPbPr/YCbCr) out	1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
Battery voltage	7.4 V
Battery capacity	- mAh
Battery life (max)	- h
Video recording time	10.4 h
Operating temperature (T-T)	0 - 40 °C
Cables included	Component
Memory card included	CF
Video compression formats	MPEG2

Weight and Dimensions

Depth	250 mm
Width	121 mm
Height	148 mm
Weight	1290 g
