Recording Audio
74
Recording Audio
The camcorder features two-channel linear PCM audio recording and playback with a sampling frequency of
48 kHz. You can record audio using the built-in microphone, optional external microphone (XLR or MIC terminal)
or line input (XLR terminal). You can select the audio input independently for channel 1 and channel 2.
When using external microphone, use commercially available microphone with a cable no longer than 3 m.
Using the Built-in or External Microphone Connected to
the MIC Terminal
Follow the step below when you use the built-in microphone or an external
microphone with a ∅ 3.5 mm plug attached to the MIC terminal. You can
use the microphone attenuator for either type of microphone. If you are
using the built-in microphone, you can also use the low-cut filter and select
the sensitivity.

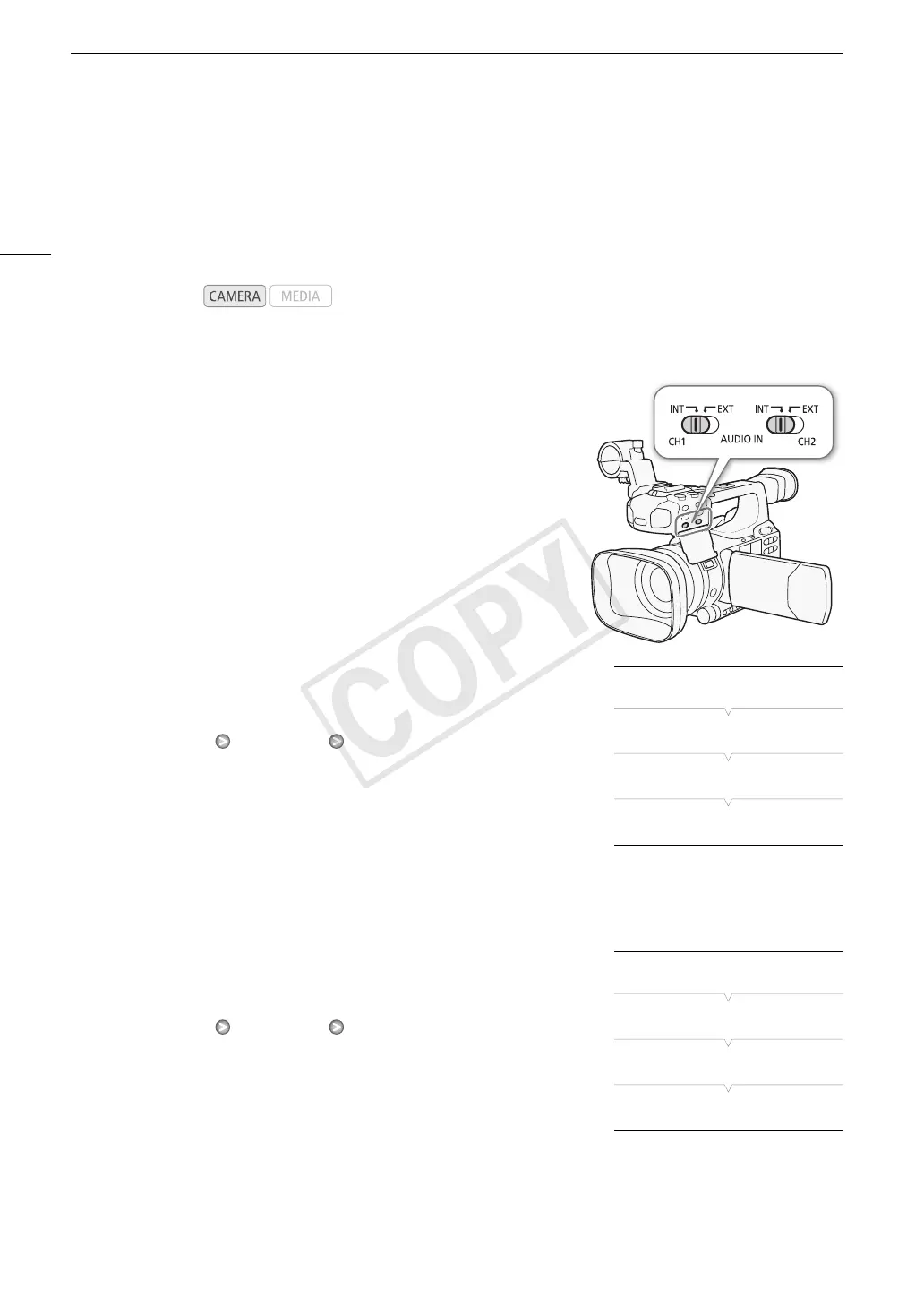

Set the AUDIO IN switch of the desired channel to INT.
• If you connect a microphone to the MIC terminal while the AUDIO IN
switch is set to INT, the camcorder will switch automatically from the
built-in microphone to the external microphone.
Configuring the Built-in Microphone's Low-Cut Filter
1 Open the [Int. Mic Low Cut] submenu.
[m Audio Setup] [Audio Input] [Int. Mic Low Cut]
2 Select the desired option and then press SET.
Options
Selecting the Built-in Microphone’s Sensitivity
1 Open the [Int. Mic Sensitivity] submenu.
[m Audio Setup] [Audio Input] [Int. Mic Sensitivity]
2 Select the desired option and then press SET.
Options
Operating modes:
[Off]: For recording audio under usual conditions.
[LC1]: For recording mainly people’s voices.
[LC2]: For reducing the background sound of wind when recording
outdoors in windy surroundings (for example, on a beach or close to
buildings). Note that when you use this setting some low-frequency
sounds may be suppressed along with the sound of wind.
[Normal]: For recording audio under usual conditions.
[High]: For recording audio at a higher volume (+6 dB).
[m Audio Setup]
[Audio Input]
[Int. Mic Low Cut]
[Off]
[m Audio Setup]
[
Audio Input]
[Int. Mic Sensitivity]
[Normal]
COPY

Canon XF105 Specifications

General

Sensor type	CMOS
Total megapixels	2.37 MP
Optical sensor size	1/1.3 \
Effective megapixels (image)	2.07 MP
Filter size	58 mm
Digital zoom	- x
Optical zoom	10 x
Image stabilizer	Yes
Focal length range	4.25 - 42.5 mm
Interchangeable lens	-
Image stabilizer type	Optical Image Stabilization (OIS)
Minimum aperture number	1.8
Focal length (35mm film equivalent)	30.4 - 304 mm
Memory slots	2
Camcorder media type	Memory card
Disc types supported	No
Compatible memory cards	CF, SD
Maximum memory card size	128 GB
Internal storage capacity	- GB
Focus adjustment	Auto/Manual
Closest focusing distance	0.02 m
Camera shutter speed	0.0005 s
Display diagonal	3.5 \
Display resolution (numeric)	920000 pixels
Viewfinder type	Electronic
Viewfinder screen size	0.24 \
Camcorder type	Handheld camcorder
Image processor	DIGIC DV III
Minimum illumination	4.5 lx
Product color	Black
Video resolutions	1280 x 720, 1440 x 1080, 1920 x 1080 pixels
Maximum frame rate	60 fps
Video formats supported	MXF
Maximum video resolution	1920 x 1080 pixels
Maximum image resolution	- pixels
PCM digital audio	16-bit/48 kHz
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Component video (YPbPr/YCbCr) out	1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
Battery voltage	7.4 V
Battery capacity	- mAh
Battery life (max)	- h
Video recording time	10.4 h
Operating temperature (T-T)	0 - 40 °C
Cables included	Component
Memory card included	CF
Video compression formats	MPEG2

Weight and Dimensions

Depth	250 mm
Width	121 mm
Height	148 mm
Weight	1290 g
