Onscreen Markers and Zebra Patterns
68
Options
NOTES
• If you set an assignable button to [Markers] (0 94), you can press the button to activate or deactivate the
onscreen markers.

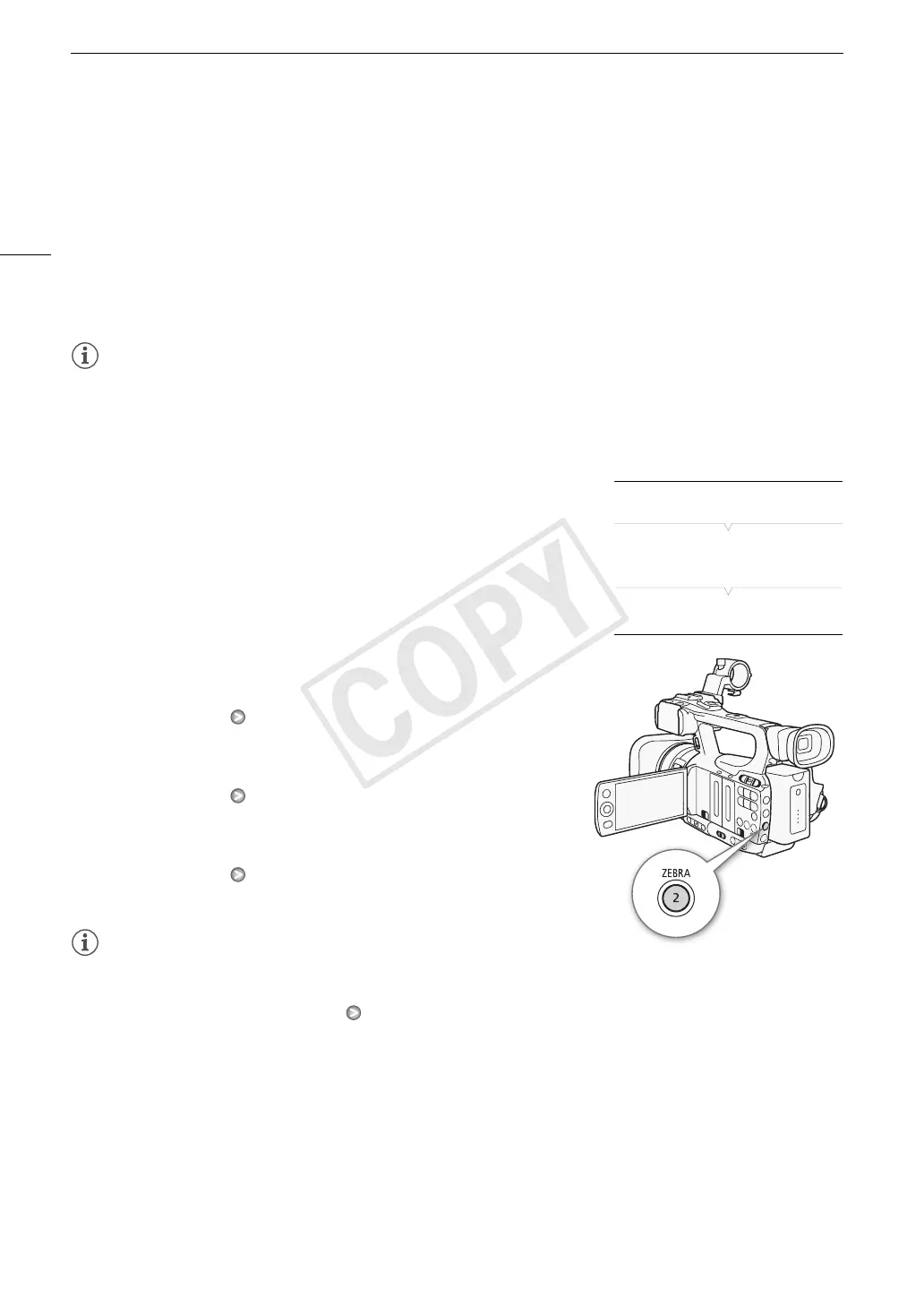

Displaying Zebra Patterns
This camcorder has a zebra pattern feature that shows black and white
diagonal stripes over areas that are overexposed. This is displayed only
on the screen and will not affect your recordings. There are two types of
zebra patterns and you can display both simultaneously. Zebra 1 lets you
identify areas within a certain range (±5 of a specified level) while zebra 2
lets you identify areas that are over a specified level. When you display
both simultaneously and they overlap, only zebra 1 will be displayed in
those areas.
1 Open the zebra pattern [Select] submenu.
[M LCD/VF Setup] [Select] (under [Zebra])
2 Select [Zebra 1], [Zebra 2] or [Zebra 1&2] and then press SET.
3 Open the zebra level submenu.
[M LCD/VF Setup] [Zebra 1 Level] or [Zebra 2 Level]
4 Select a zebra level and then press SET.
5 Open the [Zebra] submenu.
[M LCD/VF Setup] [Zebra]
6 Select [On] to activate the selected zebra pattern.
NOTES
• If you set an assignable button to [Zebra] (0 94), you can press the button to activate the selected zebra
pattern.
• You can use the [M LCD/VF Setup] [HD Output] setting (0 146) to display the zebra pattern on an
external monitor connected to the HD/SD SDI terminal (b only), HDMI OUT terminal or HD/SD
COMPONENT OUT terminal (HD output only).
• When the HD/SD COMPONENT OUT terminal is set to output a standard definition signal, the output will
switch to a high definition signal while the zebra pattern is displayed if you set [HD Output] to [On].
• Zebra patterns will not appear in the viewfinder if you select [Zebra 1&2].
[Center]: Displays a small marker that indicates the center of the screen.
[Horizontal]: Displays a horizontal line to help you compose level shots.
[Grid]: Displays a grid that allows you to frame your shots correctly (horizontally and vertically).
[Safety Zone]: Displays indicators that show various safe areas, such as the action safe area and text safe area.
Available options for [Safety Zone Area] are [95%], [92.5%], [90%] and [80%].
[Aspect Marker]: Displays markers that indicate various aspect ratios to help you keep your shot within that area.
Available options for [Aspect Ratio] are [2.35:1], [1.85:1], [1.75:1], [1.66:1], [14:9], [13:9] and [4:3].
[M LCD/VF Setup]
[Select]
(under [Zebra])
[Zebra 1]
