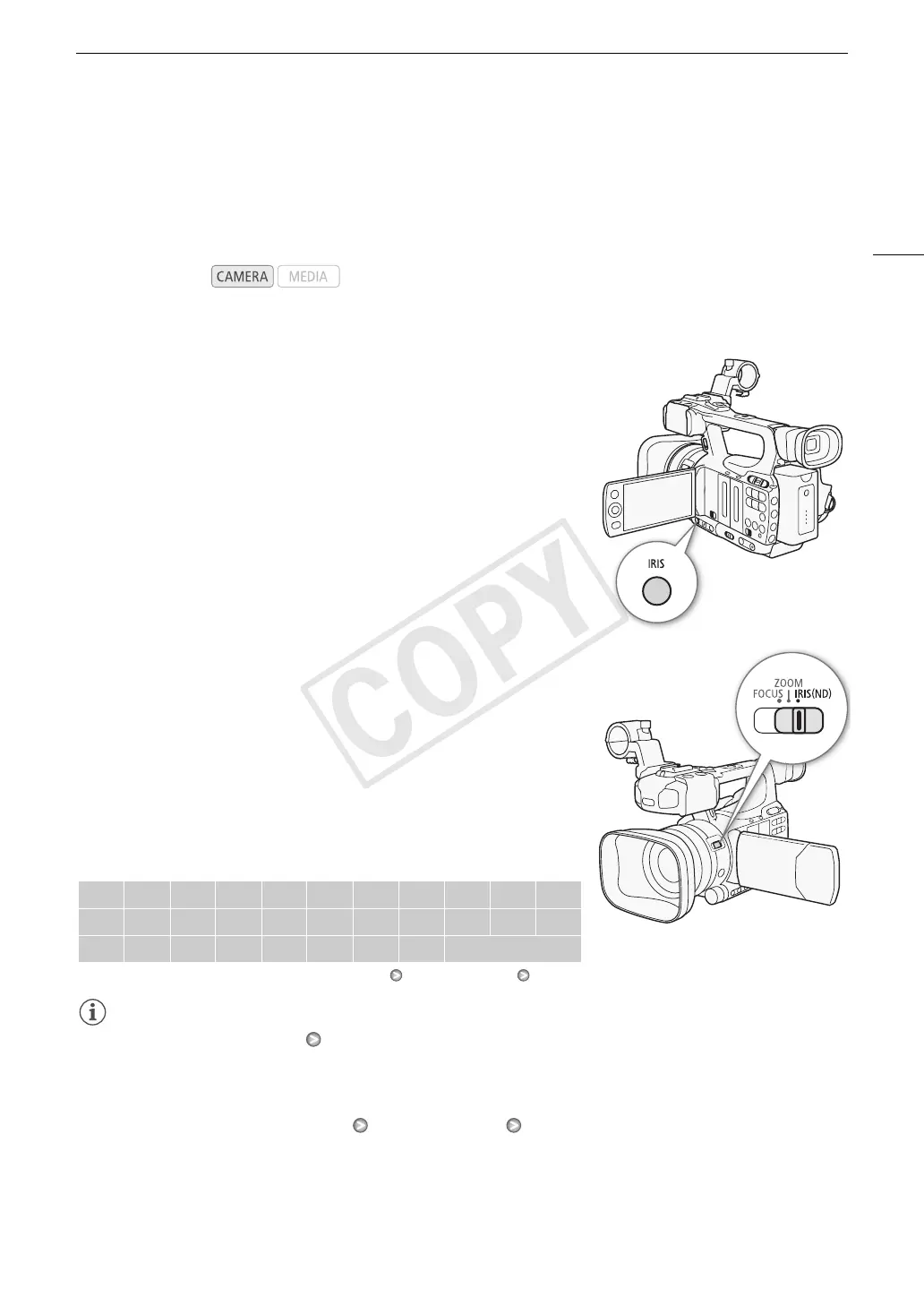

Adjusting the Aperture
Adjusting the Aperture
You can affect the brightness of your recordings or change the depth of field by adjusting the aperture. Increase
the aperture value (F8) so that objects that are close and far away will be in focus. You can have the camcorder
adjust the aperture automatically or you can manually adjust it to give you more control over your recording.
Automatic Aperture Control
The camcorder automatically adjusts the aperture based on the brightness
of the subject. If manual aperture control is activated, follow the procedure
below to activate automatic aperture control.
Press the IRIS button.
•The A icon appears next to the aperture value on the screen.
• When you set the camcorder to full auto mode (0 41), the camcorder
automatically controls the aperture.
Manual Aperture Control
When automatic aperture control is not activated, follow the procedure
below to adjust the aperture manually.
1 Move the manual ring switch to IRIS(ND).
• Alternatively, you can use the CUSTOM dial to manually adjust the
aperture (0 46).
2 Turn the manual ring to adjust the aperture.
• The f-number displayed on the screen will be in 1/4-stop increments.
Available aperture settings
* Can be selected only when the [J Other Functions] [Custom Function] [Iris Limit] setting is set to [Off].
NOTES
•If you set [l Camera Setup] [ND Filter] to [Automatic], the ND filter will activate automatically depending
on the recording conditions.
• When the gain and aperture are set to manual and the shutter speed is not set to auto, the exposure bar will
appear on the screen (0 54).
• You can use the [J Other Functions] [Custom Function] [Iris Limit] setting (0 104) to prevent the
aperture from closing below the diffraction limit of the lens (F8.0). When it is on, the maximum aperture value is
[F8.0]. When it is off, you can fully close the aperture but aperture values that exceed the diffraction limit will
appear in gray. Using aperture values displayed in gray will cause diffraction blur.
Operating modes:
F1.8 F2.0 F2.2 F2.4 F2.6 F2.8 F3.2 F3.4 F3.7 F4.0 F4.4
F4.8 F5.2 F5.6 F6.2 F6.7 F7.3 F8.0 F8.7* F9.5* F10* F11*
F12* F14* F15* F16* F17* F19* F21* F22* CLOSE*
COPY

Canon XF105 Specifications

General

Sensor type	CMOS
Total megapixels	2.37 MP
Optical sensor size	1/1.3 \
Effective megapixels (image)	2.07 MP
Filter size	58 mm
Digital zoom	- x
Optical zoom	10 x
Image stabilizer	Yes
Focal length range	4.25 - 42.5 mm
Interchangeable lens	-
Image stabilizer type	Optical Image Stabilization (OIS)
Minimum aperture number	1.8
Focal length (35mm film equivalent)	30.4 - 304 mm
Memory slots	2
Camcorder media type	Memory card
Disc types supported	No
Compatible memory cards	CF, SD
Maximum memory card size	128 GB
Internal storage capacity	- GB
Focus adjustment	Auto/Manual
Closest focusing distance	0.02 m
Camera shutter speed	0.0005 s
Display diagonal	3.5 \
Display resolution (numeric)	920000 pixels
Viewfinder type	Electronic
Viewfinder screen size	0.24 \
Camcorder type	Handheld camcorder
Image processor	DIGIC DV III
Minimum illumination	4.5 lx
Product color	Black
Video resolutions	1280 x 720, 1440 x 1080, 1920 x 1080 pixels
Maximum frame rate	60 fps
Video formats supported	MXF
Maximum video resolution	1920 x 1080 pixels
Maximum image resolution	- pixels
PCM digital audio	16-bit/48 kHz
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Component video (YPbPr/YCbCr) out	1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
Battery voltage	7.4 V
Battery capacity	- mAh
Battery life (max)	- h
Video recording time	10.4 h
Operating temperature (T-T)	0 - 40 °C
Cables included	Component
Memory card included	CF
Video compression formats	MPEG2

Weight and Dimensions

Depth	250 mm
Width	121 mm
Height	148 mm
Weight	1290 g
