Onscreen Markers and Zebra Patterns
Onscreen Markers and Zebra Patterns
Using onscreen markers allows you to make sure your subject is correctly framed and is within the appropriate
safe area. The zebra patterns help you identify areas that are overexposed. The onscreen markers and zebra
pattern will not affect your recordings.
Displaying Onscreen Markers
Available types of onscreen markers are a center marker ([Center]),
horizontal level marker ([Horizontal]), grid ([Grid]), safe area markers
([Safety Zone]) and aspect ratio marker ([Aspect Marker]).
1 Open the desired marker submenu.
[M LCD/VF Setup] [Markers] select the desired marker (see Options below)
2 Select [White] or [Gray] and then press SET.
• Select [Off] to turn off the selected marker.
• You can display multiple markers simultaneously. Repeat steps 1 and 2 for each marker you wish to display.
• If you selected [Safety Zone] or [Aspect Marker], continue to step 3. If not, skip to step 4.
3 Select [Safety Zone Area] or [Aspect Ratio], select the desired option and then press SET.
4 Select [Enable], select [On] and then press SET to enable the onscreen markers.
• All of the selected onscreen markers will be displayed.
• Select [Off] to turn off all onscreen markers.
Operating modes:
[M LCD/VF Setup]
[Markers]
[Center]
[Horizontal]
[Grid]
[Safety Zone]
[Aspect Marker]
[Off]

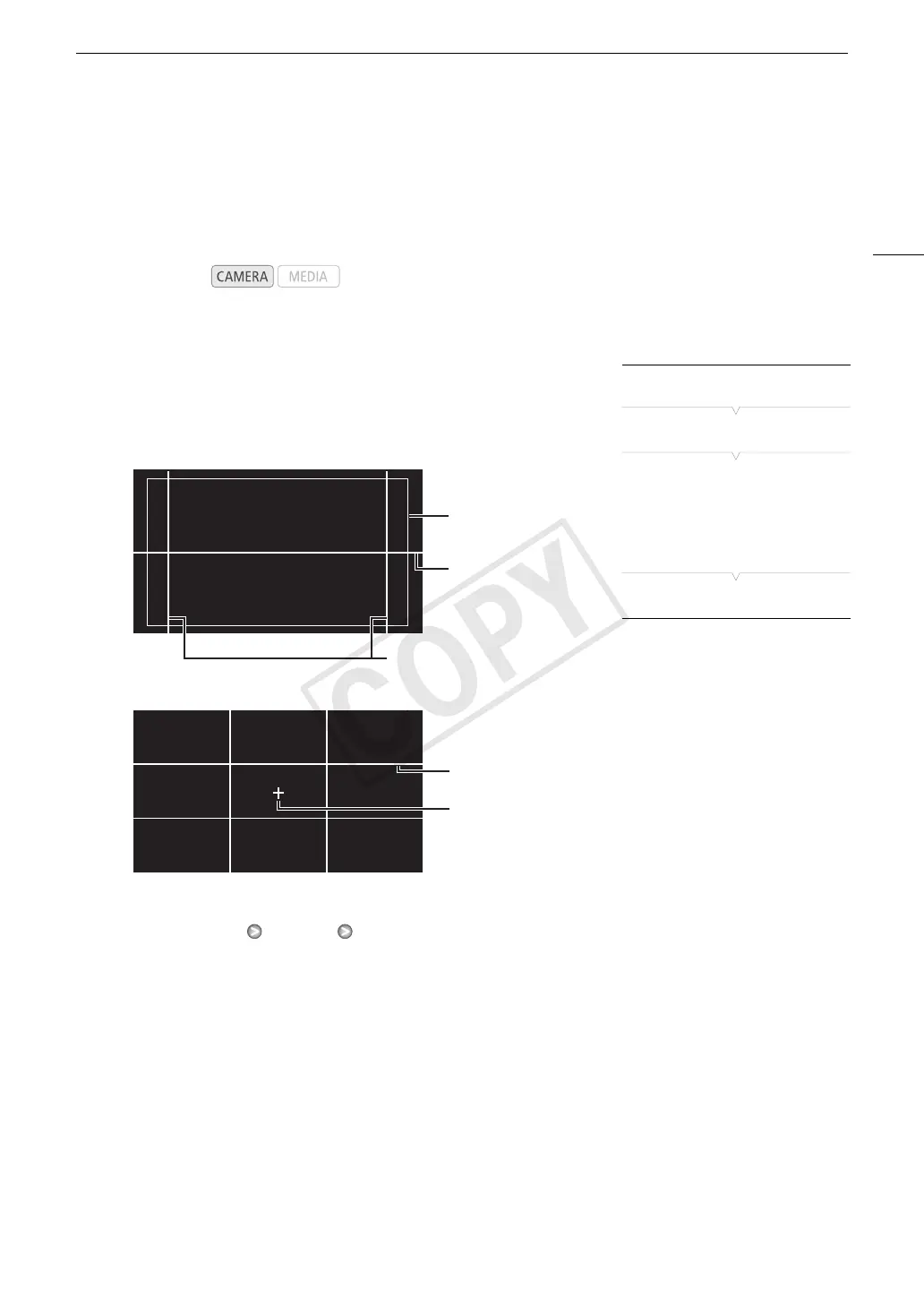

Aspect guide 4:3
Level marker
Safety zone 80%
Center marker
Grid
