Canon XF105 User Manual

Preparing the Camcorder
32

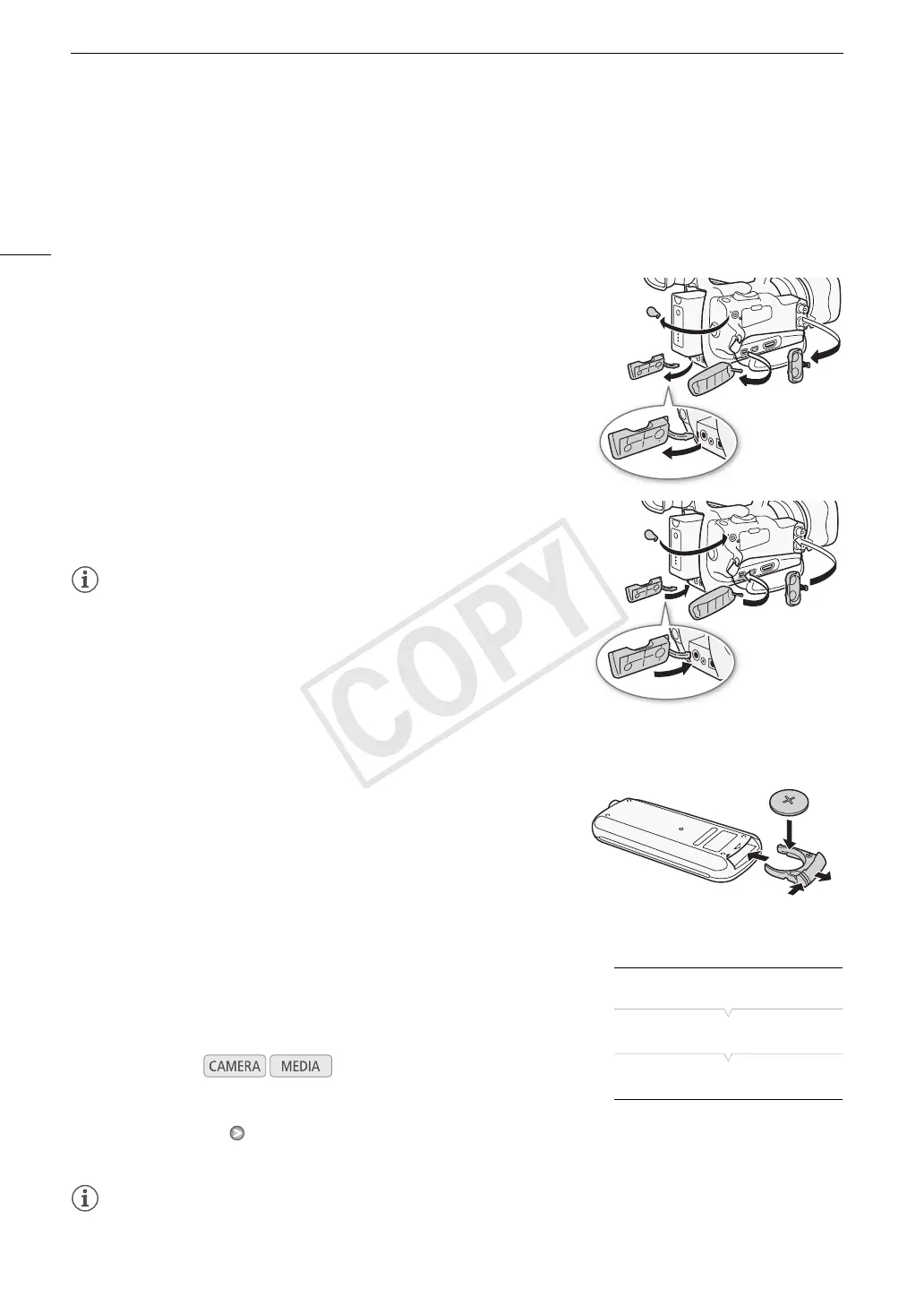

Removing and Attaching the Terminal Covers
Remove the covers for the following terminals in order to access them.
* b only.
Removing the Terminal Covers
1 Open the terminal cover.
2 Grasp the strip connecting the terminal cover to the camcorder and pull
straight out.
Attaching the Terminal Covers
Insert the connecting strip into the opening to attach the terminal cover.
NOTES
• If the connecting strip is difficult to grasp, use a pair of tweezers or similar
tool.
Using the Wireless Controller
Inserting the Battery
Insert the supplied CR2025 lithium button battery into the wireless
controller before use.
1 Press the tab in the direction of the arrow (햲) and pull out the battery
holder (햳).
2 Place the lithium button battery with the + side facing up (햴).
3 Insert the battery holder (햵).
Activating the Wireless Controller
By default, the wireless controller is activated. If it has been deactivated,
follow the procedure below to activate it.
1 Open the [Wireless Controller] submenu.
[J Other Functions] [Wireless Controller]
2 Select [On] and then press SET.
NOTES
• You can also activate the wireless controller by setting an assignable button to [Wireless Controller] (0 94).
• HD/SD SDI and GENLOCK/TC terminals*
• W (headphone), AV and DC IN terminals
• REMOTE terminal
• HD/SD COMPONENT OUT, USB and HDMI
OUT terminals
Operating modes:
햲
햳
햵
햴
[J Other Functions]
[Wireless Controller]
[On]
COPY

Canon XF105 Specifications

General

Sensor type	CMOS
Total megapixels	2.37 MP
Optical sensor size	1/1.3 \
Effective megapixels (image)	2.07 MP
Filter size	58 mm
Digital zoom	- x
Optical zoom	10 x
Image stabilizer	Yes
Focal length range	4.25 - 42.5 mm
Interchangeable lens	-
Image stabilizer type	Optical Image Stabilization (OIS)
Minimum aperture number	1.8
Focal length (35mm film equivalent)	30.4 - 304 mm
Memory slots	2
Camcorder media type	Memory card
Disc types supported	No
Compatible memory cards	CF, SD
Maximum memory card size	128 GB
Internal storage capacity	- GB
Focus adjustment	Auto/Manual
Closest focusing distance	0.02 m
Camera shutter speed	0.0005 s
Display diagonal	3.5 \
Display resolution (numeric)	920000 pixels
Viewfinder type	Electronic
Viewfinder screen size	0.24 \
Camcorder type	Handheld camcorder
Image processor	DIGIC DV III
Minimum illumination	4.5 lx
Product color	Black
Video resolutions	1280 x 720, 1440 x 1080, 1920 x 1080 pixels
Maximum frame rate	60 fps
Video formats supported	MXF
Maximum video resolution	1920 x 1080 pixels
Maximum image resolution	- pixels
PCM digital audio	16-bit/48 kHz
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Component video (YPbPr/YCbCr) out	1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
Battery voltage	7.4 V
Battery capacity	- mAh
Battery life (max)	- h
Video recording time	10.4 h
Operating temperature (T-T)	0 - 40 °C
Cables included	Component
Memory card included	CF
Video compression formats	MPEG2

Weight and Dimensions

Depth	250 mm
Width	121 mm
Height	148 mm
Weight	1290 g
