20070201
12-3-3
Performing a Data Communication Operation

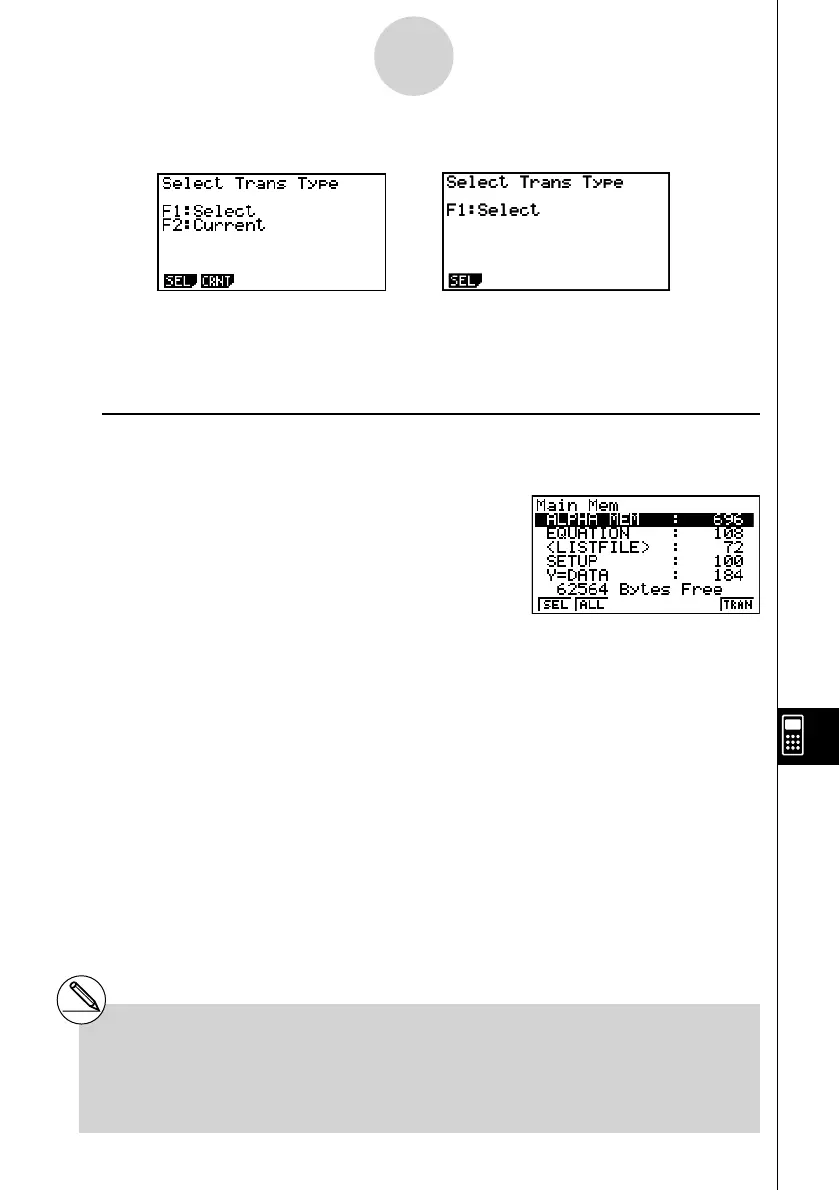

Pressing 1(MAIN) or 2(SMEM) displays a screen for specifying the data selection
method.
When 1(MAIN) is pressed When 2(SMEM) is pressed
• {SEL} ... {selects new data}
• {CRNT} ... {automatically selects previously selected data*
1
}
u To send selected data items (Example: To send user data)
Press 1(SEL) or 2(CRNT) to display a data item selection screen.
• {SEL} ... {selects data item where cursor is located}
• {ALL} ... {selects all data}
• {TRAN} ... {sends selected data items}
Use the f and c cursor keys to move the cursor to the data item you want to select and
press 1(SEL) to select it. Currently selected data items are marked with “ ”. Pressing
6(TRAN) sends all the selected data items.
• To deselect a data item, move the cursor to it and press 1(SEL) again.
Only items that contain data appear on the data item selection screen. If there are too many
data items to fi t on a single screen, the list scrolls when you move the cursor to the bottom
line of the items on the screen.
*
1
The previously selected data memory is
cleared whenever you perform either of the
following operations.
- Change the type of transfer data
- Change to another mode
