Viewing Statistics
Configuring RMON History
ESW 500 Series Switches Administration Guide 399
17

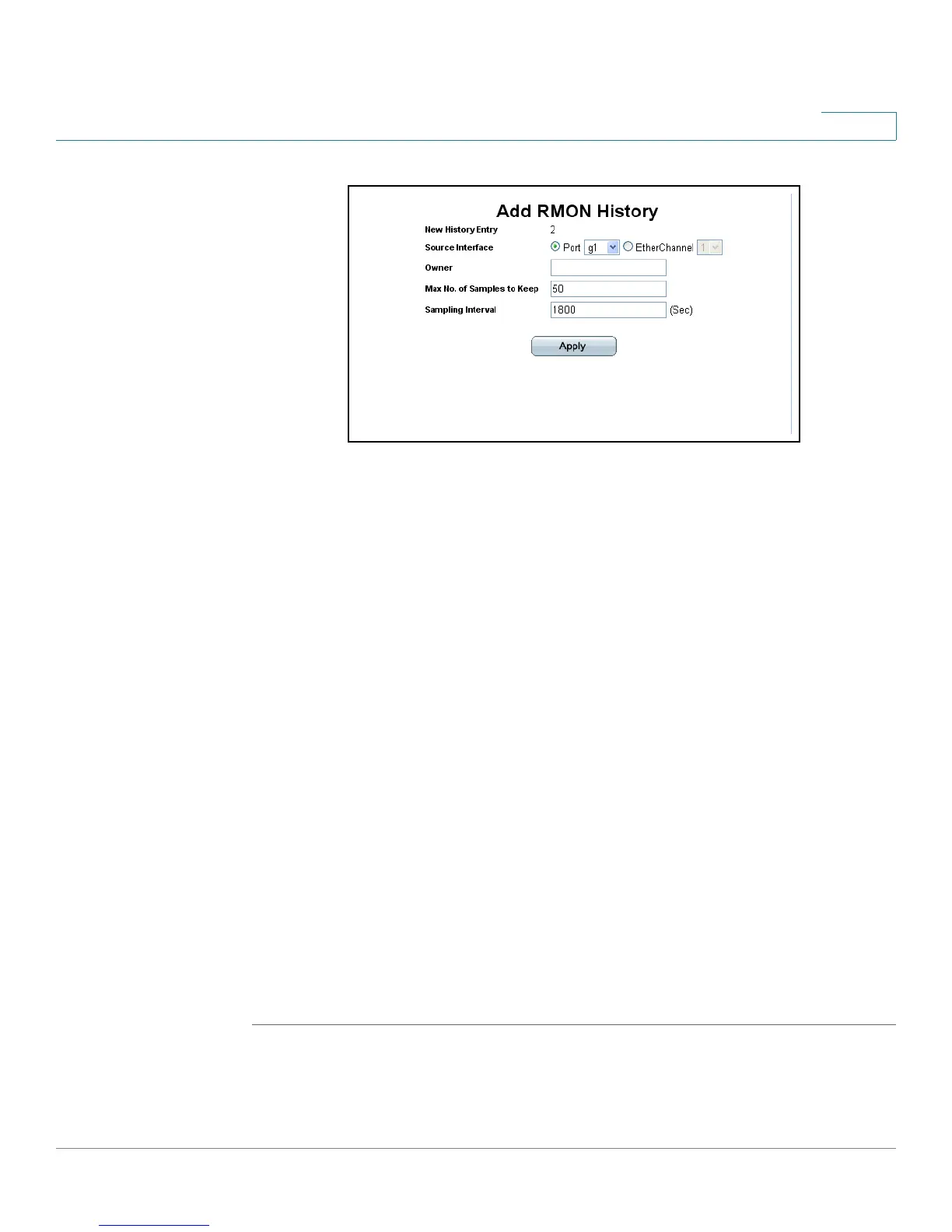

Add RMON History Page
The
Add RMON History Page contains the following fields:
• New History Entry — Number automatically assigned to the table entry
number.
• Source Interface — Select the interface (port or EtherChannel) from which the
history samples will be taken. The possible field values are:
- Ports — Specifies the port from which the RMON information is taken.
- EtherChannel — Specifies the EtherChannel from which the RMON
information is taken.
• Owner — Displays the RMON station or user that requested the RMON
information. The field range is 0-20 characters.
• Max No. of Samples to Keep — Indicates the number of samples to save.
• Sampling Interval — Indicates the time in seconds that samplings are taken
from the ports. The field range is 1-3600. The default is 1800 seconds (equal to
30 minutes).
STEP 4 Define the relevant fields.
STEP 5 Click Apply. The entry is added to the RMON History Control Page , and the device
is updated.
Modifying RMON History Settings
STEP 1 Click Statistics > RMON (Remote Management) > History. The RMON History
Control Page
opens.
STEP 2 Click the Edit button. The Edit RMON History Page opens:
