Cisco SCE8000 GBE Installation and Configuration Guide
Chapter 2 Introduction to the Cisco SCE 8000 10 GBE Platform
Service Control Module (Cisco SCE 8000-SCM-E)
Service Control Module (Cisco SCE 8000-SCM-E)
The Cisco SCE 8000 GBE contains one or two Cisco SCE 8000-SCMs located in slots 1 and 2 (the top
two slots). If only one Cisco SCE 8000-SCM module is installed, it must be installed in slot 1.
The Cisco SCE 8000-SCM in slot 1 performs the following functions:
• Service engine (Deep Packet Inspection (DPI)) and traffic processing
• Management interfaces and functionality
• Chassis control and management
The Cisco SCE 8000-SCM in slot 2 serves only DPI and traffic processing purposes, doubling the
performance and capacity of the Cisco SCE 8000. Although the two modules are identical (with the same
ports and LEDs), this second SCM module does not run chassis management or control software.
The Service Control module contains ports and LEDs as shown in Figure 2-2, and described in Table 2-2
and Table 2-3.

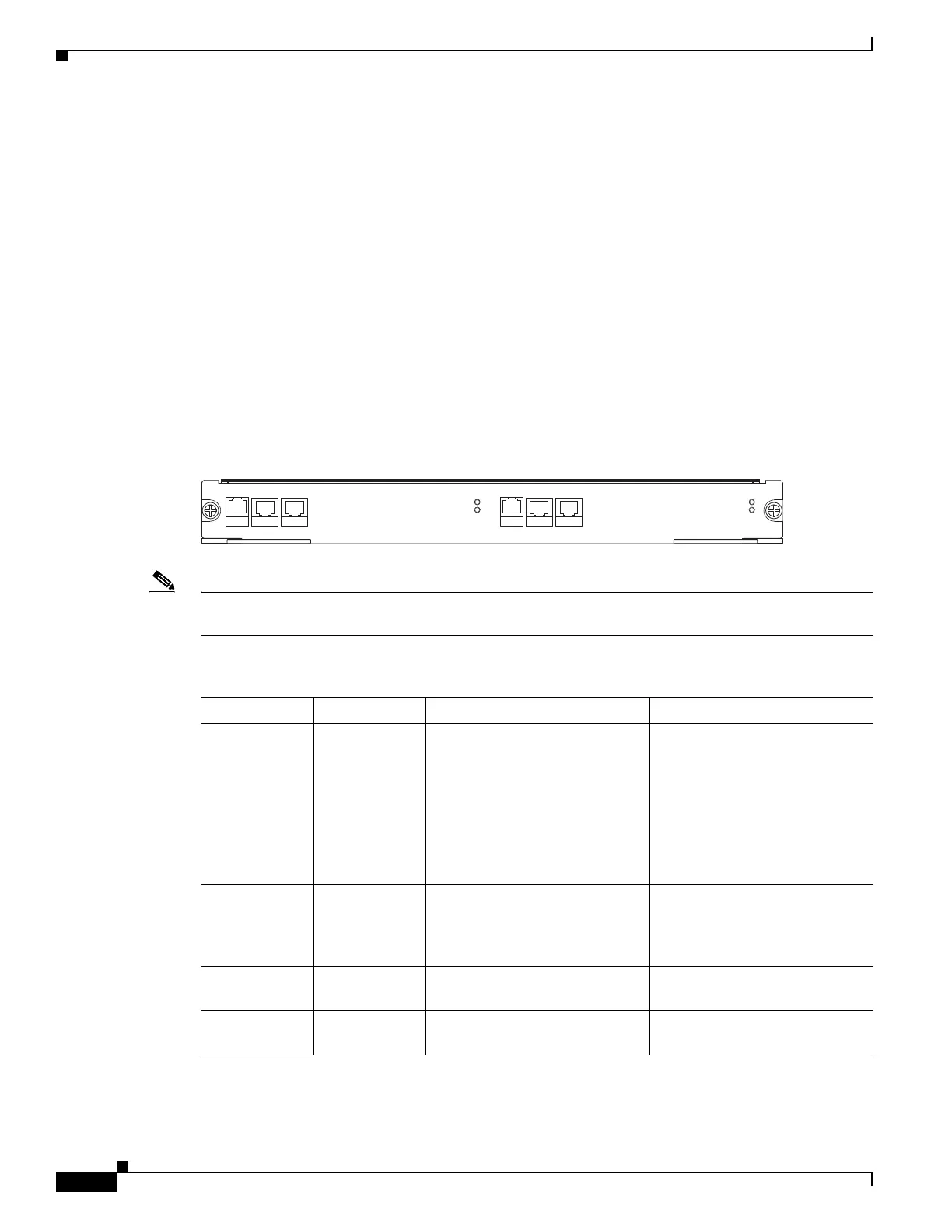

Figure 2-2 Cisco SCE 8000-SCM-E
Note Although the Cisco SCE 8000-SCM module in slot 2 contains all the ports listed in Table 2-2, these ports
are not used. All connections should be made to the Cisco SCE 8000-SCM module in slot 1.
Table 2-2 Cisco SCE 8000-SCM-E Ports
Port Quantity Description Connect This Port To…
10/100/1000 2 (Port1 and
Port2)
10/100/1000 Ethernet RJ-45
ports for management of the
Cisco SCE 8000.
CLI designation: interface
GigabitEthernet 1/1, 1/2
OR
interface MNG 01, 0/2
A LAN using a GBE cable with
an RJ-45 connector.
If both interfaces are used to
provide a redundant
management interface, connect
both ports to the LAN via a
switch.
Console 1 RS-232 RJ-45 port used by
technicians.
A local terminal (console) using
an RS-232 cable with an RJ-45
connector, as provided in the
Cisco SCE 8000 kit.
AUX 1 RS-232 RJ-45 port used by
technicians.
—
Bypass 2 RJ-11 port. The control connector on the
optical bypass module.
SCE8000 EXTENDED SERVICE CONTROL MODULE
270874
SCE8000-SCM-E
STATUS
OPTICAL BYPASS
MASTER
SYSTEM POWER
10/100/
1000
LINK/
ACTIVE
OPTICAL
BYPASS1
CONSOLE PORT1
10/100/
1000
LINK/
ACTIVE
OPTICAL
BYPASS2
AUX PORT2
