E-5
Cisco Wireless LAN Controller Configuration Guide
OL-9141-03
Appendix E Logical Connectivity Diagrams
Cisco 28/37/38xx Integrated Services Router
Cisco 28/37/38xx Integrated Services Router

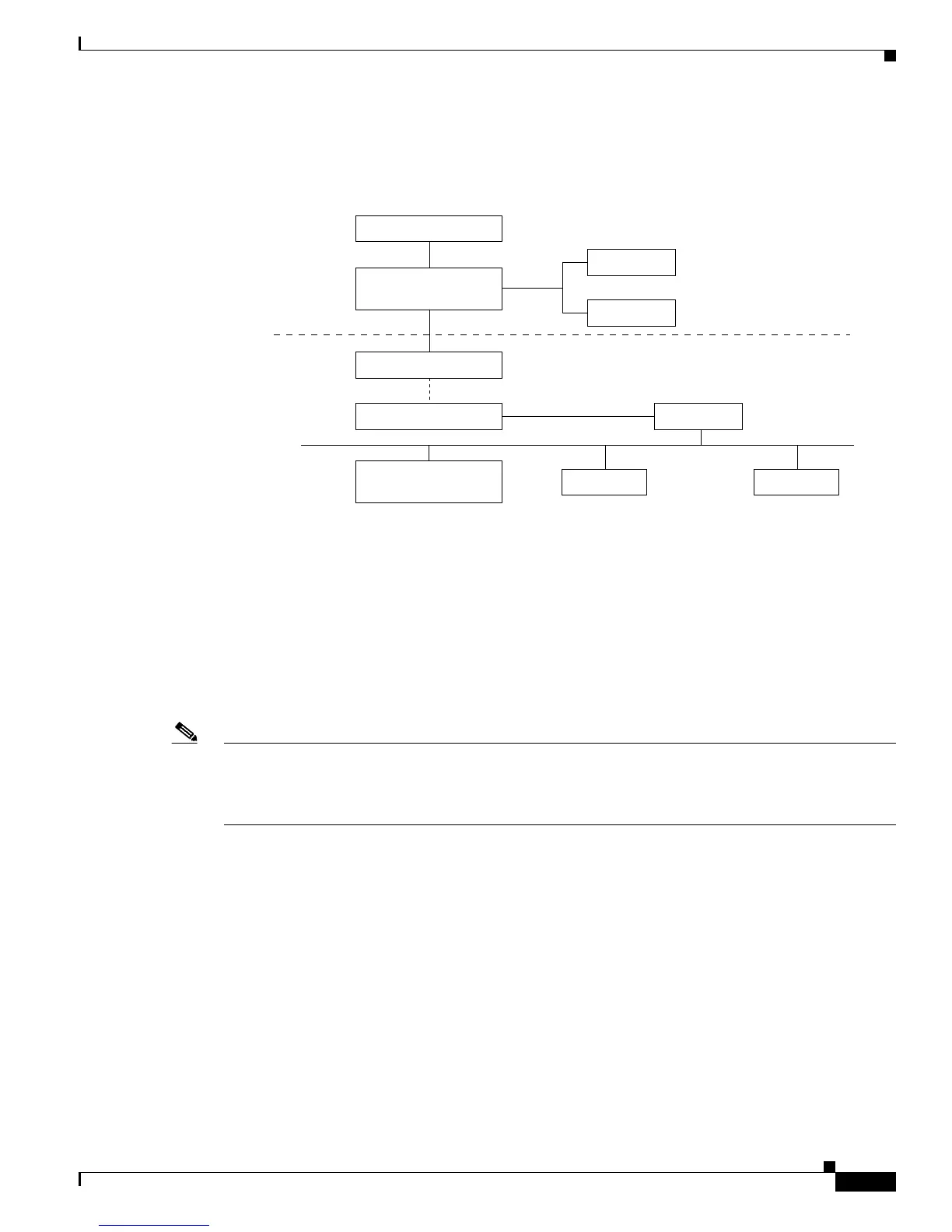

Figure E-2 Logical Connectivity Diagram for the Cisco 28/37/38xx Integrated Services Router
These commands are used for communication between the Integrated Services Router and the 2006
controller network module. They are initiated from the router.
• interface wlan-controller slot/unit (and support for subinterfaces with dot1q encap)
• show interfaces wlan-controller slot/unit
• show controllers wlan-controller slot/unit
• test service-module wlan-controller slot/unit
• test HW-module wlan-controller slot/unit reset {enable | disable}
Note Refer to the Cisco Wireless LAN Controller Module Feature Guide for more information. You can find
this document at this URL:
http://www.cisco.com/univercd/cc/td/doc/product/software/ios124/124newft/124limit/124x/124xa2/bo
xernm.htm#wp2033271
Console
28/37/38xx
Integrated
Services Router
2006 Controller
Network Module
Router CPU
(Cisco IOS Software)
Memory
Flash
Fast Ethernet
Fast Ethernet 1
CPU
256 MB
Compact Flash
Memory
StrataFlash
155910
