108
2. Remove cotter pin, clevis pin and release
lever.
3. Pull out the clutch lever with removing the
release lever.
5-2. REASSEMBLING
(1) REASSEMBLING CLUTCH LEVER
1. Reassemble the clutch lever, release lever,
release hub with reverse procedure of
disassembling. Use the following values as
adjustment and service standard for the
installation.
*For the installation of release bearing,
depress the inner hub.
2. Make sure the direction of release lever and
release hub for the reassembling.
3. Apply the lithium grease inside of release hub
before assembling.

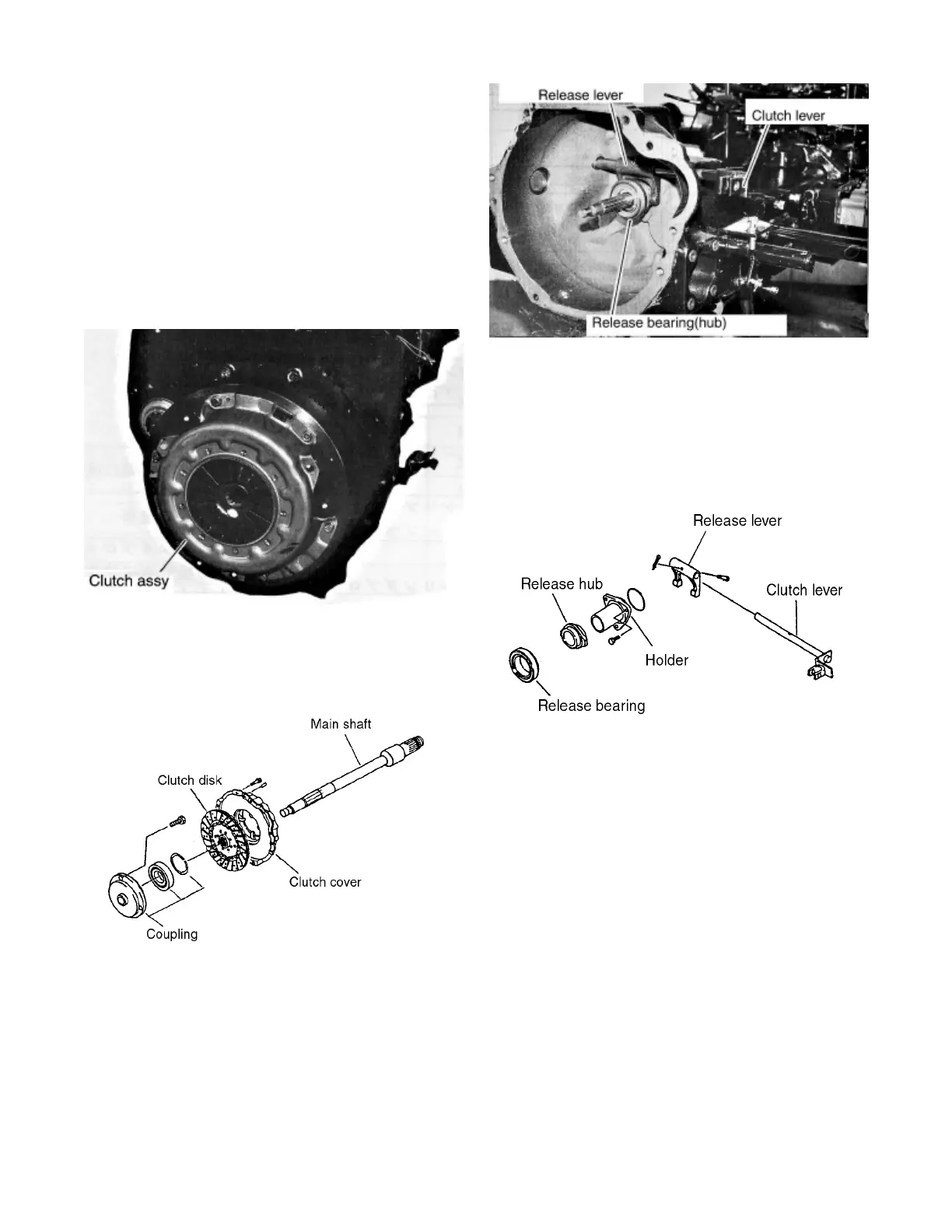

5. CLUTCH
5-1 DISASSEMBLING
(1) DISASSEMBLING CLUTCH ASSY
1. Remove the fixing bolts of clutch cover and
remove the clutch assy from engine
flywheel.
*When loosen the fixing bolts, loosen them
diagonally .
2. Take out cover assy and disk assy.
(2) DISASSEMBLING CLUTCH LEVER
1. Remove the release hub with release bearing
by moving the clutch lever.
To Next Page
