121

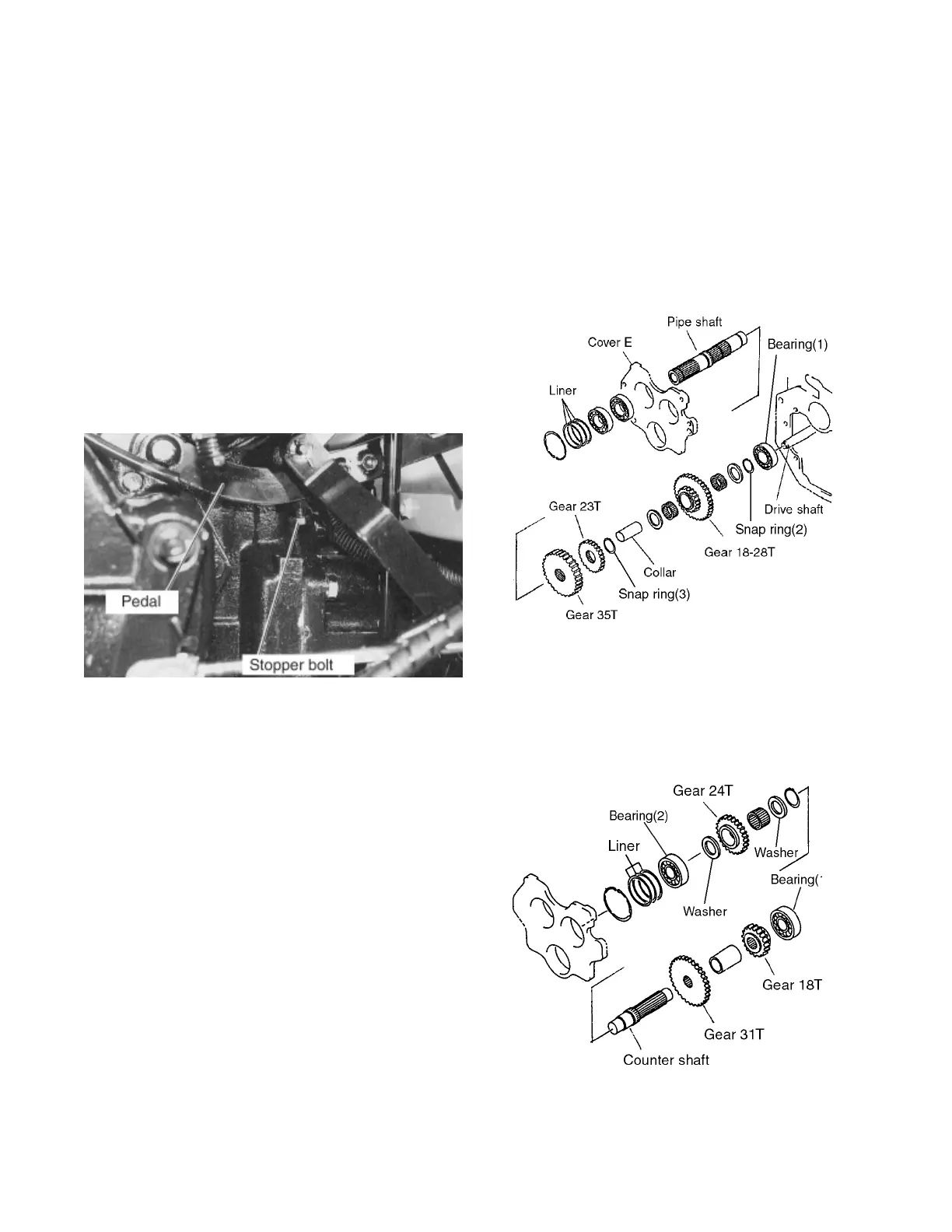

(2) COVER E SUB ASSY REASSEMBLING
*Reassemble the rear differential case with
reverse procedure of disassembling. Use
following values as adjustment and service
standard for reassembling.
1. Drive shaft
Adjust the end play at drive shaft to be
[0.002~0.0079in.] by liner.
2. Counter shaft
Adjust the end play at counter shaft to
[0.002~0.0079in.] by liner.
6-6 TRANSMISSION CASE REASSEMBLING
*Reassemble the transmission case with
reverse procedure of disassembling.
(1) REAR DIFFERENTIAL CASE REASSEMBLING
*Reassemble the rear differential case with
reverse procedure of disassembling. Use
following values as adjustment and service
standard for reassembling.
1. Differential lock pedal
Adjust the stopper bolt that the clearance
between differential case and hub comes to
[0.039~0.059in.] when pedal is fully depressed.
2. Holders
1) Adjust the backlash at ring gear and pinion
gear to [0.004~0.012] by adjusting shim
thickness at left holder.
2) Adjust the clearance between side of
differential case assy and transmission case
to [0~0.004in.] by adjusting shim thickness at
right holder.
3) Lock the fixing bolts of holders by lock plate.
