136

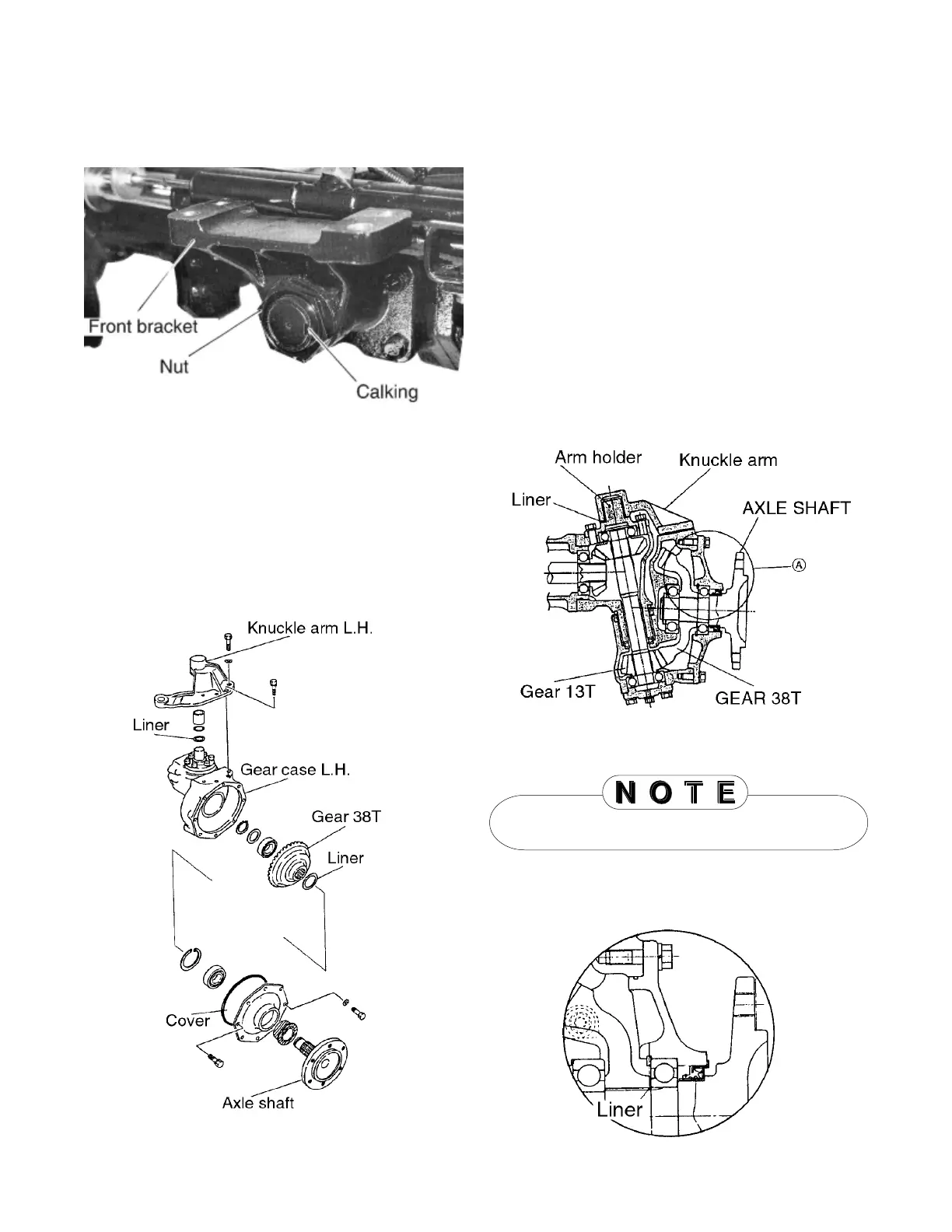

3. Tighten the nut until no play is produced but
bracket can be turned lightly.
(2) KNUCLE ARM AND FINAL CASE
REASSEMBLING
*Reassemble knuckle arm and final case with
reverse procedure of disassembling.
Use following values for reassembling of
knuckle arm and final case as adjustment and
service standard.
1. Apply lithium grease to o-ring and lip of oil
seal for assembling.
2. Apply liquid packing (threebond #1208D) to
installation surface of arm holder (*marked).
3. Select the liner that the clearance between
arm holder and knuckle arm to be
[0.002~0.008 in.].
Fill the grease at pivot of knuckle arm.
4. Adjust backlash between gear 13T and gear
38T to [0.008~0.016 in] by liner.
To Next Page
