109

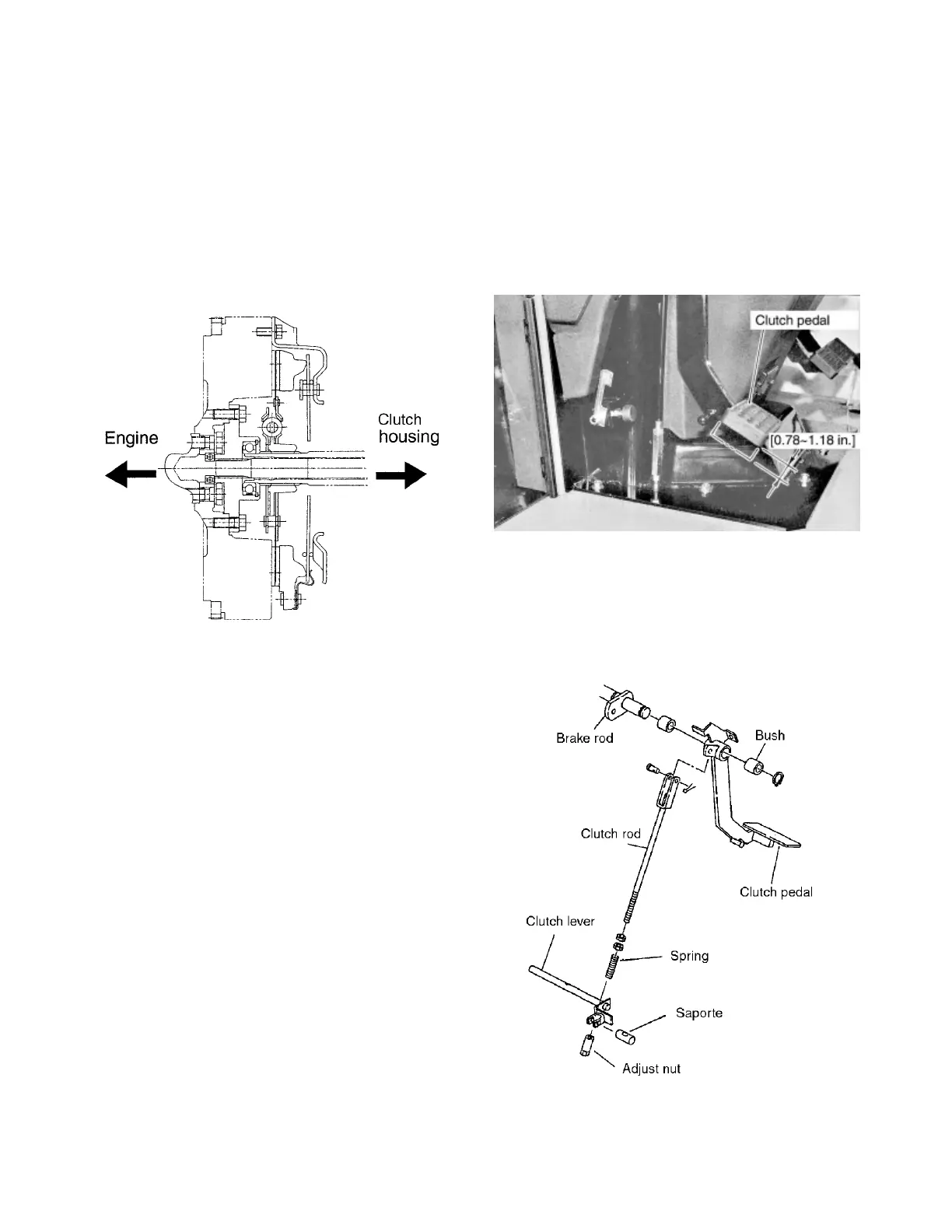

(2) REASSEMBLING CLUTCH ASSY
1. Reassemble the clutch assy with reverse
procedure of disassembling. Use following
values as adjustment and service standard
for the assembling.
2. Set the clutch disk surface which spline boss
sticking out longer face to clutch housing
ıııııııııııı
3. Apply the lithium grease to the spline of clutch
disk.
4. Before installing the clutch assy to engine,
clean flywheel end. Aline the center of clutch
disk ID and flywheel bearing ID.
5. Tightening torque of clutch assy fixing bolts.
[18~21.7 lbf•ft]
5-3 ADJUSTMENT
(1) CLUTCH PEDAL ADJUSTMENT
1. Depress the clutch pedal by hand and
measure the amount of pedal free play at
pedal.
Pedal free play : [0.79~1.18in.]
2. In case that the free play is out of standard
value, adjust the rod length by turning the
adjust nut.
*Apply the grease at pivot point of the pedal.
To Next Page
