(2) TIMING GEAR•FLYWHEEL REASSEMBLING
* Reassemble the timing gears and flywheel
with reverse procedure of disassembling.
Use following values for reassembling as
adjustment and service standard.
1.Front plate installation
(1)Scrape the gasket from the cylinder block
and front plate.
(2)Coat the gasket contact surface of
cylinder block with adhesive and put a
new gasket in position, making sure the
holes in the gasket are all in alignment
with the holes in the cylinder block.
(3)Put the front plate in position. Install four
bolts and tighten them.
2.Oil pump installation
(1)Make sure the packing has been put in
position on the oil pump.
(2)Put the oil pump in position on the
cylinder block. Install three bolts and
tighten them evenly.
(3)Make sure the oil pump gear rotates
freely.

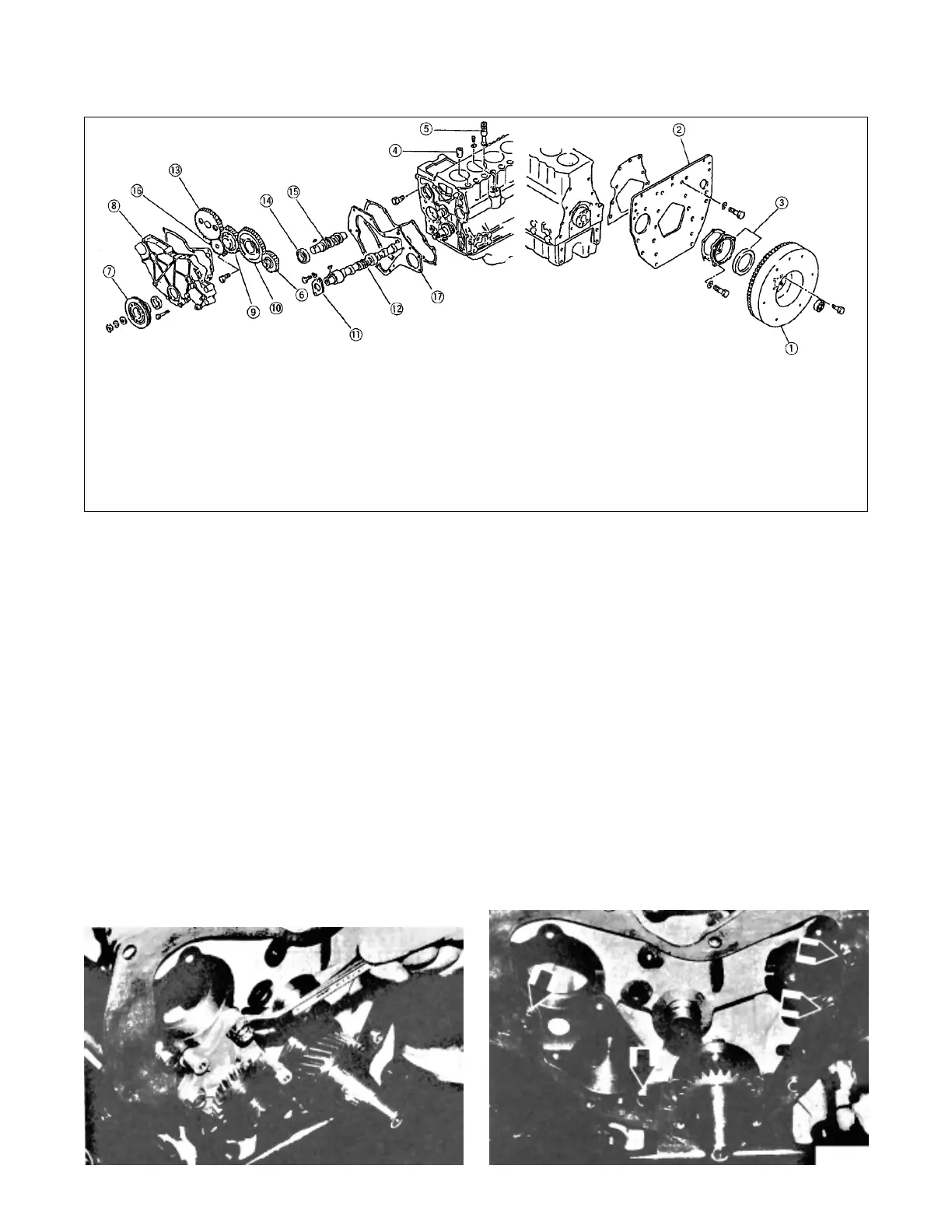

(1) Flywheel
(2) Rear plate
(3) Oil seal case (8) Timing gear case (13) Pump camshaft gear
(4) Tappet (9) Idler gear (14) Bearing
(5) Speedometer driven gear (10) Valve camshaft gear (15) Pump camshaft
(6) PTO gear (11) Thrust plate (16) Oil pump
(7) Crankshaft pulley (12) Valve camshaft (17) Front plate
