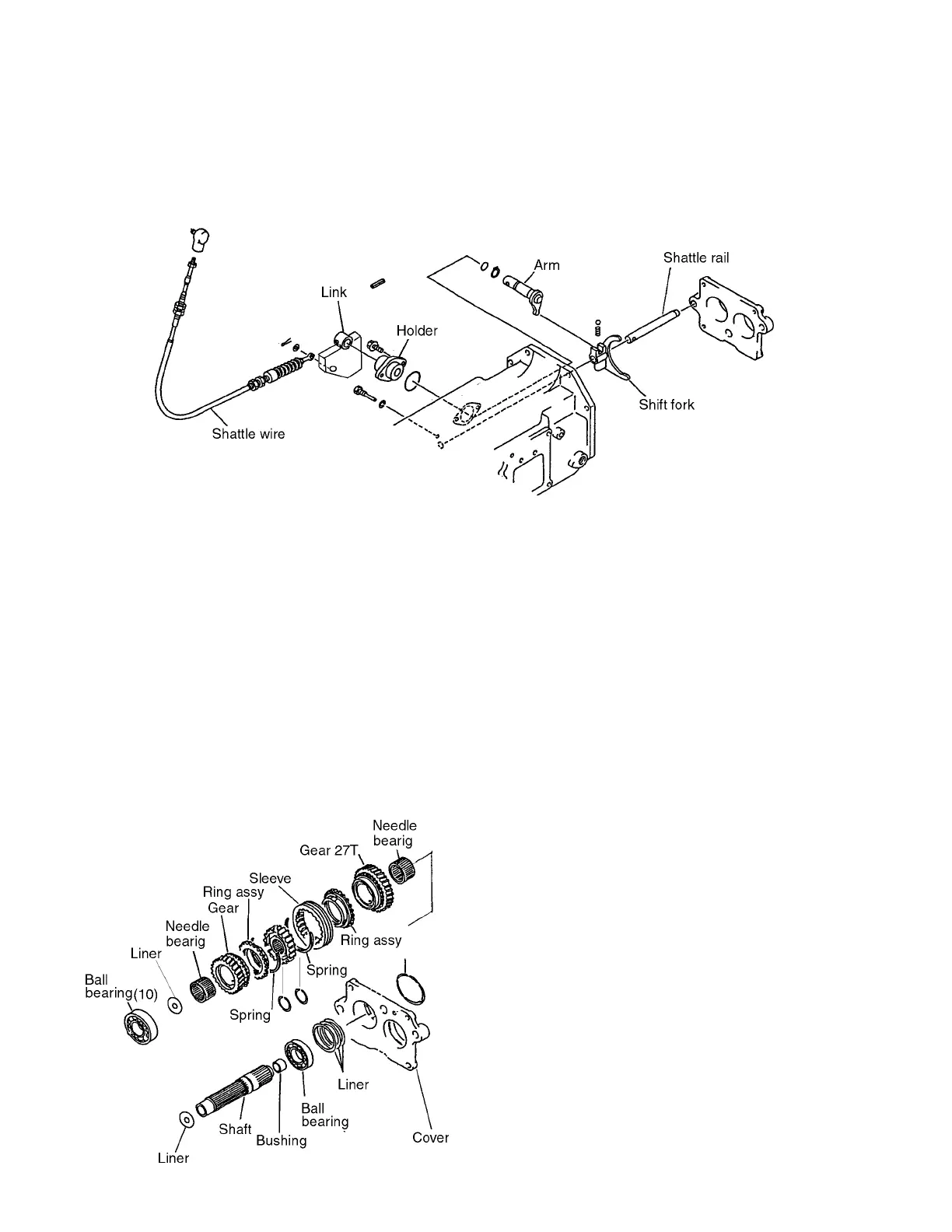

(3) DISASSEMBLE SHUTTLE SHIFT CONTROL
1. Disconnect shuttle shift wire from link.
2. Remove link from arm and remove holder.
3. Remove stopper bolt.
(4) COVER D REMOVAL
Remove fixing bolts of cover and remove
cover from center case
(5) COVER D SUB ASSY DISASSEMBLING
1. Disassemble drive shaft.
1) Remove drive shaft with bearing and
synchronized gears.
2) Remove bearing(10) and remove
synchronize gears and hubs from drive
shaft.
To Next Page
