(2) BRAKE R.H. REASSEMBLING

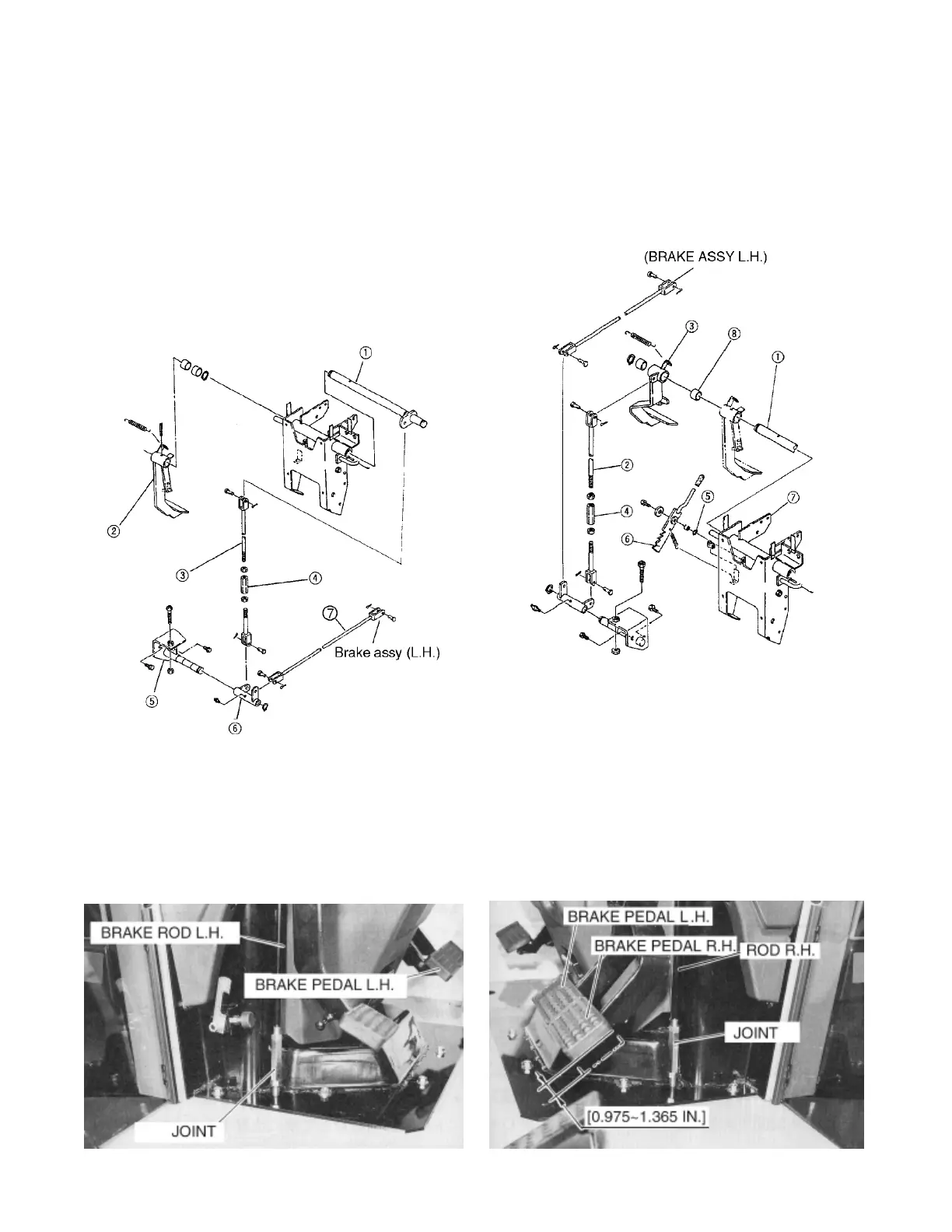

*Reassemble the brake R.H. with reverse
procedure of disassembling. Use following
values for rear axle reassembling as
adjustment and service standard.
1. Adjust the free play of brake pedal L.H. and
R.H. by joint(4). Difference of pedal height
between brake pedal L.H. and R.H. must be
adjusted less than [0.118 in.]
2. Adjust the clearance between bracket (7) and
parking brake lever (6) to be less than
[0.197 in.] by liner.
7-6. BRAKE CONTROL REASSEMBLING
*Reassemble the brake control with reverse
procedure of disassembling.
(1) BRAKE L.H. REASSEMBLING
*Reassemble the brake L.H. with reverse
procedure of disassembling. Use following
values for rear axle reassembling as
adjustment and service standard.
1. After installation of the grease nipple, fill up
the chassis grease.
