(3) KING PIN CASE REASSEMBLING
*Reassemble king pin case with reverse
procedure of disassembling.
Use following values for reassembling of king pin
case as adjustment and service standard.
1. Apply lithium grease at o-ring and oil seal.
2. Wind seal tape to fixing bolts (15) of arm
holder.
3.
Tightening torque of plug (16). [8.68~12.3lbf•ft]
4. King pin case assembling

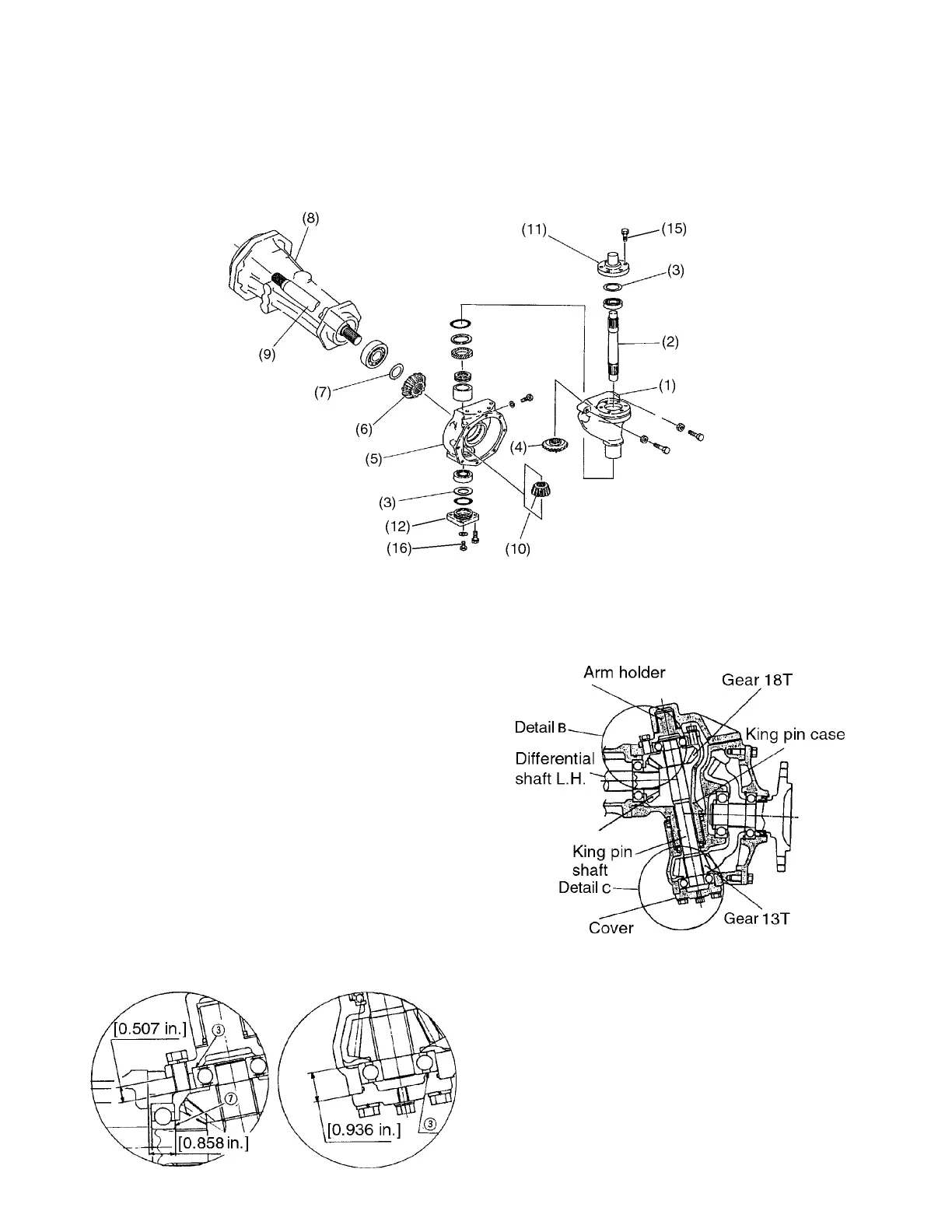

Adjust the dimensions as shown in the
drawing by liner (3).
DETAIL B DETAIL C
5. Adjust backlash between gear 14T and gear
18T to [0.0078~0.0157 in.] by liner (7).
