66

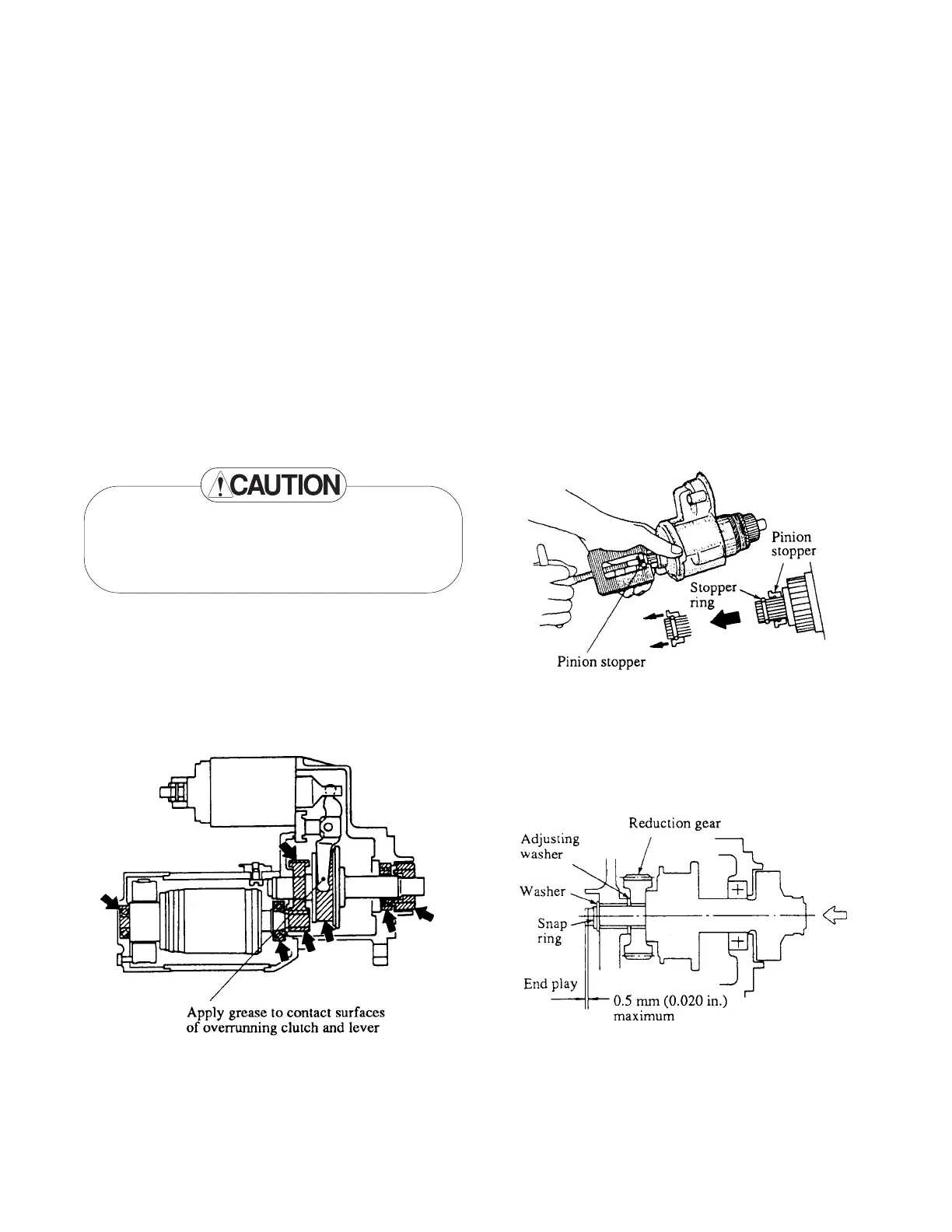

(3)Pinion shaft end play adjustment
The maximum permissible limit of the end
play(thrust gap) for the pinion shaft is 0.5mm
(0.020 in)
(a)Put the pinion shaft, reduction gear washer
and snap ring in position in the center
bracket.
(b)Move the pinion shaft in the axial
direction to measure the end play. If the
end play exceeds 0.5mm(0.020 in.),
make adjustment to it by adding adjusting
washer.
(4)Lever installation
Install the lever in correct position.
(9)ELECTRICAL SYSTEM
REASSEMBLING
1.starter
Follow the reverse of disassembly and use the
procedure that follows.
(1)Lubrication
Lubrication the following starter components
with grease after the starter has been
assembled:
(a)Armature shaft gear and reduction gear
(b)Bearing
(c)Washer and stopper ring of pinion shaft
(d)Pinion
(e)Sliding surfaces of lever
Do not put grease on the starter mounting
face,brushes, commutator and other electrical
parts.
(2)Stopper ring installation
Put the stopper ring on the pinion shaft.
Using a puller, pull the pinion stopper to fit
the ring in the groove.
