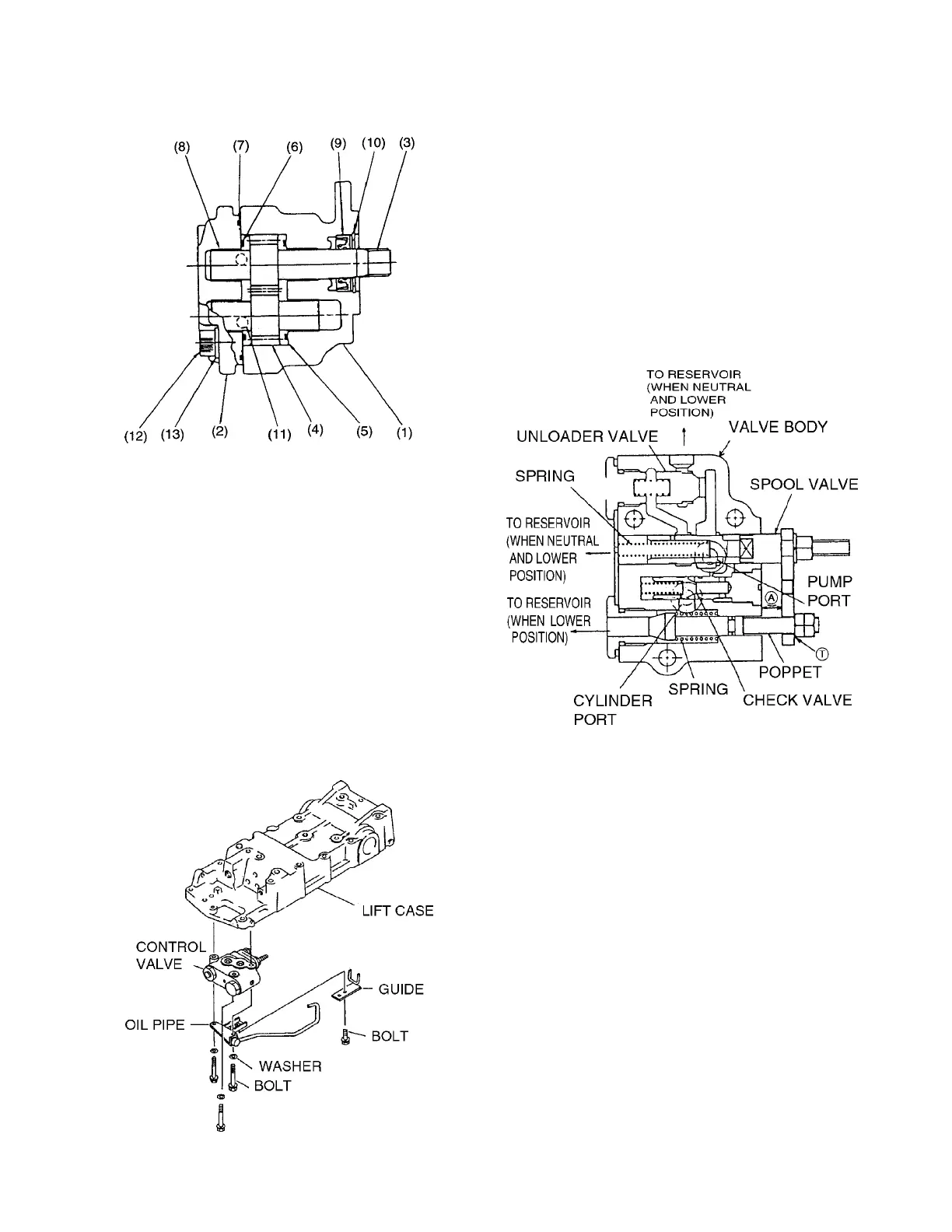

3. Pump II disassembling
1) Remove fixing bolts (12) and remove cover
(2), gasket (7), gear A (3), gear B (4),
snap ring (10), and oil seal (9) from body (1).
(2) CONTROL VALVE DISASSEMBLING
1. Control valve removal
Disconnect the linkage at control valve spool
and remove fixing bolts of control valve
(3 bolts) and ,lubrication pipe, guide and
control valve.
2. Control valve disassembling
1) Remove plug at unload valve and remove
spring and unload valve.
2) Remove plug at poppet and remove plate
and spring at spool.
3) Remove nuts at poppet and spool. Remove
spool, poppet and spring.
4) Remove plug at check valve and remove
check valve and spring.
