132
4
. Remove nut (10) and remove front bracket (2).
5. Remove fixing bolts of holder (5) and remove
holder(5).
8. FRONT AXLE
8-1. FRONT AXLE REMOVAL
(1) FRONT AXLE REMOVAL
See page 13.

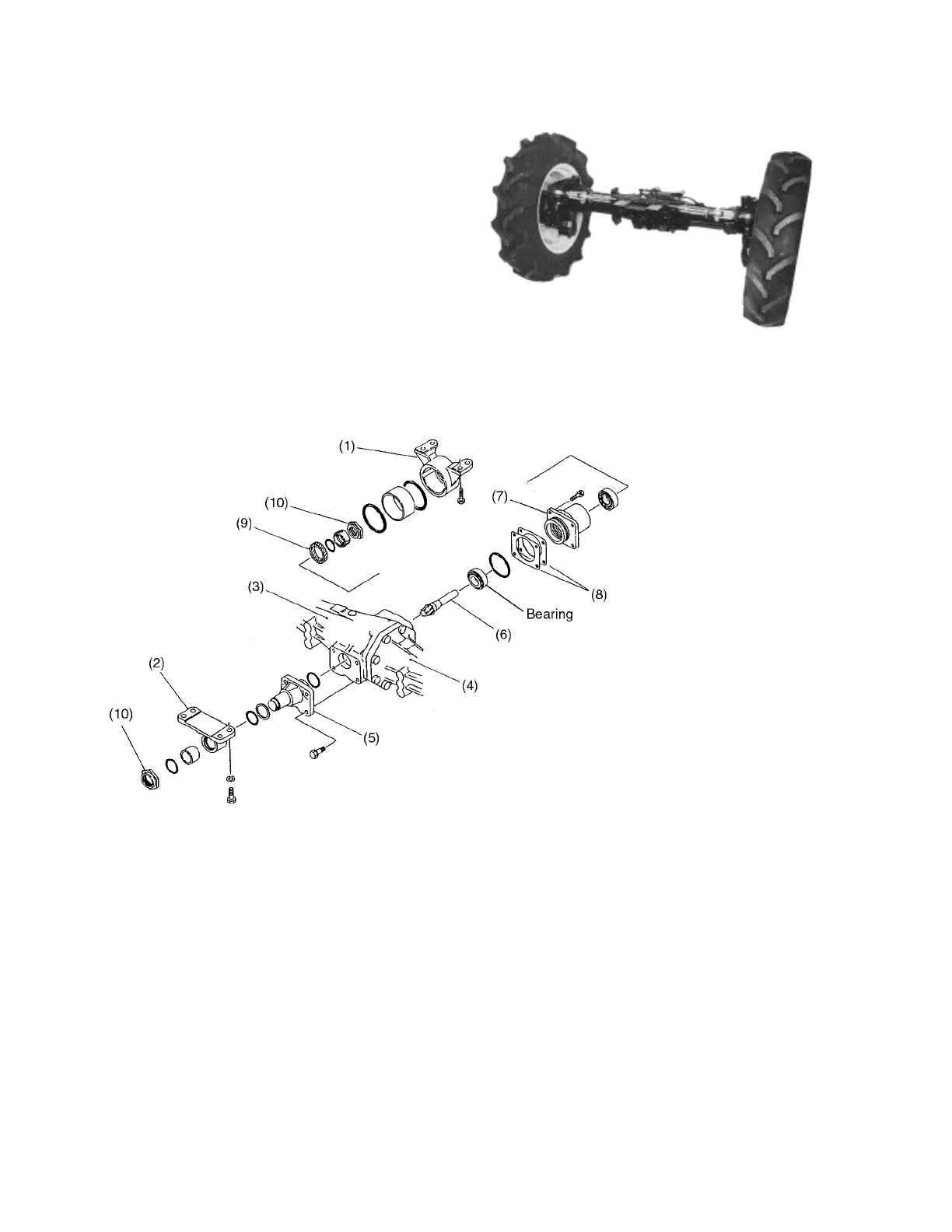

(2) HOLDER ASSY DISASSEMBLING
1. Remove rear bracket (1) from front axle assy.
2. Remove fixing bolts of bearing case (7) and
remove bearing case from front axle assy.
3. Remove nut (10) and remove pinion shaft(6),
bearing, oil seal (9) , collar and shims (8) from
bearing case (7).
(
1)REAR BRACKET
(2)FRONT BRACKET
(3)CENTER CASE R.H.
(4)CENTER CASE L.H.
(5)HOLDER
(6)PINION SHAFT
(7)BEARING CASE
(8)SHIM
(9)OIL SEAL
(10)NUT
To Next Page
