68
2.Alternator
Follow the reverse of disassembly and use the
procedure that follows.
(a)The rear bearing has a groove for the
snap ring. Install the snap ring in this
groove, making sure its tab is in the deep
portion of the groove.
(b)When installing the new rear bearing,
put it in position with the side that has a
groove toward the slip rings of the rotor.
(c)To install the rear bearing in the rear
bracket, heat the rear bracket.

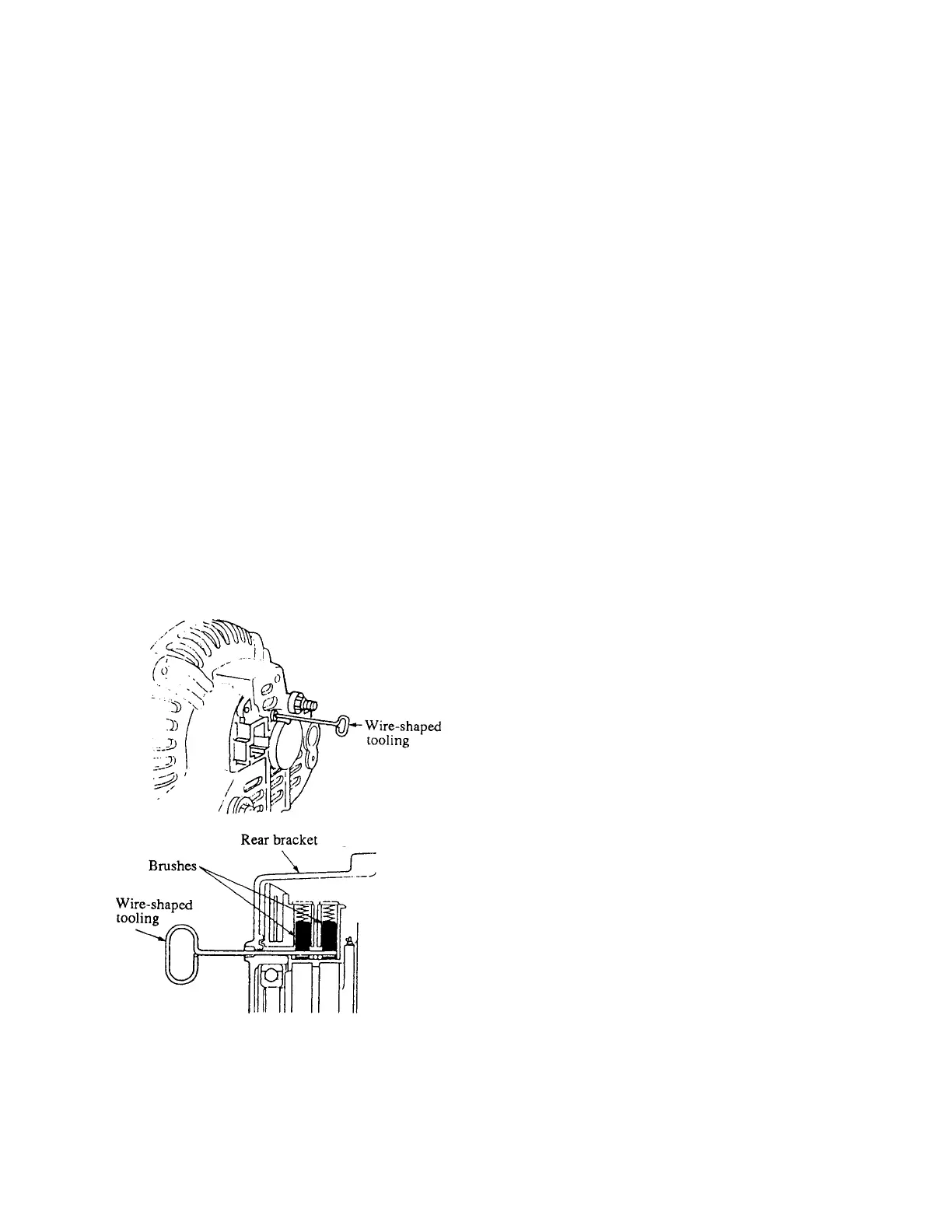

(d)Before installing the rotor in the rear
bracket, insert a wire-shaped tooling into
the hole in the rear bracket to lift the
brushes off the slip rings. Remove the
tooling after the rotor has been installed
in position.
