4 Configuration DGS-1210 series Metro Ethernet Managed Switch User Manual
112

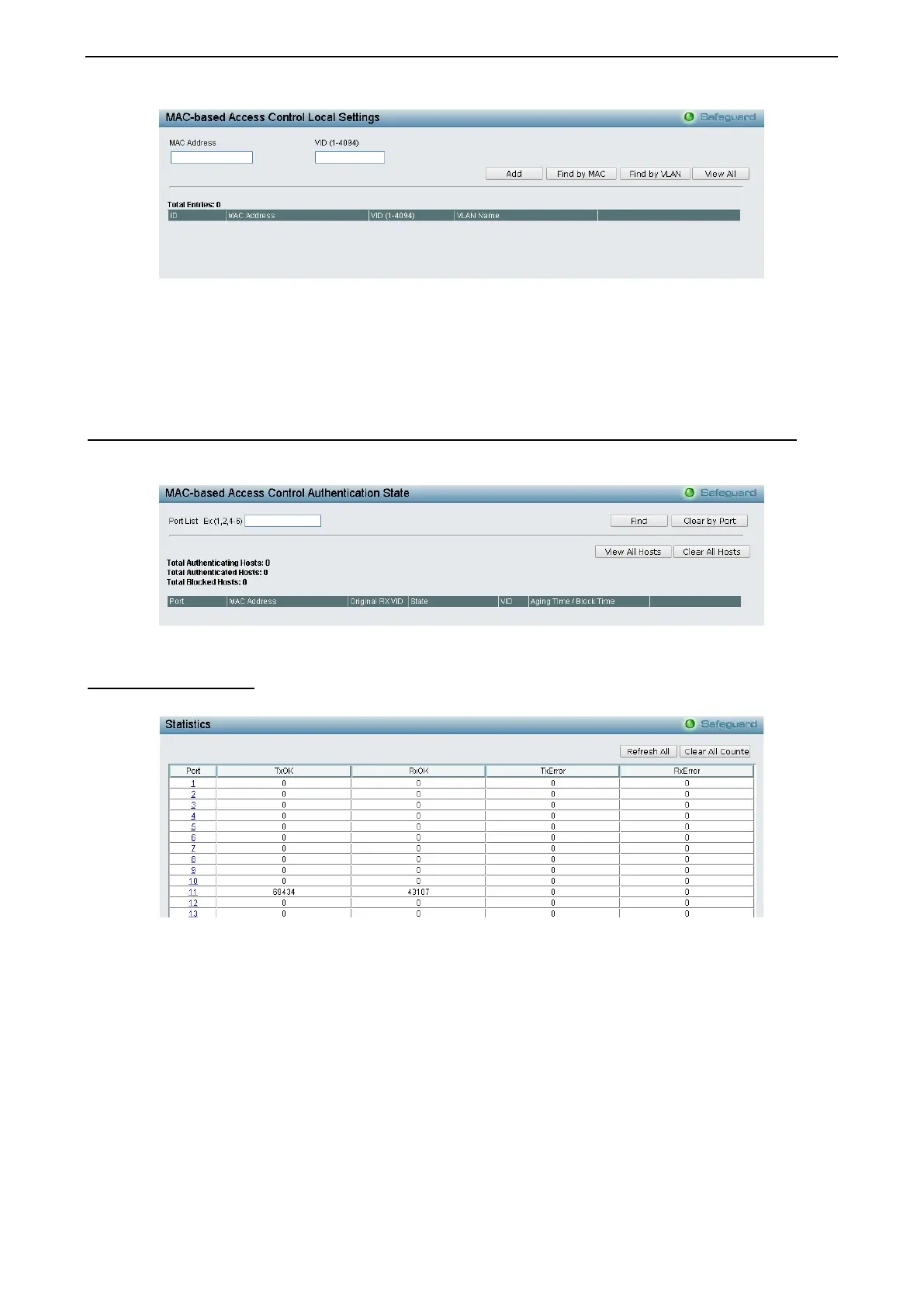

Figure 4.168 – Security > MAC-based Access Control (MAC) > MAC-based Access Control Local Settings
To add a MAC address to the local authentication list, enter the MAC address and the target VLAN ID into
their appropriate fields and click Add. To search for a specific MAC Address, enter the MAC address in the
first field and then click the Find By MAC button. To search for a specific VLAN Name, enter the VID in the
second field and then click the Find By VLAN button.
Security > MAC-based Access Control (MAC) > MAC-based Access Control Authentication State
The MAC-based Access Control Authentication State page allows user to configure the authentication state
of ports.
Figure 4.169 – Security > MAC-based Access Control (MAC) > MAC-based Access Control Authentication State
Monitoring > Statistics
The Statistics screen displays the status of each port packet count.
Figure 4.170 – Monitoring > Statistics
Refresh All: Renews the details collected and displayed.
Clear All: To reset the details displayed.
TxOK: Number of packets transmitted successfully.
RxOK: Number of packets received successfully.
TxError: Number of transmitted packets resulting in error.
RxError: Number of received packets resulting in error.
To view the statistics of individual ports, click one of the linked port numbers for details.
