4 Configuration DGS-1210 series Metro Ethernet Managed Switch User Manual
5
5
3
3
To clear all previously configured lists click the Delete All button.

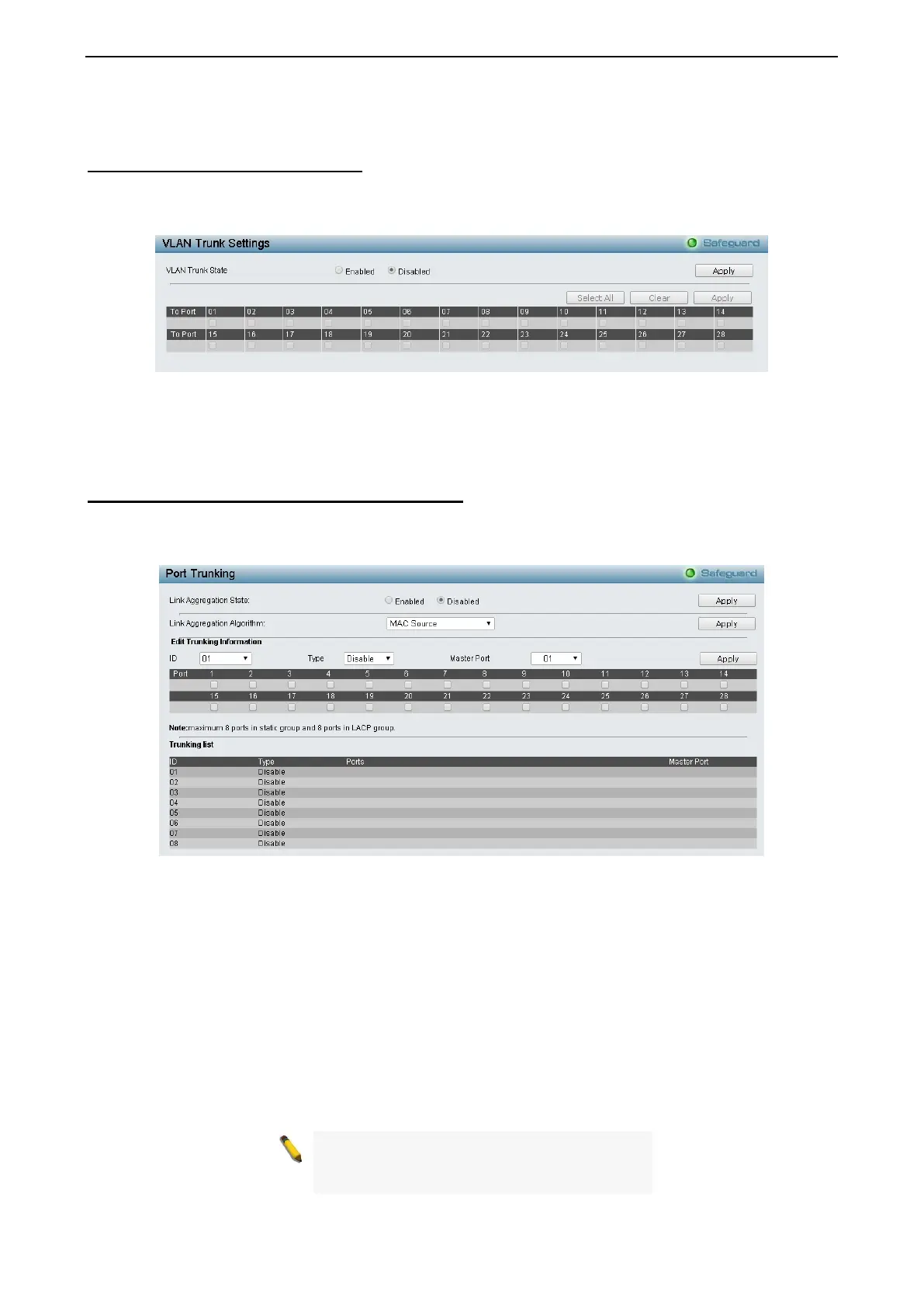

Configuration > VLAN Trunk Settings
The VLAN Trunk Settings is used to combine a number of VLAN ports together to create VLAN trunks. To
create Vlan Trunk Port settings on the Switch, enter the ports to be configured, change the state to Enabled
and click Apply, the new settings will appear in the VLAN Trunk Port Settings Table below.
Figure 4.70 - Configuration > VLAN Trunk Settings
Click Select All to check all ports or click Clear to remove ports then click Apply.
Click Apply to make the configurations take effect.
Configuration > Link Aggregation > Port Trunkings
The Port Trunkings function enables the combining of two or more ports together to increase bandwidth. Up
to eight Trunk groups may be created, and each group consists up to eight ports. Select Enabled and click
Apply to active the Link Aggregation State.
Figure 4.71 – Configuration > Link Aggregation > Port Trunkings
Link Aggregation Algorithm: Specify the algorithm to be MAC Source, MAC Destination, MAC Source
Destination, IP Source, IP Destination or IP Source Destination, and then Click Apply to make the
configurations take effect.
Edit Trunking Information:
Specify the ID, Type and Master Port then select the ports to be grouped together, and then click Apply to
activate the selected Trunking groups. Two types of link aggregation can be selected:
Static - Static link aggregation.
LACP - LACP (Link Aggregation Control Protocol) is enabled on the device. LACP allows for the
automatic detection of links in a Port Trunking Group.
Disable - Remove all members in this trunk group.
NOTE:
Each combined trunk port must be
connected to devices within the same VLAN
group.
