1 Product Introduction DGS-1210 series Metro Ethernet Managed Switch User Manual
1
1
1
1

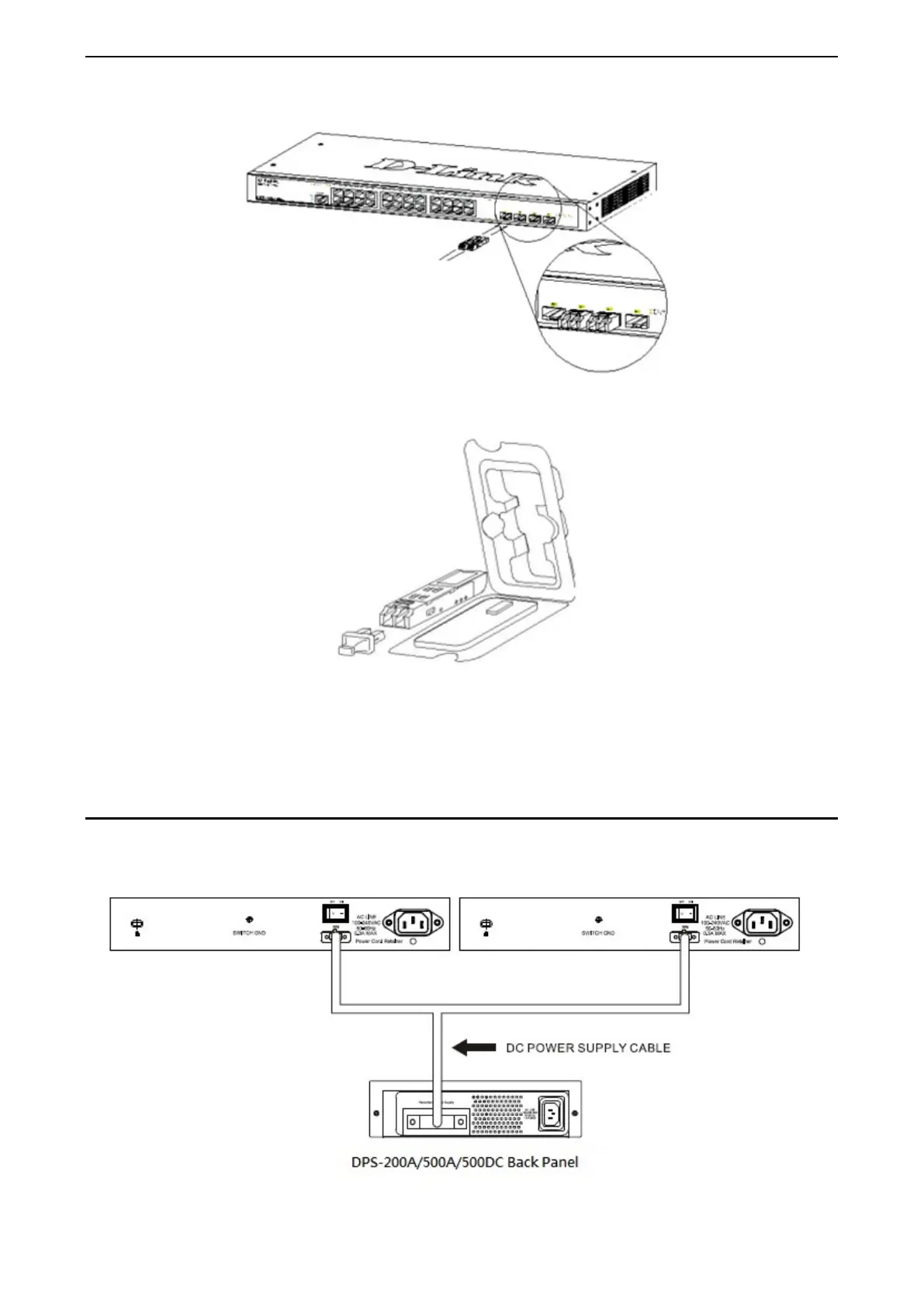

Figure 1.29 - Inserting the SFP modules into the Switch
Figure 1.30 - Installing the SFP Module
The Switch is equipped with SFP ports, which are to be used with fiber-optical transceiver cabling in order to
uplink various other networking devices for a gigabit link that may span great distances.
Connecting the DPS-200A/500A/500DC to the RPS Port (for DGS-1210-
10/12TS/20/28/28X/28XS/52/ME only)
The DPS-200A/500A/500DC redundant power supply can be connected to the RPS port of the Switch using
the DC power supply cord, called the DPS-CB150-2PS. It is important to notice that the DPS-
200A/500A/500DC can supply power to one or two DGS-1210-10/ME at the same time.
Figure 1.31 – Connecting two Switches to the DPS-200A/500A/500DC
