4 Configuration DGS-1210 series Metro Ethernet Managed Switch User Manual
60
Click Add to create a new IP Multicast Profile or click Delete All to clear all the entries.
Configuration > IGMP Snooping > Limited Multicast Range Settings
The Limited Multicast Range Settings page allows user to configure the Limited Multicast. Specify the port
range, select Access IP Type is IPv4 or IPv6 and select the Access is Deny or Permit then Click Apply to
make the configurations take effect.

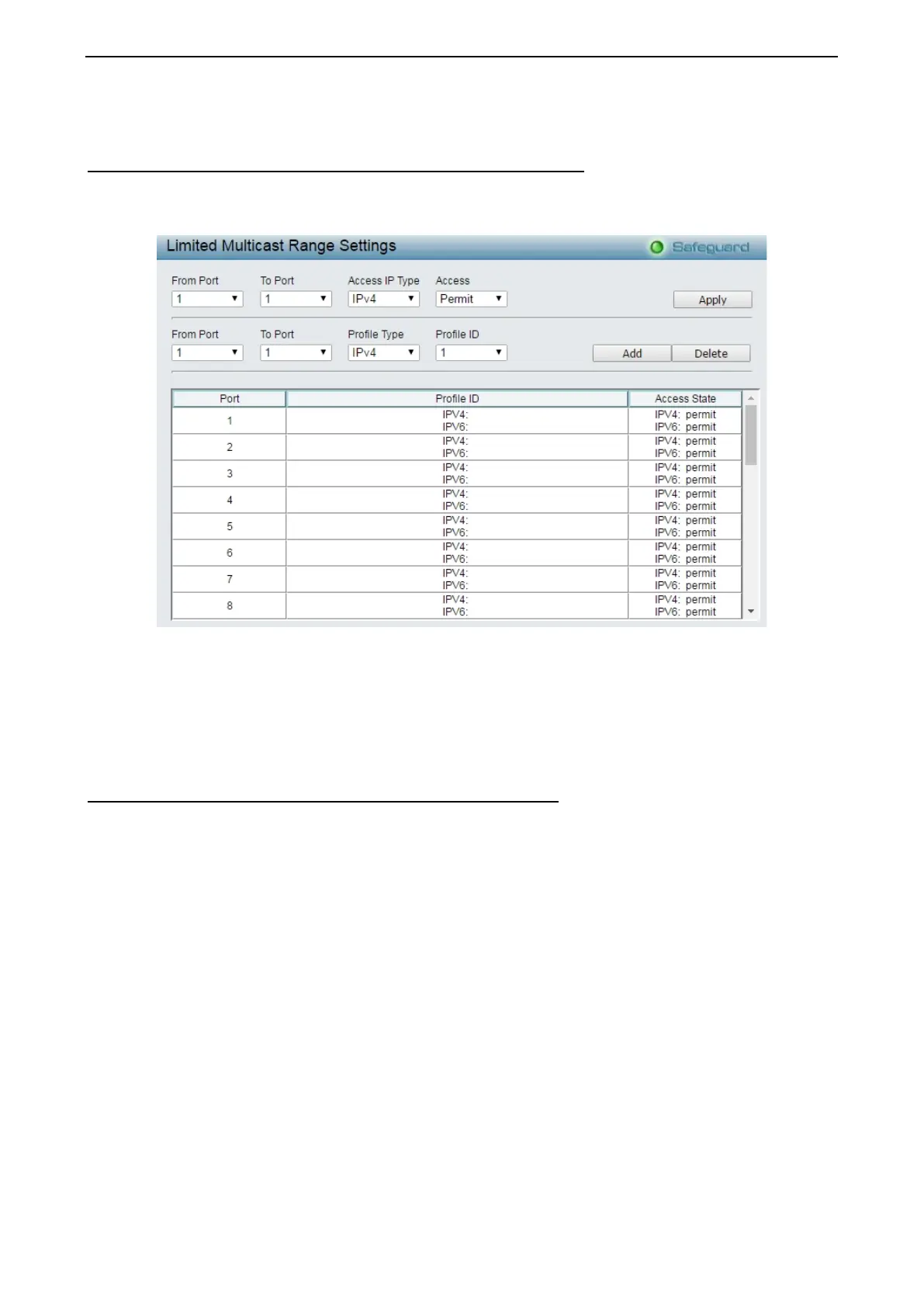

Figure 4.83- Configuration > IGMP Snooping > Limited Multicast Range Settings
From Port / To Port: Specify the port ranges to be configured.
Profile Type: Specify the profile type is IPv4 or IPv6.
Profile ID: Specify the Profile ID.
Click Add to create the Profile ID with specified ports or click Delete to remove the ports.
Configuration > IGMP Snooping > Max Multicast Group Settings
The Max Multicast Group Settings page allows user to configure the max multicast group for IGMP Snooping.
