1 Product Introduction DGS-1210 series Metro Ethernet Managed Switch User Manual
10
DGS-1210-52/ME

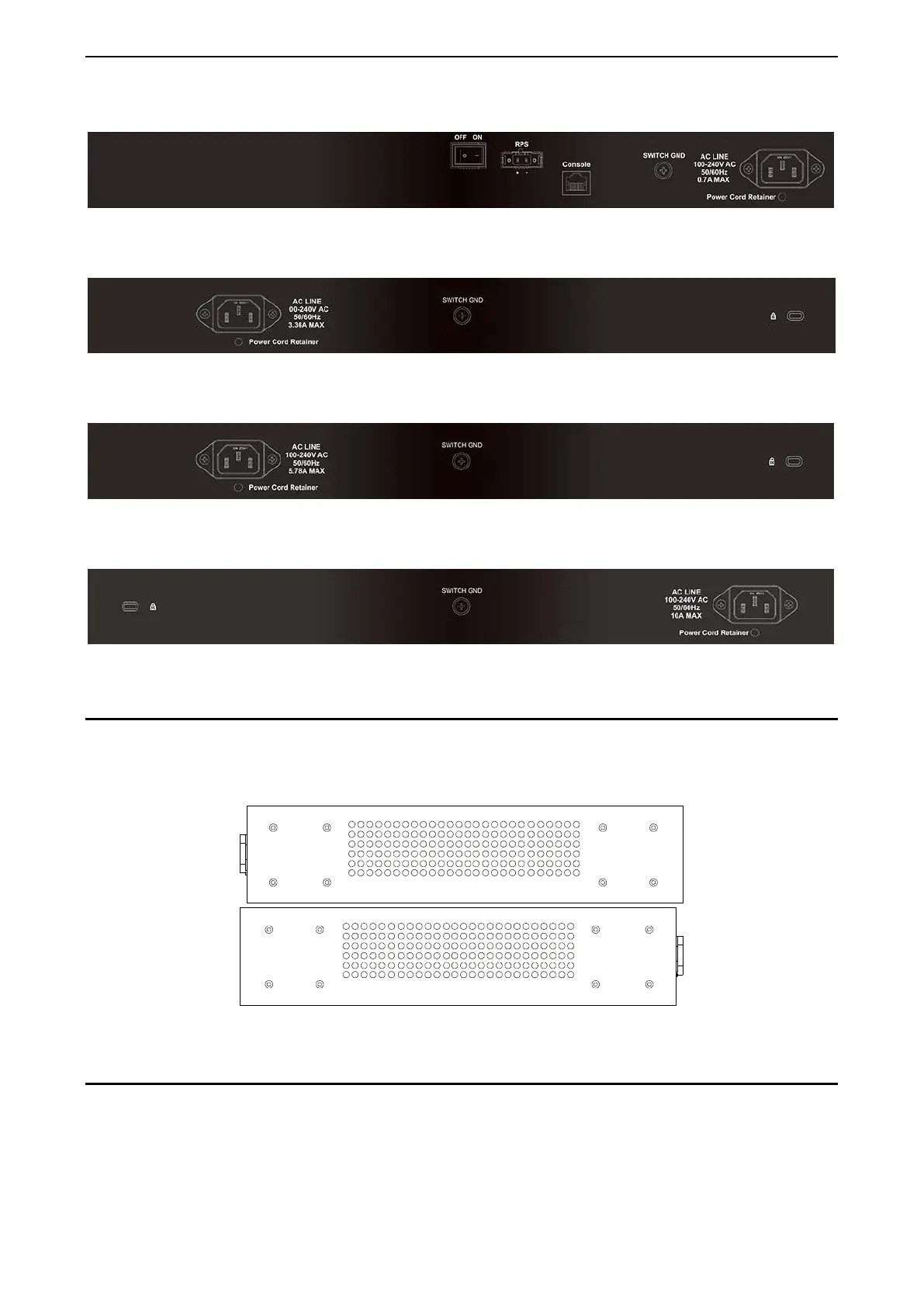

Figure 1.24
DGS-1210-52/ME Rear Panel
DGS-1210-52P/ME
Figure 1.25
DGS-1210-52P/ME Rear Panel
DGS-1210-52MP/ME
Figure 1.26
DGS-1210-52MP/ME Rear Panel
DGS-1210-52MPP/ME
Figure 1.27
DGS-1210-52MPP/ME Rear Panel
Side Panel Description
The left- and right-hand panels of the Switch have heat vents to dissipate heat. Do not block these openings,
and leave at least 6 inches of space at the rear and sides of the Switch for proper ventilation. Be reminded
that without proper heat dissipation and air circulation, system components might overheat, which could lead
to system failure.
Figure 1.28 - Side panels of the DGS-1210/ME SERIES
Gigabit Fiber Ports
The DGS-1210/ME Series features support four Small Form Factor Portable (SFP) ports (optional). See the
diagram below to view the four SFP port modules being plugged into the Switch.
