1 Product Introduction DGS-1210 series Metro Ethernet Managed Switch User Manual
8
LED Per SFP
Port
Link/Act
Green
Solid
Green
1000Mbps Ethernet connection
(or link) at any of the ports.
Green
When there is reception or
transmission (i.e. Activity—Act)
of data occurring at a 1000
Mbps
Ethernet connected port.
Amber
Solid
Light
100Mbps connection at the port.
(For DGS-1210-28XS/ME only)
Amber
When there is reception or
transmission occurring at the
port. (For DGS-1210-28XS/ME
Off
No link.
LED Per 10G
SFP+ Port
(for DGS-1210-
28X/ME,
28XS/ME)
Link/Act
Green
When there is a secure 10Gbps
connection at the port.
Green
When there is reception or
transmission occurring at the
Amber
Solid
Light
1000Mbps connection at the
Amber
When there is reception or
transmission occurring at the
Off
No link.

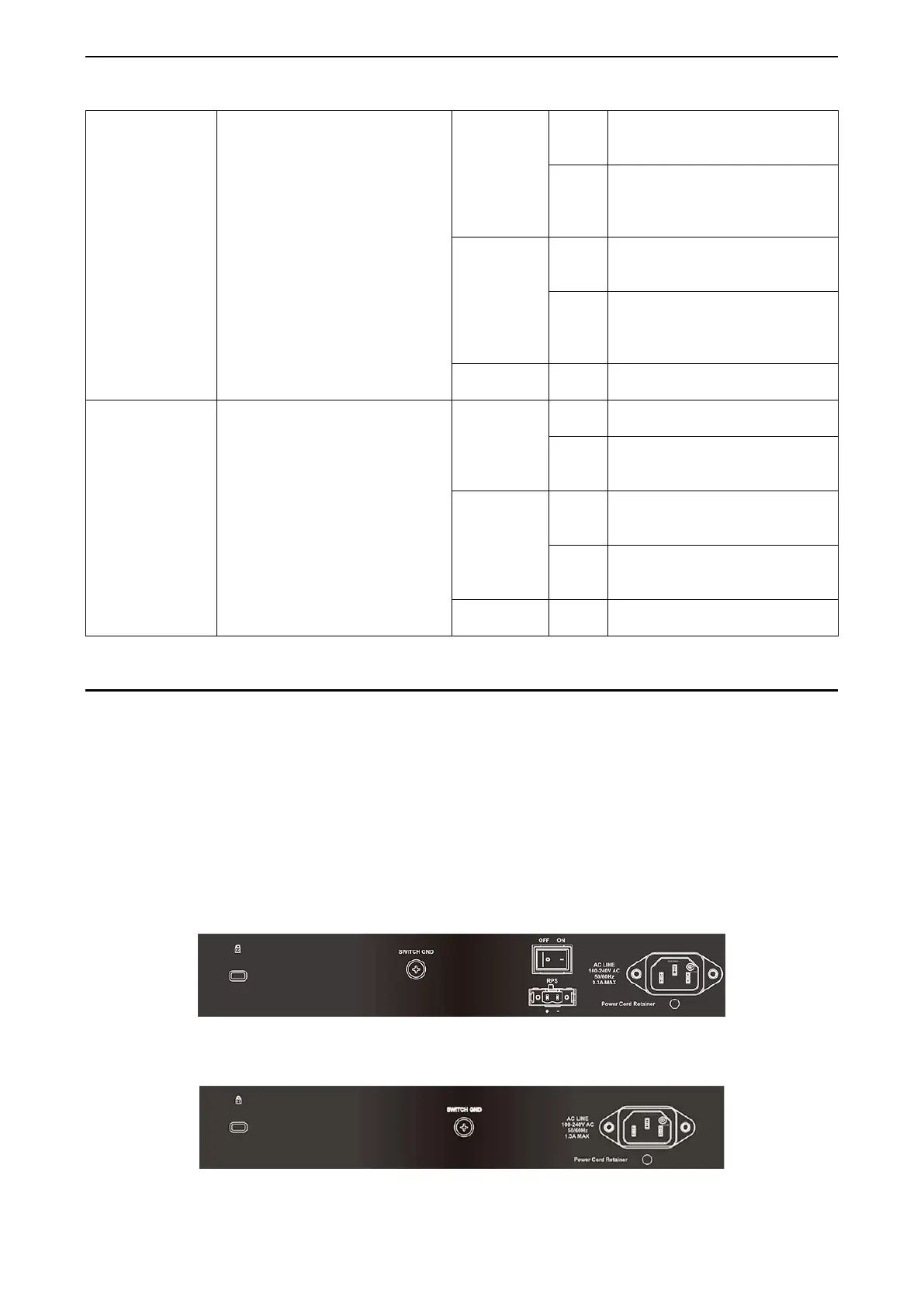

Rear Panel Description
The rear panel of the Switch contains an AC power connector. The AC power connector is a standard three-
pronged connector that supports the power cord. Plug-in the female connector of the provided power cord
into this socket, and the male side of the cord into a power outlet. The Switch automatically adjusts its power
setting to any supply voltage in the range from 100 to 240 VAC at 50 to 60 Hz. Connect the Kensington-
compatible security lock, at the rear of the switch, to a secure immovable device. Insert the lock into the
notch and turn the key to secure the lock.
The rear panel also includes an outlet for an optional external power supply and one RJ-45 console port.
When a power failure occurs, the optional external RPS will immediately and automatically assume the
power supply for the Switch.
DGS-1210-10/ME
Figure 1.15
DGS-1210-10/ME Rear Panel
DGS-1210-10P/ME
Figure 1.16
DGS-1210-10P/ME Rear Panel
