Member Ports: Enter a port or list of ports to be added to the Multicast VLAN. Member ports shall be the
untagged members of the multicast VLAN.
Tagged Member Ports: Enter a port or list of ports that will become tagged members of the Multicast VLAN.
UnTagged Source Ports: Enter a port or list of ports that will become untagged members of the Multicast
VLAN.
Source Port Dynamical Learn: Specify the source port dynamical learning to be enabled or disabled.
VLAN Name: Enter the name of the new Multicast VLAN to be created. This name can be up to 32
characters in length.
IPv4 Replace Source: This field is used to replace the source IPv4 address of incoming packets sent by the
host before being forwarded to the source port.
IPv6 Replace Source IP: This field is used to replace the source IPv6 address of incoming packets sent by
the host before being forwarded to the source port.
Source Ports: Enter a port or list of ports to be added to the Multicast VLAN. Source ports shall be the
tagged members of the multicast VLAN.
Remap Priority: Specify the remap priority (0 to 7) to be associated with the data traffic to be forwarded on
the multicast VLAN. Specify None, the packet’s original priority is used. The default setting is None.
Click Add to add the ISM VLAN which will appear in the table, or click Clear All to clear all fields.
Click Edit button to modify the parameters and update the ISM VLAN Setting or click Delete to delete the
ISM VLAN.
Click View to display the detail information of ISM VLAN.

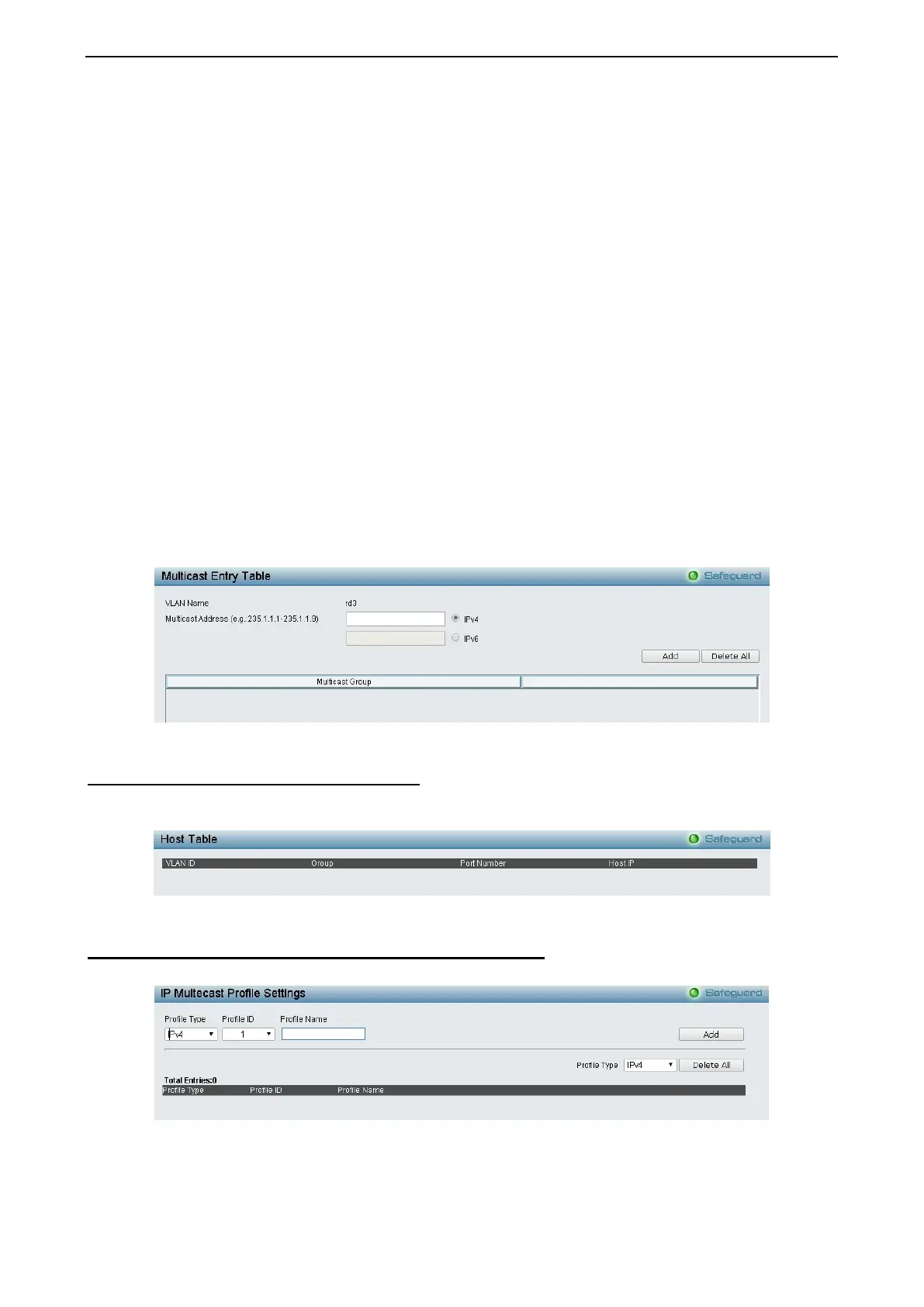

Figure 4.80 - Configuration > IGMP Snooping > ISM VLAN Settings
Configuration > IGMP Snooping > Host Table
The Host Table page displays the information of Host Table. Including VLAN ID, Group, Port Number and
Host IP.
Figure 4.81 - Configuration > IGMP Snooping > Host Table
Configuration > IGMP Snooping > IP Multicast Profile Settings
The IP Multicast Profile Settings page allows user to configure the IP Multicast Profile.
Figure 4.82 - Configuration > IGMP Snooping > IP Multicast Profile Settings
Profile ID: Specify the Profile ID.
Profile Name: Specify the Profile Name.
