4 Configuration DGS-1210 series Metro Ethernet Managed Switch User Manual
6
6
1
1

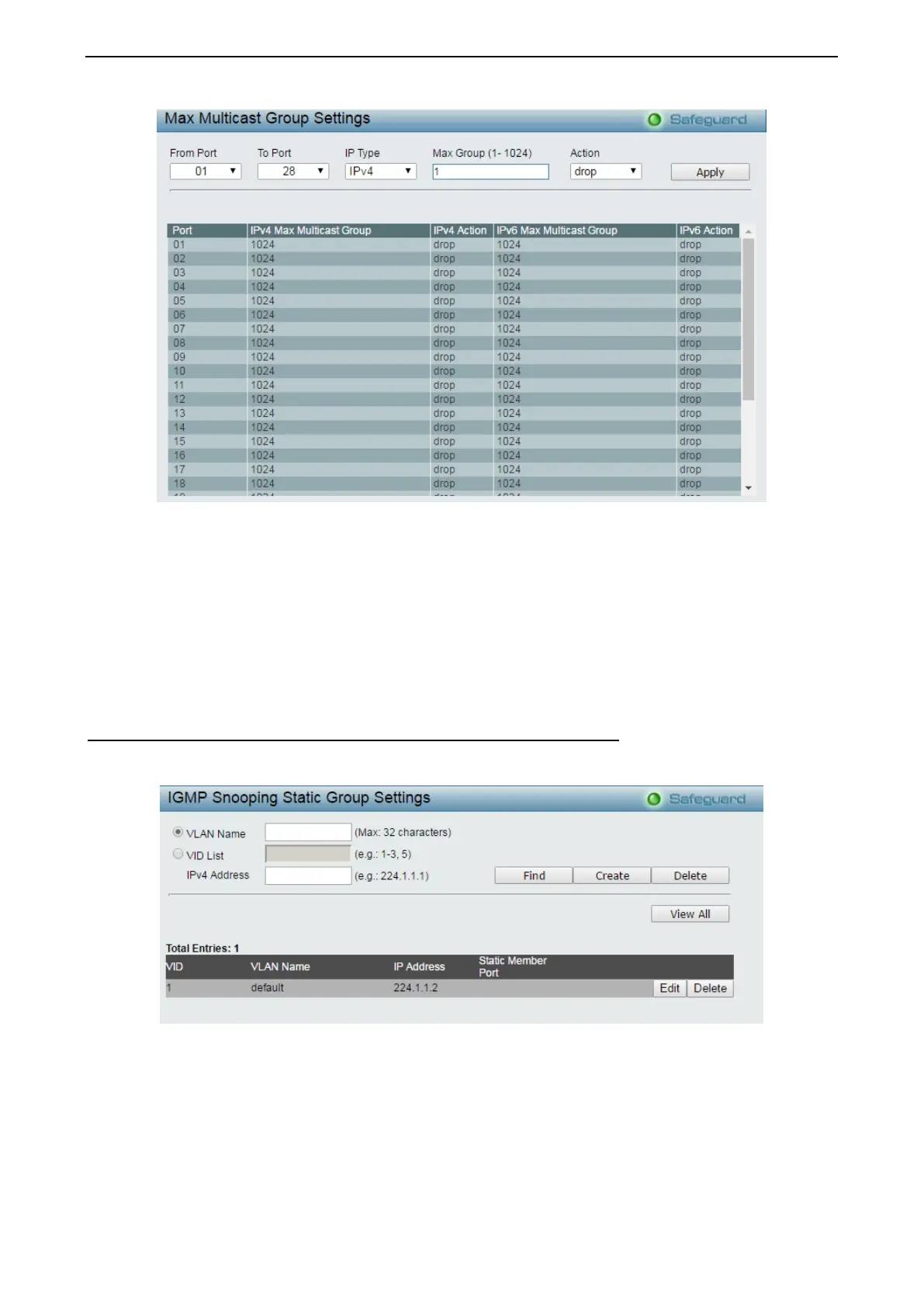

Figure 4.84- Configuration > IGMP Snooping > Max Multicast Group Settings
From Port / To Port: Specify the port ranges to be configured.
IP Type: Specify the IP type is IPv4 or IPv6.
Max Group (1-512): Specify the Max Group to be configured.
Action: Use the drop-down menu to select the appropriate action for this rule. The user can select Drop to
initiate the drop action or the user can select Replace to initiate the replace action.
Click Apply to make the configurations take effect.
Configuration > IGMP Snooping > IGMP Snooping Static Group Settings
The IGMP Snooping Static Group Settings page allows the Switch to read the Multicast Group IP address
and the corresponding MAC address from IGMP packets that pass through the Switch.
Figure 4.85- Configuration > IGMP Snooping > IGMP Snooping Static Group Settings
VLAN Name: Specifies the VLAN name of the multicast group.
VID List: Specifies the VID list or of the multicast group.
IPv4 Address: Specifies the IPv4 address.
Click the Find button to locate a specific entry based on the information entered.
Click the Create button to add a new entry based on the information entered.
