4 Configuration DGS-1210 series Metro Ethernet Managed Switch User Manual
1
1
2
2
5
5

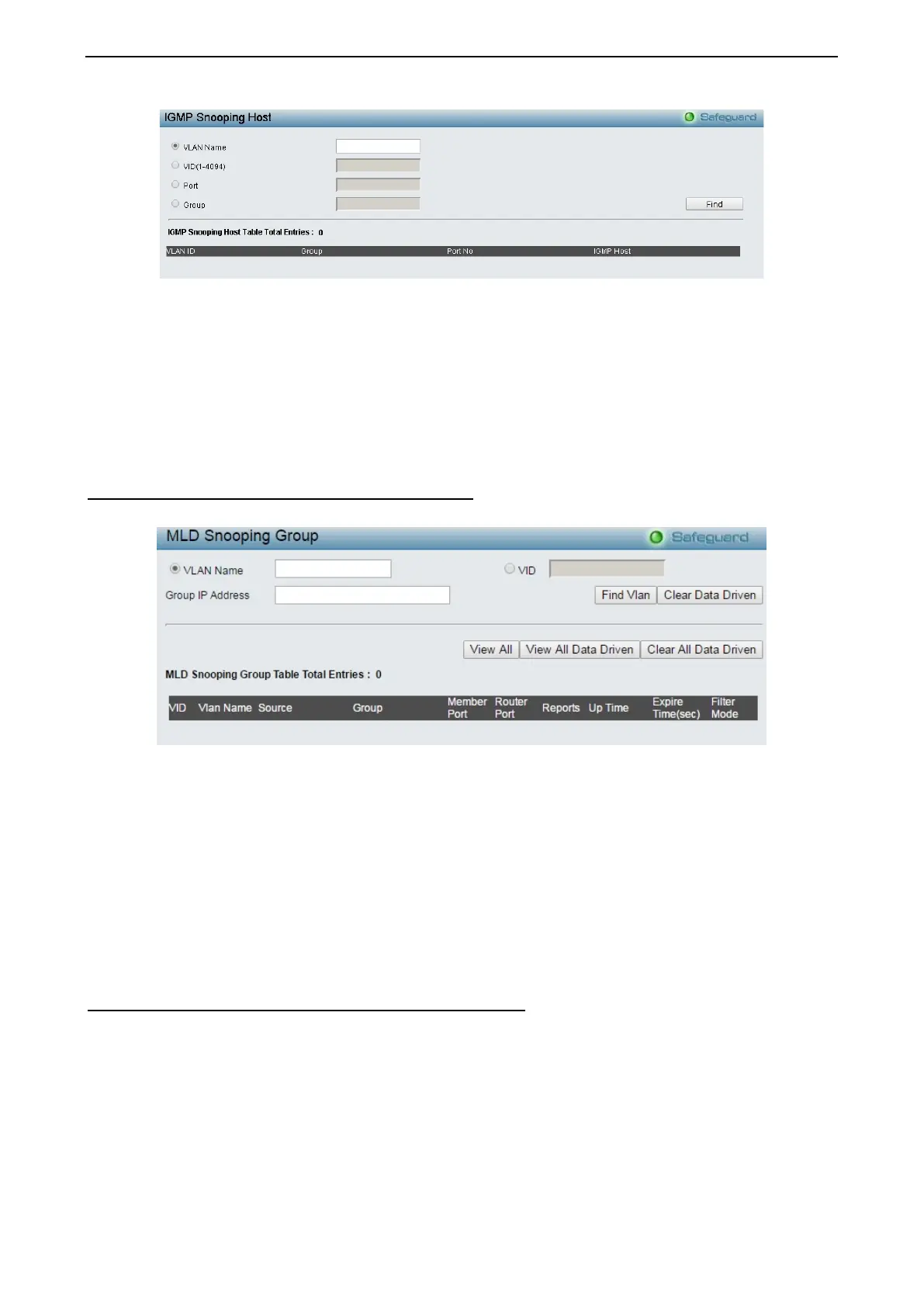

Figure 4.194 - Monitoring > IGMP Snooping > IGMP Snooping Host
VLAN Name: Specify the name of the VLAN for which to be displayed the IGMP Snooping Host information.
VID (1-4094): Specify the list of the VLAN IDs for which to be displayed the IGMP Snooping Host information.
Port: Specify the ports of IGMP Snooping Host information to be displayed.
Group: Specify the group of IGMP Snooping Host information to be displayed.
Click Find to display the information.
Monitoring > MLD Snooping > MLD Snooping Group
The MLD Snooping Group page allows user to configure the MLD Snooping group settings.
Figure 4.195 - Monitoring > MLD Snooping > MLD Snooping Group
VLAN Name: Specify the VLAN name for MLD Snooping group.
VID: Specify the VID for MLD Snooping group.
Group IP Address: Specify the IP address for the specified VLAN.
Click Find Vlan to locate a specific entry based on the information entered.
Click View All to display all the existing entries.
Click View All Data Driven to display all existing entire entries.
Click Clear All Data Driven to clear data driven information for all entries.
Monitoring > Port Access Control > RADIUS Authentication
This table contains information concerning the activity of the RADIUS authentication client on the client side
of the RADIUS authentication protocol. It has one row for each RADIUS authentication server that the client
shares a secret with.
