4 Configuration DGS-1210 series Metro Ethernet Managed Switch User Manual
4
4
7
7

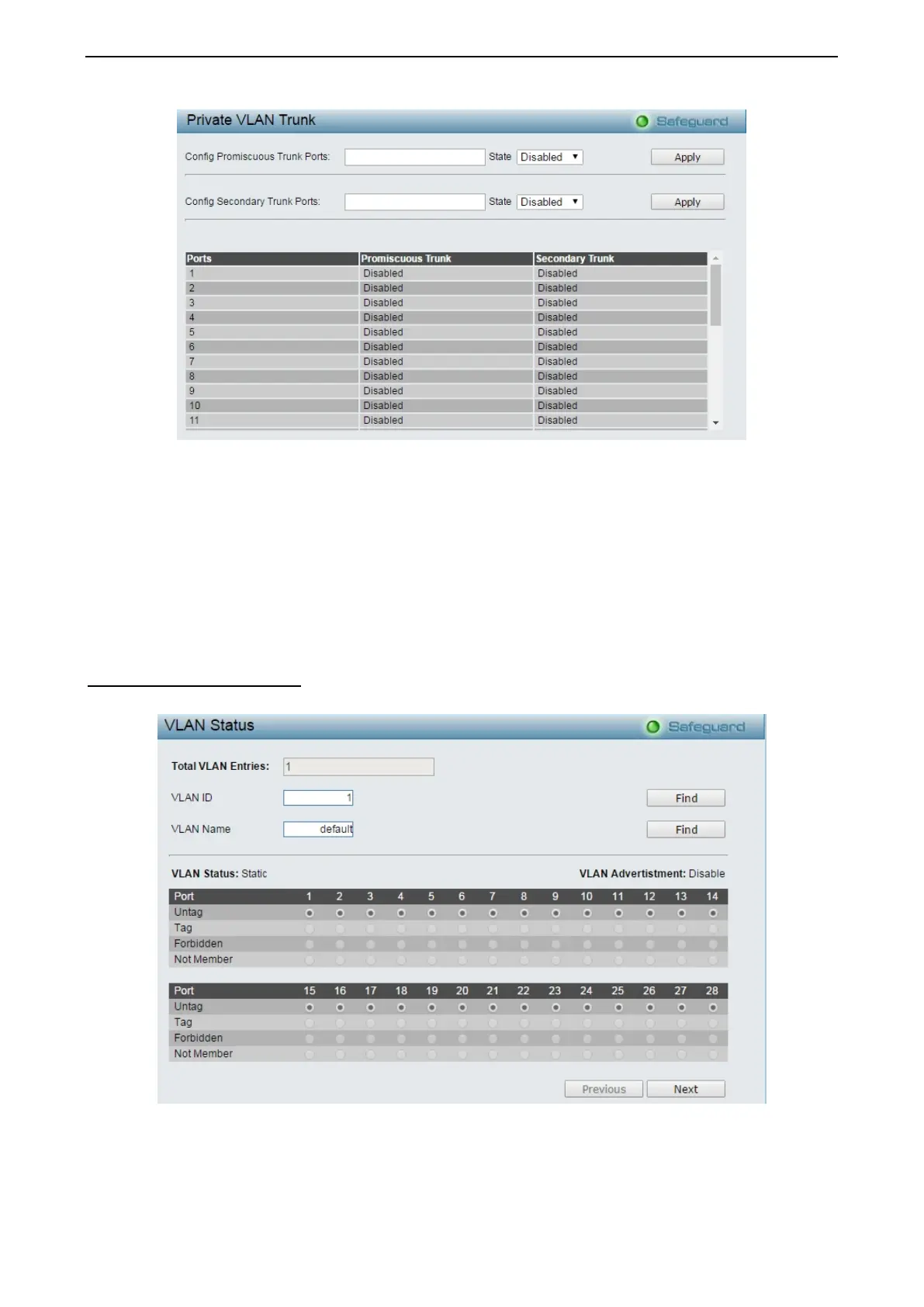

Figure 4.60 - Configuration > Private VLAN > Private VLAN Trunk
Config Promiscuous Trunk Ports: To specify the promiscuous trunk ports to the specified private VLAN to
be enabled or disabled. A promiscuous port belongs to the primary VLAN and can communicate with all
interfaces, including the community and isolated host ports and private VLAN trunk ports that belong to the
secondary VLANs associated with the primary VLAN.
Config Secondary Trunk Ports: To specify the secondary trunk ports to the specified private VLAN to be
enabled or disabled.
Click Apply to make the configurations take effect.
Configuration > VLAN Status
The VLAN Status page is for user to search the VLAN which has already existed on the Switch.
Figure 4.61 - Configuration > VLAN Status
Enter the VLAN ID or VLAN Name then click Find to show the existed VLAN.
