Port: Specifies the port to be configured.
Type: Specifies the type for the operating parameter, the options are High Alarm, Low Alarm, High Warning
and Low Warning.
High Alarm: Specifies the high threshold for the alarm. When the TX power threshold rises above
the configured value, the action associated with the alarm is taken.
Low Alarm: Specifies the low threshold for the alarm. When the TX power threshold falls below the
configured value, the action associated with the alarm is taken.
High Warning: Specifies the high threshold for the warning. When the TX power threshold rises
above the configured value, the action associated with the warning is taken.
Low Warning: Specifies the low threshold for the warning. When the TX power threshold falls below
the configured value, the action associated with the warning is taken.
Vaule (0 – 6.5535): Specifies the value for the specified type of port.
Click Apply to make the configurations take effect.
Configuration > DDM > DDM RX Power Threshold Settings
The DDM RX Power Threshold Settings page is used to configure the threshold of RX power for specific
ports on the Switch.

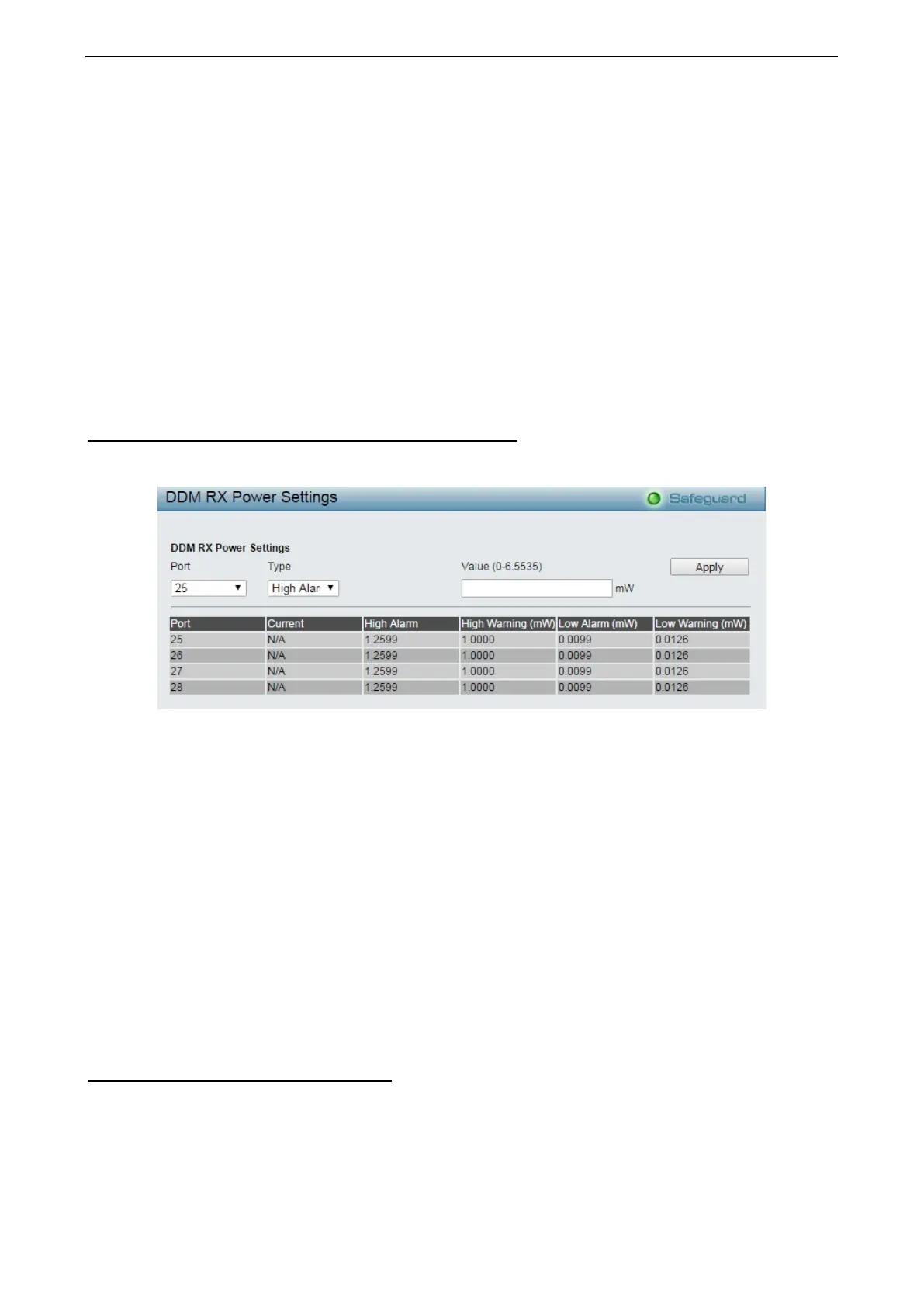

Figure 4.110 - Configuration > DDM > DDM RX Power Threshold Settings
Port: Specifies the port to be configured.
Type: Specifies the type for the operating parameter, the options are High Alarm, Low Alarm, High Warning
and Low Warning.
High Alarm: Specifies the high threshold for the alarm. When the RX power threshold rises above
the configured value, the action associated with the alarm is taken.
Low Alarm: Specifies the low threshold for the alarm. When the RX power threshold falls below the
configured value, the action associated with the alarm is taken.
High Warning: Specifies the high threshold for the warning. When the RX power threshold rises
above the configured value, the action associated with the warning is taken.
Low Warning: Specifies the low threshold for the warning. When the RX power threshold falls below
the configured value, the action associated with the warning is taken.
Vaule (0 – 6.5535): Specifies the value for the specified type of port.
Click Apply to make the configurations take effect.
Configuration > DDM > DDM Status Table
The DDM Status Table page displays the current operating digital diagnostic monitoring parameters and their
values on the SFP module for specified ports.
