4 Configuration DGS-1210 series Metro Ethernet Managed Switch User Manual
142

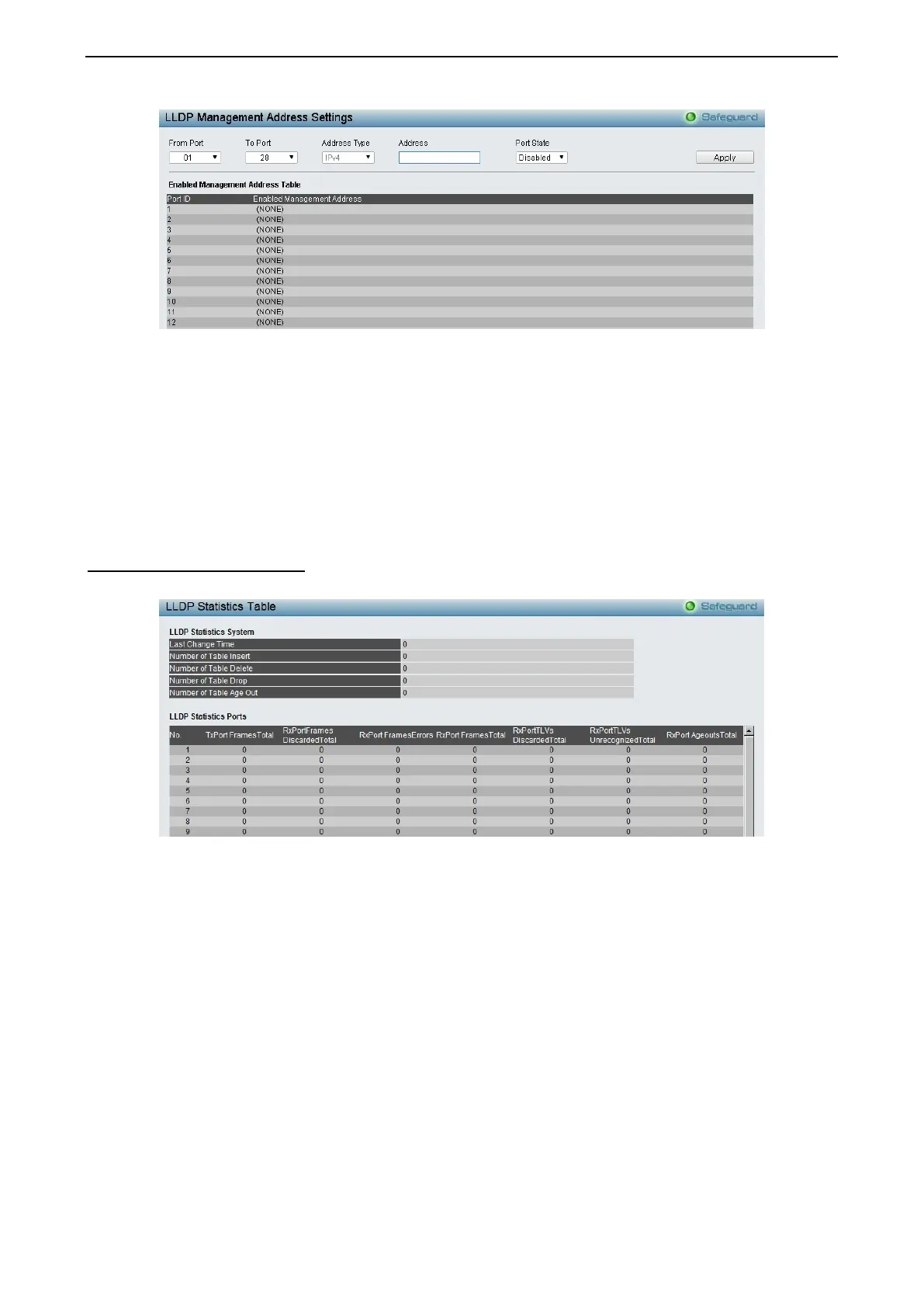

Figure 4.219 – LLDP > LLDP Management Address Settings
From Port/To Port: A consecutive group of ports may be configured starting with the selected port.
Address Type: Specify the LLDP address type on the port. The value is always IPv4.
Address: Specify the address.
Port State: Specify whether the Port State is enabled n the port. The possible field values are:
Enabled – Enables the port state configured on the port.
Disabled – Disables the port state configured on the port.
Click Apply to make the configurations take effect.
LLDP > LLDP Statistics Table
The LLDP Statistics page displays an overview of all LLDP traffic.
Figure 4.220 – LLDP > LLDP Statistics Table
The following information can be viewed:
LLDP Statistics System: Displays the counters that refer to the whole switch.
Last Change Time – Displays the time for when the last change entry was last deleted or added. It
is also displays the time elapsed since last change was detected.
Number of Table Insert – Displays the number of new entries inserted since switch reboot.
Number of Table Delete – Displays the number of new entries deleted since switch reboot.
Number of Table Drop – Displays the number of LLDP frames dropped due to that the table was
full.
Number of Table Age Out – Displays the number of entries deleted due to Time-To-Live expiring.
LLDP Port Statistics: Displays the counters that refer to the ports.
TxPort FramesTotal – Displays the total number of LLDP frames transmitted on the port.
RxPort FramesDiscarded – Displays the total discarded frame number of LLDP frames received on
the port.
RxPort FramesErrors – Displays the Error frame number of LLDP frames received on the port.
