Danfoss VLT AQUA FC 202 Design Guide

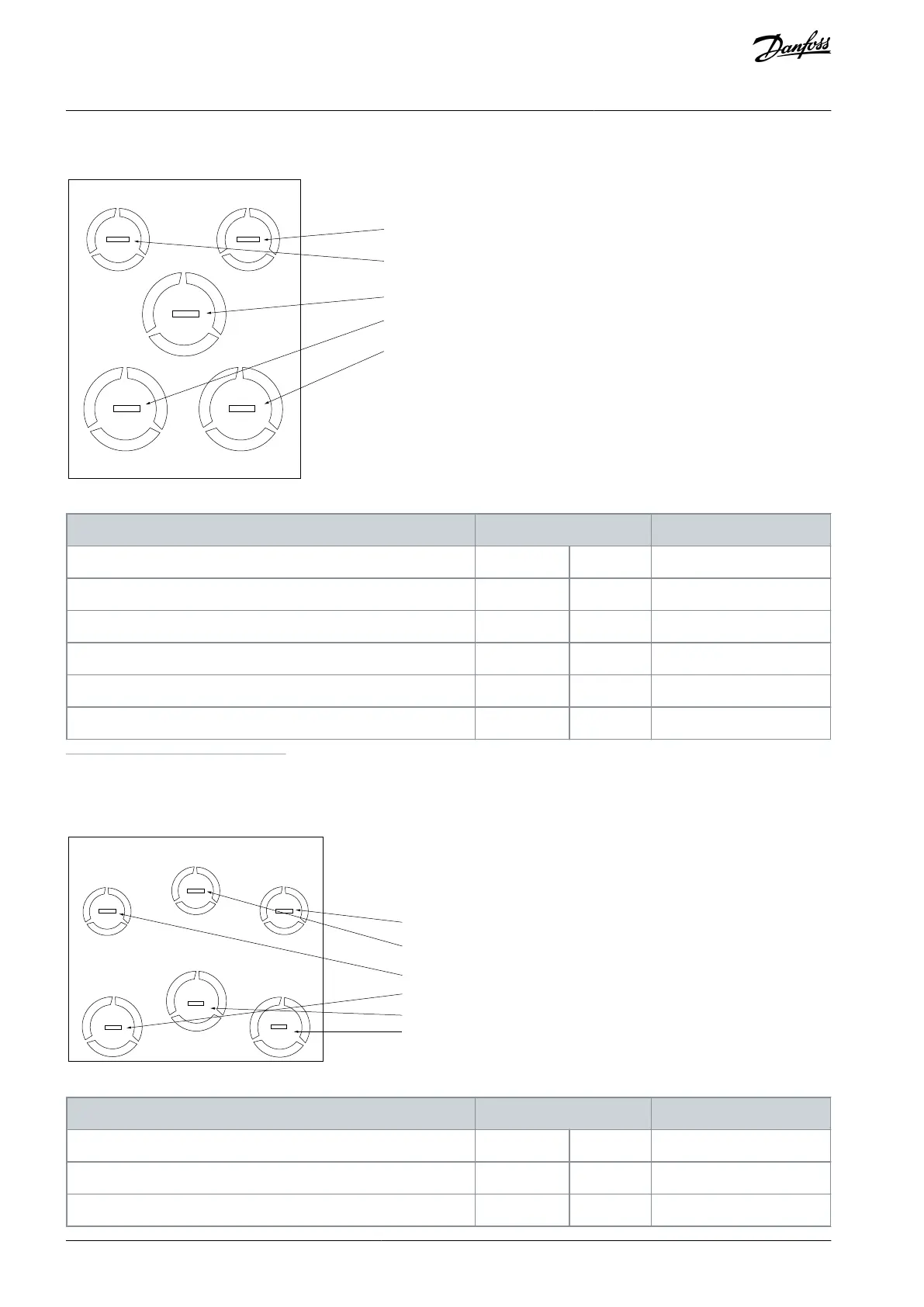

10.4.3.1 Entry Holes, Enclosure Size A2, IP21
[4]
[5]
[1]
[3]
[2]
e30bb656.10
Table 47: Dimensions of Entry Holes for Enclosure Size A2, IP21
Hole number and recommended use
Dimensions
(1)
Nearest metric
UL [in]
[mm]
1) Mains
3/4
28.4
M25
2) Motor
3/4
28.4
M25
3) Brake/loadsharing
3/4
28.4
M25
4) Control cable
1/2
22.5
M20
5) Control cable
1/2
22.5
M20
1
Tolerance ±0.2 mm.
10.4.3.2 Entry Holes, Enclosure Size A3, IP21
[4]
[5]
[6]
[1]
[3]
[2]
e30bb657.10
Table 48: Dimensions of Entry Holes for Enclosure Size A3, IP21
Hole number and recommended use
Dimensions
(1)
Nearest metric
UL [in]
[mm]
1) Mains
3/4
28.4
M25
2) Motor
3/4
28.4
M25
AJ300847815559en-000101 / 130R0337114 | Danfoss A/S © 2020.09
Electrical Installation
Considerations
VLT® AQUA Drive FC 202
Design Guide
