Danfoss VLT AQUA FC 202 Design Guide

4.3.5 Star/Delta Starter or Soft Starter not Required
When larger motors are started, it is necessary in many countries to use equipment that limits the start-up current. In more tradi-
tional systems, a star/delta starter or soft starter is widely used. Such motor starters are not required if a drive is used.
As shown in the following illustration, a drive does not consume more than rated current.
F ull load
% F ull load cur r en t
& speed
500
100
0
0
12,5 25 37,5 50H z
200
300
400
600
700
800
4
3
2
1
e75ha227.10

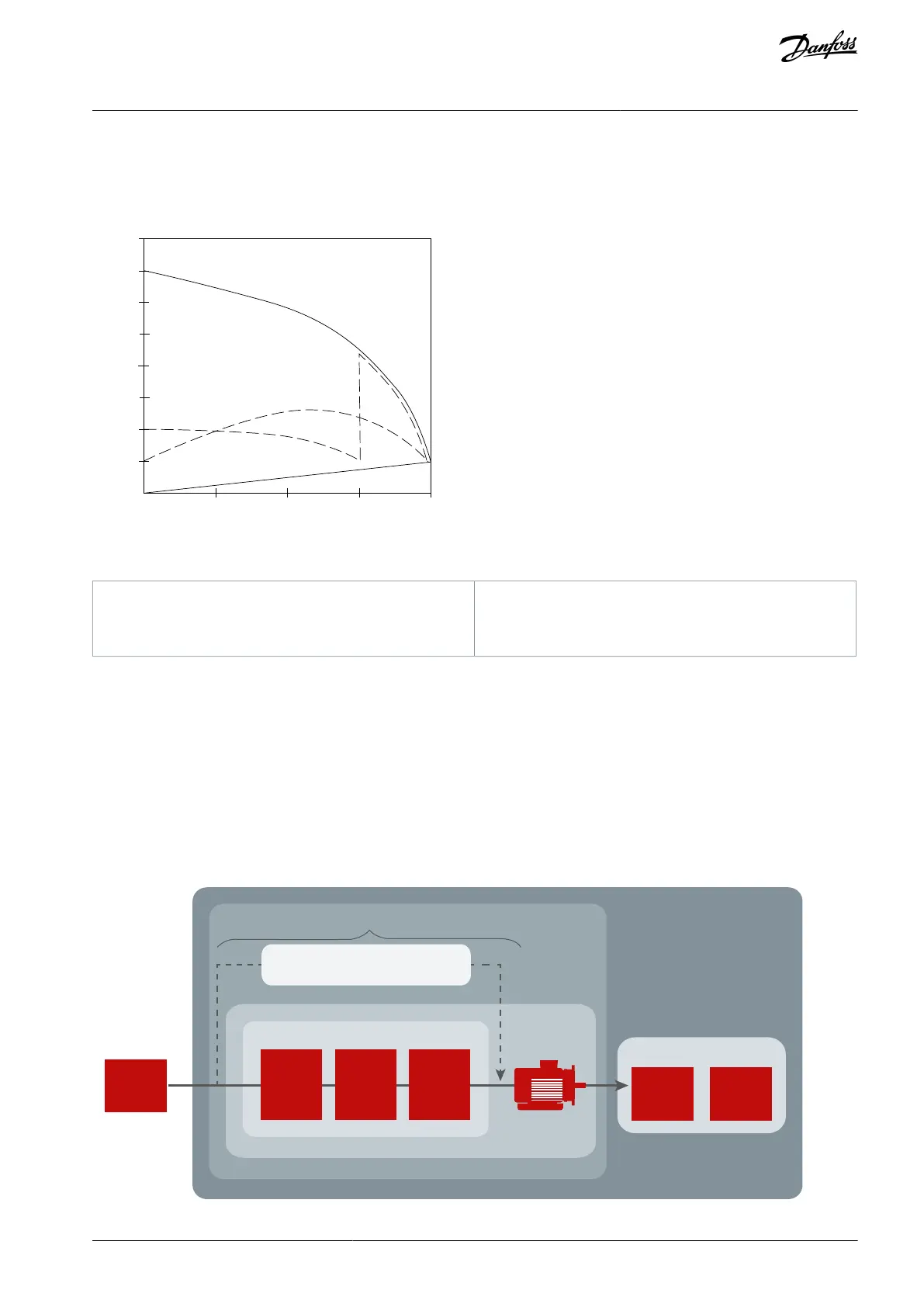

Illustration 13: Start-up Current
1
VLT AQUA DriveFC 202
2
Star/delta starter
3
Soft starter
4
Start directly on mains
4.4 Power Drive Systems
4.4.1 Ecodesign for Power Drive Systems
The Ecodesign Directive is the legislative framework that sets requirements on all energy-related products in the domestic, commer-
cial, and industrial sectors throughout Europe.
The Ecodesign requirements are only mandatory within the European Union. These requirements are like the legislative require-
ments for energy-related products which apply in North America and Australia.
Terms like Complete Drive Module (CDM) and Power Drive Systems (PDS) are used to dene the elements in the design. The objec-
tive is to make more ecient and fewer energy consuming designs.
The CDM contains the drive controller as well as auxiliary devices and input components.
Mains &
cabling
Transmis-
sion
Load-
Machine
Driven Equipment
Extended Product
Motor System
Vollständiges Antriebsgerät (CDM)
Motor Starter
(Contactor, Softstarter,…)
Motor control equipment = CDM or starter
Feeding
section
Auxiliaries
Basic
Drive
Module
(BDM)
Complete Drive Module (CDM)
Power Drive System (PDS)
e30bu372.10
Illustration 14: Drive System Design
AJ300847815559en-000101 / 130R0337 | 27Danfoss A/S © 2020.09
Product Family Overview
VLT® AQUA Drive FC 202
Design Guide
