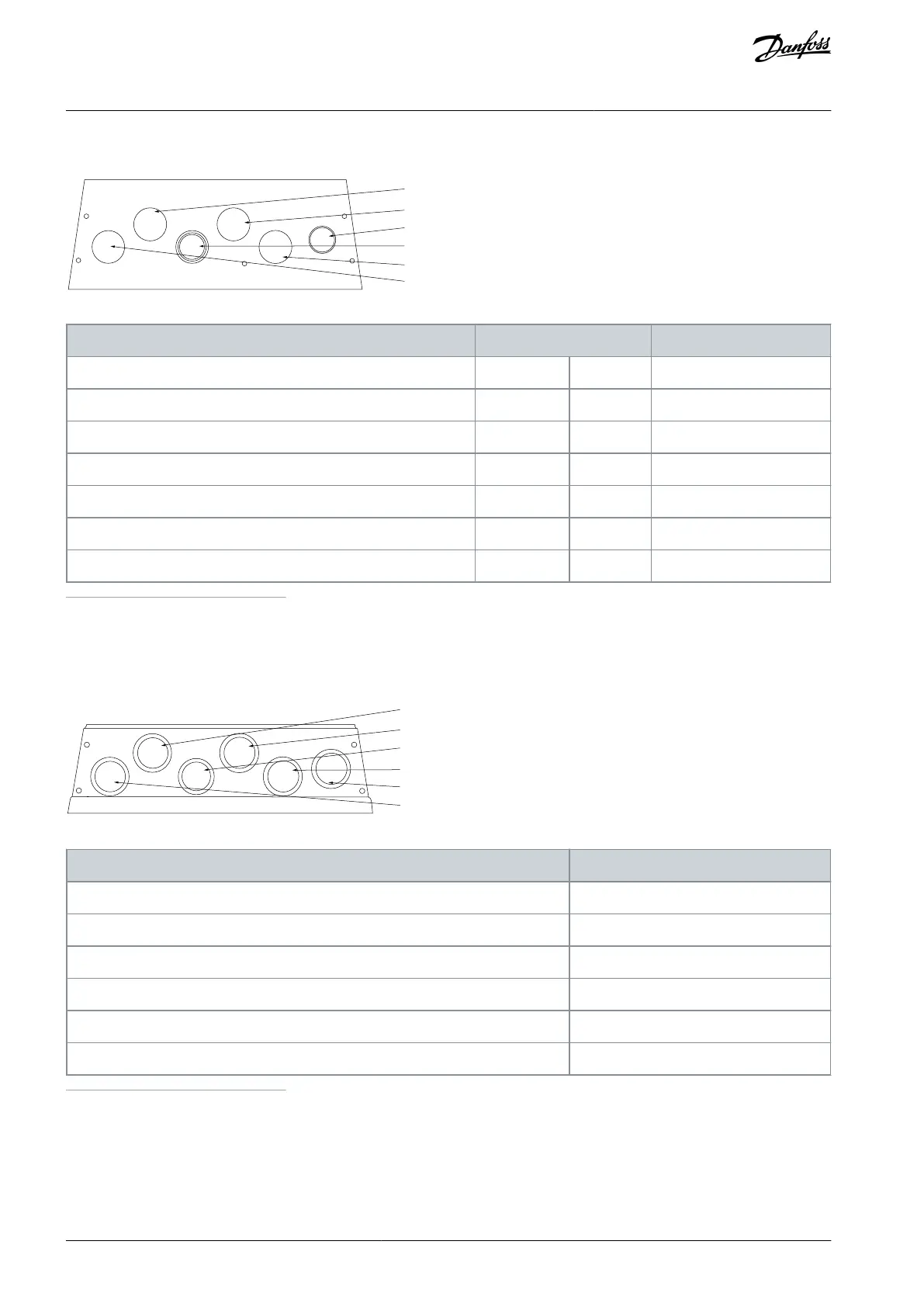

10.4.3.5 Entry Holes, Enclosure Size A5, IP55
[3]
[4]
[5]
[6]
[2]
[1]
e30bb664.10
Table 51: Dimensions of Entry Holes for Enclosure Size A5, IP55
Hole number and recommended use
Dimensions
(1)
Nearest metric
UL [in]
[mm]
1) Mains
3/4
28.4
M25
2) Motor
3/4
28.4
M25
3) Brake/loadsharing
3/4
28.4
M25
4) Control cable
3/4
28.4
M25
5) Control cable
(2)
3/4
28.4
M25
6) Control cable
(2)
3/4
28.4
M25
1
Tolerance ±0.2 mm.
2
Knockout hole.
10.4.3.6 Entry Holes, Enclosure Size A5, IP55 Threaded Gland Holes
[4]
[5]
[3]
[6]
[2]
[1]
e30bb666.10
Table 52: Dimensions of Entry Holes for Enclosure Size A5, IP55 Threaded Gland Holes
Hole number and recommended use
Metric thread size
1) Mains
M25
2) Motor
M25
3) Brake/loadsharing
28.4 mm
(1)
4) Control cable
M25
5) Control cable
M25
6) Control cable
M25
1
Knockout hole
