Danfoss VLT AQUA FC 202 Design Guide

•
•
•
12 Basic I/O Congurations
12.1 Application Examples
The examples in this section are intended as a quick reference for common applications.
Parameter settings are the regional default values unless otherwise indicated (selected in parameter 0-03 Regional Settings).
Parameters associated with the terminals and their settings are shown next to the drawings.
Required switch settings for analog terminals A53 or A54 are also shown.
12.1.1 Wiring Conguration for Automatic Motor Adaptation (AMA)

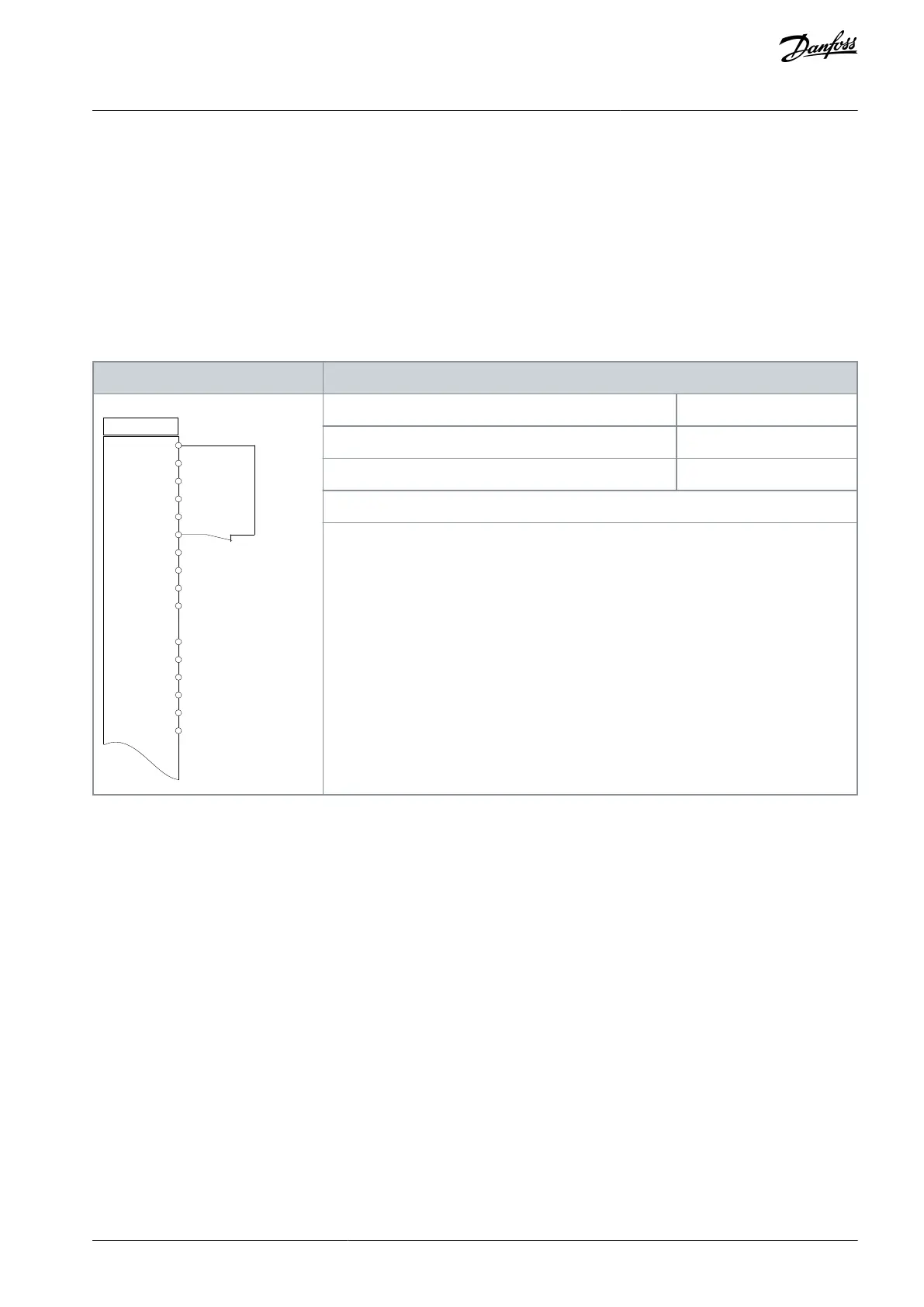

Table 103: Wiring Conguration for AMA with T27 Connected
Parameters
+24 V
+24 V
D IN
D IN
D IN
COM
D IN
D IN
D IN
D IN
+10 V
A IN
A IN
COM
A OUT
COM
12
13
18
19
20
27
29
32
33
37
50
53
54
55
42
39
e30bb929.11
Drive
Function
Setting
Parameter 1-29 Automatic Motor Adaptation (AMA)
[1] Enable complete AMA
Parameter 5-12 Terminal 27 Digital Input
[2]* Coast inverse
*=Default value
Notes/comments:
Set parameter group 1-2* Motor Data according to motor nameplate.
AJ300847815559en-000101 / 130R0337 | 165Danfoss A/S © 2020.09
Basic I/O Congurations
VLT® AQUA Drive FC 202
Design Guide
