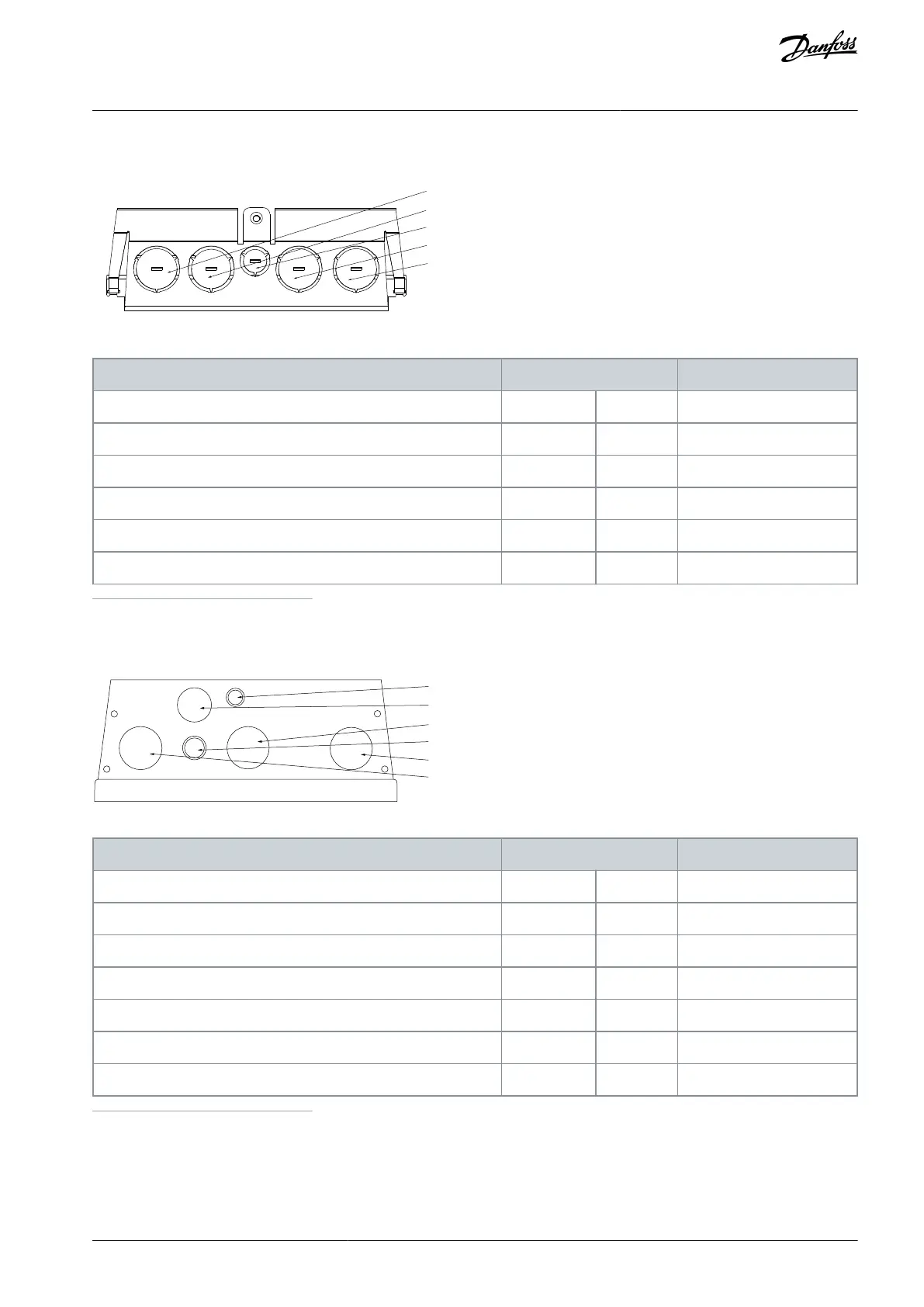

10.4.3.7 Entry Holes, Enclosure Size B1, IP21
[1]
[4]
[5]
[3]
[2]
e30bb659.11
Table 53: Dimensions of Entry Holes for Enclosure Size B1, IP21
Hole number and recommended use
Dimensions
(1)
Nearest metric
UL [in]
[mm]
1) Mains
1
34.7
M32
2) Motor
1
34.7
M32
3) Brake/loadsharing
1
34.7
M32
4) Control cable
1
34.7
M32
5) Control cable
1/2
22.5
M20
1
Tolerance ±0.2 mm.
10.4.3.8 Entry Holes, Enclosure Size B1, IP55
[5]
[4]
[3]
[6]
[2]
[1]
e30bb667.10
Table 54: Dimensions of Entry Holes for Enclosure Size B1, IP55
Hole number and recommended use
Dimensions
(1)
Nearest metric
UL [in]
[mm]
1) Mains
1
34.7
M32
2) Motor
1
34.7
M32
3) Brake/loadsharing
1
34.7
M32
4) Control cable
3/4
28.4
M25
5) Control cable
1/2
22.5
M20
6) Control cable
(2)
1/2
22.5
M20
1
Tolerance ±0.2 mm.
2
Knockout hole.
AJ300847815559en-000101 / 130R0337 | 117Danfoss A/S © 2020.09
